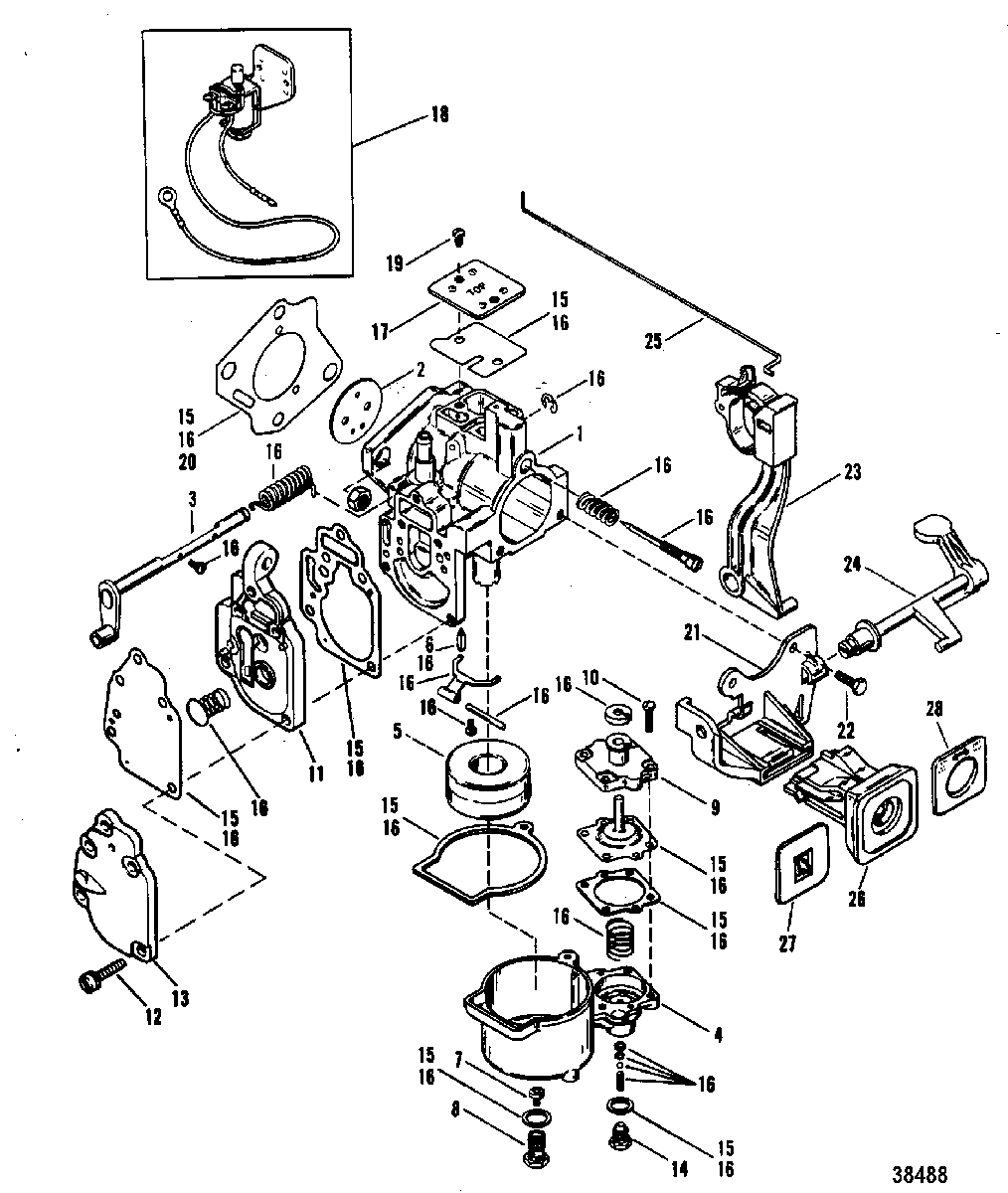

CARBURETOR(WMC-13/13A/14/14A/15/15A/16/16A) для Mercury - 18XD 9378151 THRU 9507380

  • №
    Артикул
    Название
  • 1
    1390-8888A16 CARBURETOR
    (20-MANUAL-WMC13A)
    CARBURETOR
    (20-MANUAL-WMC13A)
  • 1
    1390-8888A16 CARBURETOR
    (20-ELECTRIC-WMC14A)
    CARBURETOR
    (20-ELECTRIC-WMC14A)
  • 1
    1390-8889A20 CARBURETOR
    (25-MANUAL-WMC15A)
    CARBURETOR
    (25-MANUAL-WMC15A)
  • 1
    766-848389A4 PISTON ASSEMBLY
    (25-ELECTRIC-WMC16A)
    PISTON ASSEMBLY
    (25-ELECTRIC-WMC16A)
  • 2
    1395-9640 VALVE, Throttle
    (20)
    VALVE, Throttle
    (20)
  • 2
    1395-9646 VALVE, Throttle
    (25)
    VALVE, Throttle
    (25)
  • 3
    1395-9695 SHAFT, Throttle
    (WMC-13/14/15/16)
    SHAFT, Throttle
    (WMC-13/14/15/16)
  • 3
    1395-9695 SHAFT, Throttle
    (WMC-13A/14A15A/16A)
    SHAFT, Throttle
    (WMC-13A/14A15A/16A)
  • 4
    1395-9164 BOWL, Fuel
    BOWL, Fuel
  • 5
    1395-91691 FLOAT
    FLOAT
  • 6
    1395-803861 VALVE, INLET NEEDLE
    VALVE, INLET NEEDLE
  • 7
    1399-5317 JET, (.046), MAIN FUEL
    (20)
    JET, (.046), MAIN FUEL
    (20)
  • 7
    1395-6201 JET, (.080)
    (25)
    JET, (.080)
    (25)
  • 8
    1395-9171 PLUG, JET RETAINER
    PLUG, JET RETAINER
  • 9
    813618 COVER, DIAPHRAGM
    COVER, DIAPHRAGM
  • 10
    1395-9697 SCREW, DIAPHRAGM COVER
    (WMC-13/14/15/16)
    SCREW, DIAPHRAGM COVER
    (WMC-13/14/15/16)
  • 10
    1395-9697 SCREW, DIAPHRAGM COVER
    (WMC-13A/14A/15A/16A)
    SCREW, DIAPHRAGM COVER
    (WMC-13A/14A/15A/16A)
  • 11
    1395-9702 BODY, FUEL PUMP
    BODY, FUEL PUMP
  • 12
    1395-9643 SCREW, FUEL PUMP COVER
    SCREW, FUEL PUMP COVER
  • 13
    1395-9637 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 14
    1395-879194017 PLUG
    PLUG
  • 15
    1395-97611 GASKET/DIAPHRAGM KIT
    GASKET/DIAPHRAGM KIT
  • 16
    1395-8237072 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • 17
    1395-9699 PLATE, COVER
    (20-MANUAL/25-MANUAL-WMC15A)
    PLATE, COVER
    (20-MANUAL/25-MANUAL-WMC15A)
  • 17
    1395-9177 PLATE
    25-MANUAL-WMC-15)
    PLATE
    25-MANUAL-WMC-15)
  • 18
    1395-823433 CHOKE, Electric
    (WMC-14/WMC-16)
    CHOKE, Electric
    (WMC-14/WMC-16)
  • 18
    1395-823433 CHOKE, Electric
    (WMC-14A/WMC-16A)
    CHOKE, Electric
    (WMC-14A/WMC-16A)
  • 19
    1395-9696 SCREW, COVER PLATE
    (WMC-13/14/15/16)
    SCREW, COVER PLATE
    (WMC-13/14/15/16)
  • 19
    1395-9696 SCREW
    (WMC-13A/14A/15A/16A)
    SCREW
    (WMC-13A/14A/15A/16A)
  • 20
    27-192061 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 21
    41717T BRACKET, PRIMER
    BRACKET, PRIMER
  • 22
    10-400018 SCREW, (M5 x 12), BRACKET TO CARBURETOR
    SCREW, (M5 x 12), BRACKET TO CARBURETOR
  • 23
    42515A1 LEVER ASSEMBLY, FAST IDLE
    LEVER ASSEMBLY, FAST IDLE
  • 24
    41703 LEVER, PRIMER
    LEVER, PRIMER
  • 25
    12733 IDLE WIRE
    IDLE WIRE
  • 26
    110242 ACTUATOR, PRIMER
    ACTUATOR, PRIMER
  • 27
    12654 INSTRUCTION PLATE
    (MERCURY)
    INSTRUCTION PLATE
    (MERCURY)
  • 28
    12653 INSTRUCTION PLATE
    (MARINER)
    INSTRUCTION PLATE
    (MARINER)
