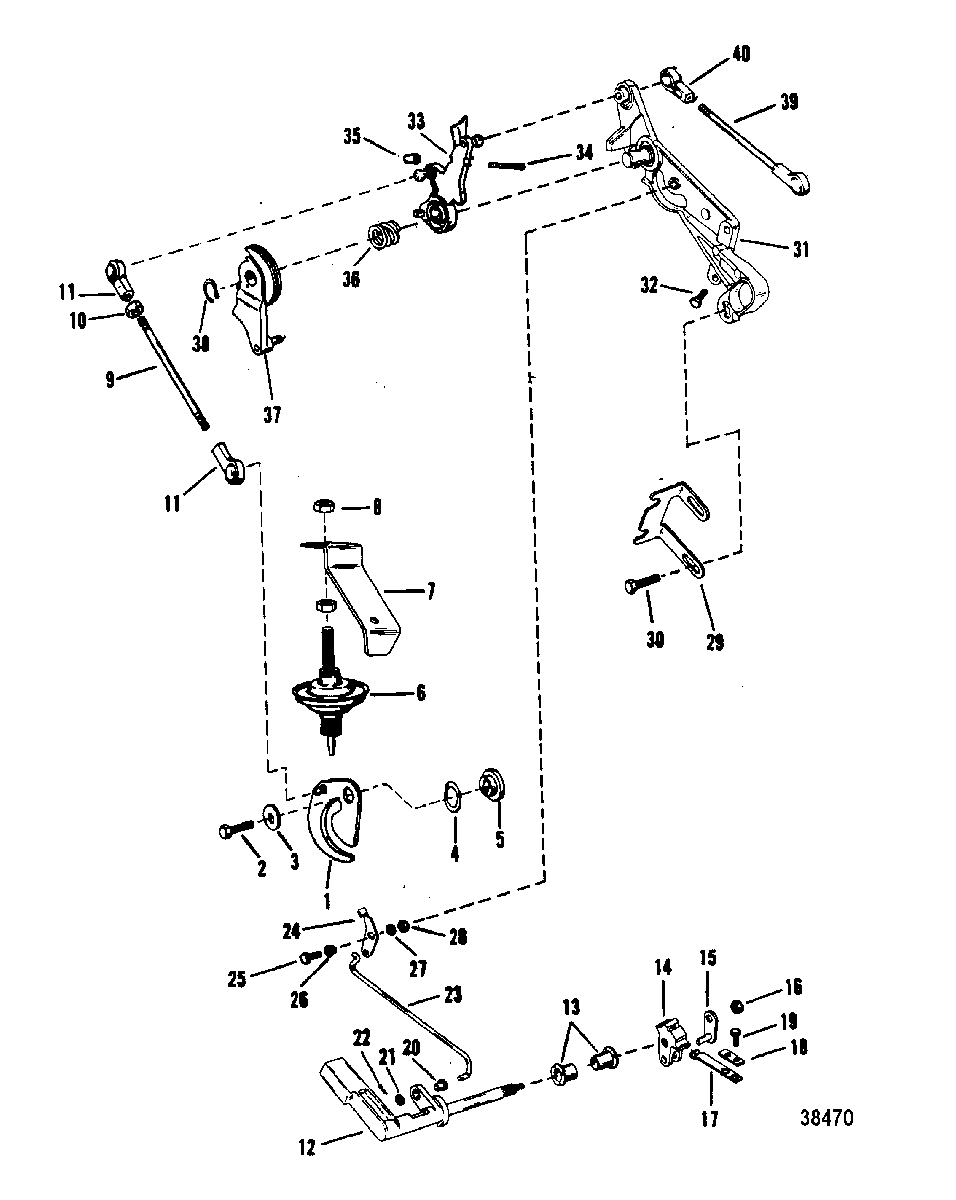

THROTTLE AND SHIFT LINKAGE(MARINER)(MANUAL) для Mercury - 18XD 7209533 THRU 0A730006
-
№АртикулНазвание
-
117764A2 CAM, Throttle
SN# US-0B114230/Aus-9467987/Can-0A719660 & BelowCAM, Throttle
SN# US-0B114230/Aus-9467987/Can-0A719660 & Below -
117764A2 CAM, Throttle
SN# US-0B114231/Aus-9467988/Can-0A719661 & UpCAM, Throttle
SN# US-0B114231/Aus-9467988/Can-0A719661 & Up -
210-400035 SCREW, (M5 x 16)
SN# US-0B114230/Aus-9467987/Can-0A719660 & BelowSCREW, (M5 x 16)
SN# US-0B114230/Aus-9467987/Can-0A719660 & Below -
210-4000117 SCREW, (M5 x 20)
SN# US-0B114231/Aus-9467988/Can-0A719661 & UpSCREW, (M5 x 20)
SN# US-0B114231/Aus-9467988/Can-0A719661 & Up -
312-87791 WASHER, THROTTLE CAM SCREWWASHER, THROTTLE CAM SCREW
-
413-69150 WAVE WASHER, THROTTLE CAM SCREWWAVE WASHER, THROTTLE CAM SCREW
-
517764A2 BUSHING, THROTTLE CAM SCREWBUSHING, THROTTLE CAM SCREW
-
692425 DASHPOTDASHPOT
-
793001 BRACKET, DASHPOTBRACKET, DASHPOT
-
811-22053 NUT, (.312-24), DASHPOT TERMINALNUT, (.312-24), DASHPOT TERMINAL
-
998463A2 ROD ASSEMBLY, ThrottleROD ASSEMBLY, Throttle
-
1011-68219 NUT, (#10-32) Stainless Steel, LOCK - THROTTLE RODNUT, (#10-32) Stainless Steel, LOCK - THROTTLE ROD
-
118M0084742 SOCKET, THROTTLE RODSOCKET, THROTTLE ROD
-
12423301 HANDLE, SHIFTHANDLE, SHIFT
-
1323-60762 BUSHING, SHIFT HANDLEBUSHING, SHIFT HANDLE
-
14423291 LEVER, SHIFTLEVER, SHIFT
-
1542358 BACKPLATE, SHIFT LEVERBACKPLATE, SHIFT LEVER
-
1611-401385 NUT, (M5), SHIFT LEVERNUT, (M5), SHIFT LEVER
-
1724-39627 SPRING, DETENTSPRING, DETENT
-
1839601 PLATE, DETENT SPRINGPLATE, DETENT SPRING
-
1910-400011 SCREW, (M5 x 8), DETENT SPRING AND PLATESCREW, (M5 x 8), DETENT SPRING AND PLATE
-
2023-96202 BUSHING, SHIFT LINKBUSHING, SHIFT LINK
-
2112-89302 WASHER, (.203 x .406 x .040), SHIFT LINKWASHER, (.203 x .406 x .040), SHIFT LINK
-
2218-210711 COTTER PIN, SHIFT LINKCOTTER PIN, SHIFT LINK
-
2311042 LINK, SHIFTLINK, SHIFT
-
24110501 LEVER, THROTTLE LIMITLEVER, THROTTLE LIMIT
-
2510-4000117 SCREW, (M5 x 20), THROTTLE LIMIT LEVERSCREW, (M5 x 20), THROTTLE LIMIT LEVER
-
2623-85095 BUSHING, THROTTLE LIMIT LEVERBUSHING, THROTTLE LIMIT LEVER
-
2712-89302 WASHER, (.203 x .406 x .040), THROTTLE LIMIT SCREWWASHER, (.203 x .406 x .040), THROTTLE LIMIT SCREW
-
2811-401385 NUT, (M5)NUT, (M5)
-
2911039 BRACKET, CABLEBRACKET, CABLE
-
3010-4000177 SCREW, (M6 x 25), CABLE BRACKETSCREW, (M6 x 25), CABLE BRACKET
-
3142026A2 PLATFORM, CONTROLPLATFORM, CONTROL
-
3210-4000171 SCREW, (M6 x 16), PLATFORM TO BLOCKSCREW, (M6 x 16), PLATFORM TO BLOCK
-
33110383 LEVER, CONTROLLEVER, CONTROL
-
3410-118591 SCREW, (.190-32 x 1.75), CONTROL LEVERSCREW, (.190-32 x 1.75), CONTROL LEVER
-
3548039 CAP, CONTROL LEVER SCREWCAP, CONTROL LEVER SCREW
-
3624-89540 SPRING, SPARK ADVANCESPRING, SPARK ADVANCE
-
3742343 LEVER, ACTUATINGLEVER, ACTUATING
-
3853-46250 RING, Retaining, ACTUATING LEVERRING, Retaining, ACTUATING LEVER
-
39817429 TIMING RODTIMING ROD
-
408M0084742 SOCKET, TIMING LINKSOCKET, TIMING LINK
