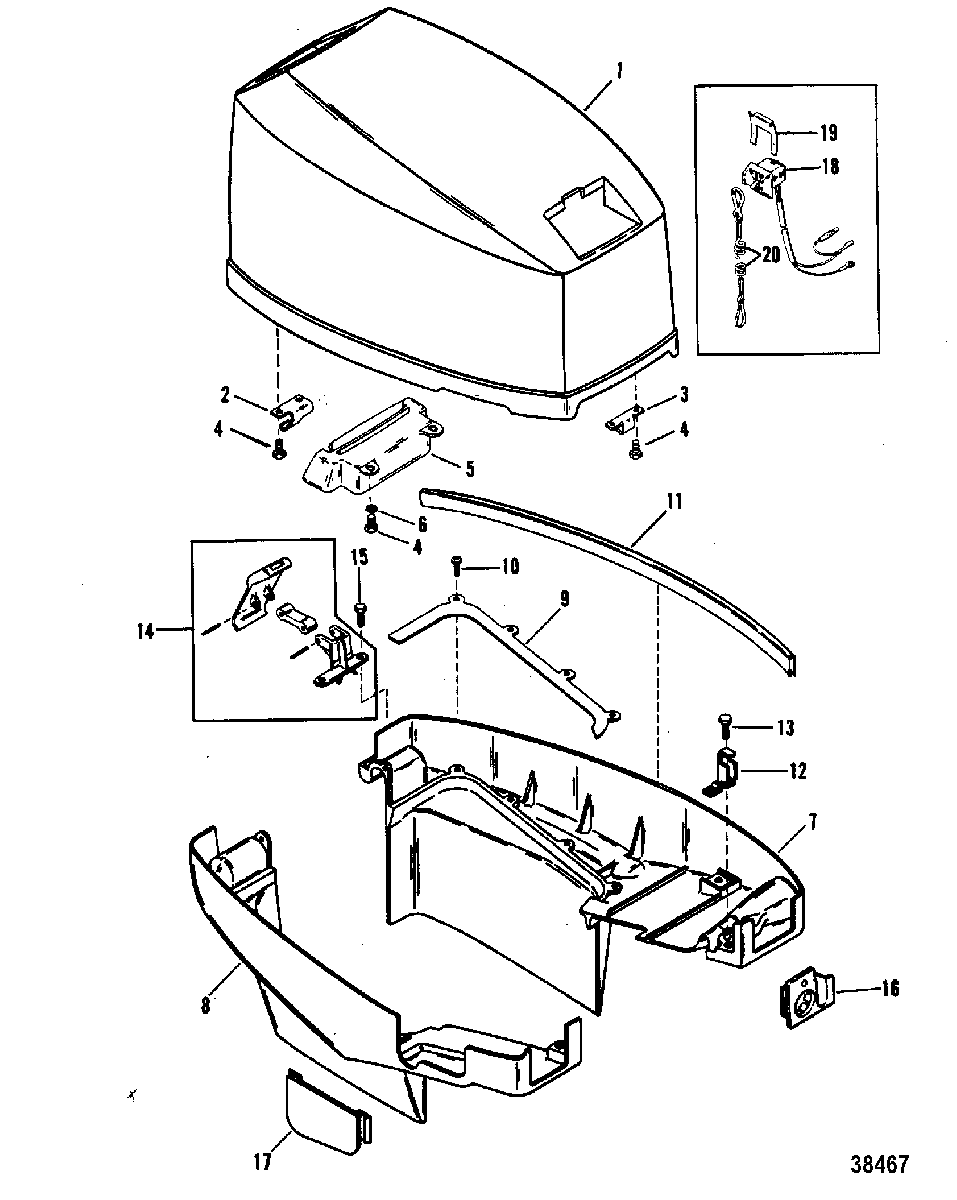

COWLS(MARINER) для Mercury - 18XD 7209533 THRU 0A730006

  • №
    Артикул
    Название
  • 1
    2190-9163A8 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    43515 HINGE, COWL LATCH
    HINGE, COWL LATCH
  • 3
    43555 BRACKET, TOP COWL
    BRACKET, TOP COWL
  • 4
    10-400018 SCREW, (M5 x 12), HINGE TO TOP COWL
    SCREW, (M5 x 12), HINGE TO TOP COWL
  • 5
    44311F3 SHIELD, TOP COWL
    SHIELD, TOP COWL
  • 6
    12-73288 WASHER, SHIELD SCREW
    WASHER, SHIELD SCREW
  • 7
    2176-9107A4 BOTTOM COWL, PORT
    (DARK GRAY)
    BOTTOM COWL, PORT
    (DARK GRAY)
  • 7
    2176-9107A4 BOTTOM COWL, PORT
    (LIGHT GRAY)
    BOTTOM COWL, PORT
    (LIGHT GRAY)
  • 8
    2176-9108A3 BOTTOM COWL, STARBOARD
    BOTTOM COWL, STARBOARD
  • 9
    15865 PLATE, BOTTOM COWL
    PLATE, BOTTOM COWL
  • 10
    10-95700 SCREW, (#10-16 x .500), PLATE TO BOTTOM COWL
    SCREW, (#10-16 x .500), PLATE TO BOTTOM COWL
  • 11
    15067A1 SEAL, BOTTOM COWL
    SEAL, BOTTOM COWL
  • 12
    43514 LATCH, BOTTOM COWL
    LATCH, BOTTOM COWL
  • 13
    10-400018 SCREW, (M5 x 12), LATCH TO BOTTOM COWL
    SCREW, (M5 x 12), LATCH TO BOTTOM COWL
  • 14
    43554A5 LATCH, COWL-REAR
    LATCH, COWL-REAR
  • 15
    10-400018 SCREW, (M5 x 12), BRACKET TO BOTTOM COWL
    SCREW, (M5 x 12), BRACKET TO BOTTOM COWL
  • 16
    11281 COVER, FUEL INLET
    COVER, FUEL INLET
  • 17
    25-416052 PLATE, BOTTOM COWL
    (WITHOUT STOP SWITCH)
    PLATE, BOTTOM COWL
    (WITHOUT STOP SWITCH)
  • 17
    25-416051 PLATE, BOTTOM COWL
    (WITH STOP SWITCH)(LIGHT GRAY)
    PLATE, BOTTOM COWL
    (WITH STOP SWITCH)(LIGHT GRAY)
  • 18
    87-11083A6 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 19
    8M0032846 RETANER, STOP SWITCH
    RETANER, STOP SWITCH
  • 20
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
