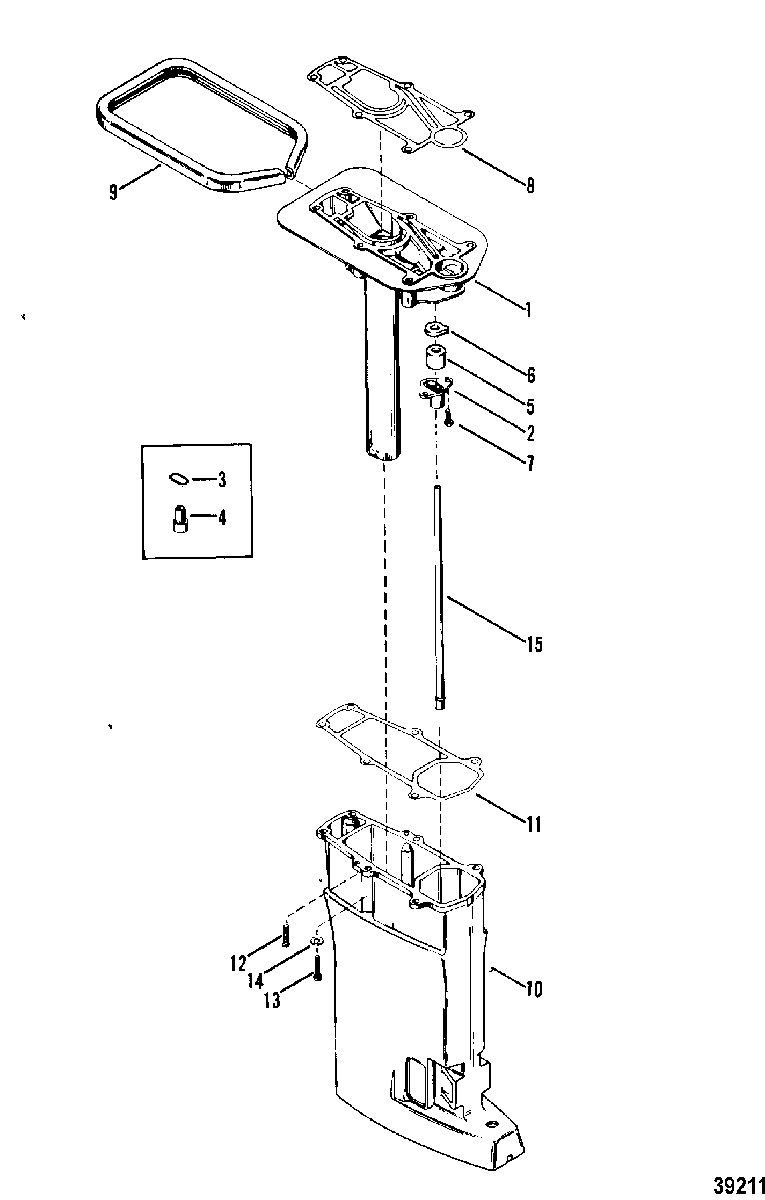

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 18 5837437 THRU 6416712

  • №
    Артикул
    Название
  • 1
    99702A3 PLATE ASSEMBLY
    PLATE ASSEMBLY
  • 2
    96248A1 HOUSING, WATER TUBE
    USED WITH REF. #3
    HOUSING, WATER TUBE
    USED WITH REF. #3
  • 3
    25-36390 O-RING, WATER TUBE HOUSING
    USED WITH REF. #3
    O-RING, WATER TUBE HOUSING
    USED WITH REF. #3
  • 4
    85164 SEAL, WATER TUBE
    USED WITH REF. #3
    SEAL, WATER TUBE
    USED WITH REF. #3
  • 2
    96248A1 HOUSING ASSEMBLY, WATER TUBE
    NOT USED WITH REF. #3
    HOUSING ASSEMBLY, WATER TUBE
    NOT USED WITH REF. #3
  • 5
    26-25329 SEAL, WATER TUBE
    NOT USED WITH REF. #3
    SEAL, WATER TUBE
    NOT USED WITH REF. #3
  • 6
    23-889715 SPACER, WATER TUBE
    NOT USED WITH REF. #3
    SPACER, WATER TUBE
    NOT USED WITH REF. #3
  • 7
    10-400035 SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
    SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
  • 8
    27-41670006 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 9
    158662 SEAL, Adaptor Plate
    SEAL, Adaptor Plate
  • 10
    1588-8747A1 HOUSING ASSEMBLY, Driveshaft
    SHORT SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
    HOUSING ASSEMBLY, Driveshaft
    SHORT SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
  • 10
    1591-8749A1 HOUSING ASSEMBLY, Driveshaft
    LONG SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
    HOUSING ASSEMBLY, Driveshaft
    LONG SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
  • 10
    1588-8747A1 HOUSING ASSEMBLY
    SHORT SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
    HOUSING ASSEMBLY
    SHORT SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
  • 10
    1591-8749A1 HOUSING ASSEMBLY
    LONG SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
    HOUSING ASSEMBLY
    LONG SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
  • 11
    27-85109 GASKET, DRIVESHAFT HOUSING
    SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
    GASKET, DRIVESHAFT HOUSING
    SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
  • 11
    27-433374 GASKET, DRIVESHAFT HOUSING
    SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
    GASKET, DRIVESHAFT HOUSING
    SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
  • 12
    10-400035 SCREW, (M5 x 16), DRIVESHAFT HOUSING TO PLATE
    SCREW, (M5 x 16), DRIVESHAFT HOUSING TO PLATE
  • 13
    10-1993870 SCREW, DRIVESHAFT HOUSING TO PLATE (60MM)
    SCREW, DRIVESHAFT HOUSING TO PLATE (60MM)
  • 14
    12-4002317 WASHER, DRIVESHAFT HOUSING SCREW
    WASHER, DRIVESHAFT HOUSING SCREW
  • 15
    32-85116 TUBE, Water
    SHORT SHAFT
    TUBE, Water
    SHORT SHAFT
  • 15
    32-86292 TUBE, Water
    LONG SHAFT
    TUBE, Water
    LONG SHAFT
  • -
    27-85168A80 GASKET SET
    GASKET SET
