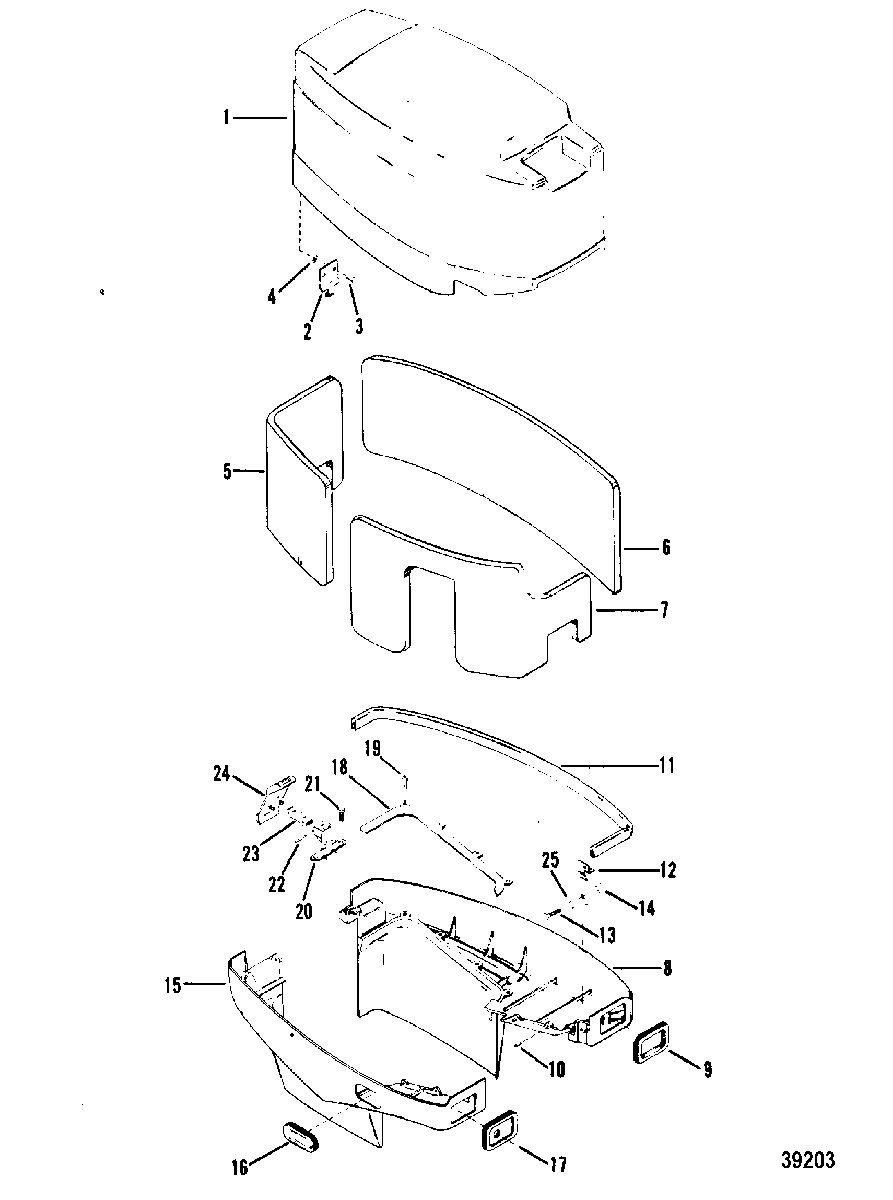

COWLS для Mercury - 18 5837437 THRU 6416712

  • №
    Артикул
    Название
  • 1
    2190-9163A22 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    89584 HINGE, COWL LATCH
    HINGE, COWL LATCH
  • 3
    10-22028 SCREW, (#10-32 x .50), HINGE TO TOP COWL
    SCREW, (#10-32 x .50), HINGE TO TOP COWL
  • 4
    11-27164 NUT AND LOCKWASHER, (#10-32), HINGE PIN
    NUT AND LOCKWASHER, (#10-32), HINGE PIN
  • 5
    91059 BLANKET, TOP COWL
    NOT USED ON LATER ENGINES
    BLANKET, TOP COWL
    NOT USED ON LATER ENGINES
  • 6
    91061 BLANKET, TOP COWL
    NOT USED ON LATER ENGINES
    BLANKET, TOP COWL
    NOT USED ON LATER ENGINES
  • 7
    91060 BLANKET, TOP COWL
    NOT USED ON LATER ENGINES
    BLANKET, TOP COWL
    NOT USED ON LATER ENGINES
  • 8
    2176-8860A4 BOTTOM COWL ASSEMBLY, PORT
    BOTTOM COWL ASSEMBLY, PORT
  • 9
    25-89695 GROMMET, FUEL ADAPTOR (1-7/8" LONG)
    GROMMET, FUEL ADAPTOR (1-7/8" LONG)
  • 9
    25-93770 GROMMET, FUEL ADAPTOR (2-1/16" LONG)
    GROMMET, FUEL ADAPTOR (2-1/16" LONG)
  • 10
    17-89010 PIN, Roll, BOTTOM COWL
    PIN, Roll, BOTTOM COWL
  • 11
    42274 SEAL, BOTTOM COWL
    SEAL, BOTTOM COWL
  • 12
    89009 LATCH, BOTTOM COWL
    LATCH, BOTTOM COWL
  • 13
    10-4000330 SCREW, (M6 x 25), LATCH TO BOTTOM COWL
    SCREW, (M6 x 25), LATCH TO BOTTOM COWL
  • 14
    11-401366 NUT, (M6), LATCH SCREW
    NUT, (M6), LATCH SCREW
  • 15
    2176-8860A4 BOTTOM COWL ASSEMBLY, STARBOARD
    BOTTOM COWL ASSEMBLY, STARBOARD
  • 16
    25-87819 GROMMET, BOTTOM COWL
    (3/4" X 2-1/4" OPENING)
    GROMMET, BOTTOM COWL
    (3/4" X 2-1/4" OPENING)
  • 16
    25-96160 GROMMET, BOTTOM COWL
    (1-1/8" X 3-1/8' OPENING)
    GROMMET, BOTTOM COWL
    (1-1/8" X 3-1/8' OPENING)
  • 16
    25-93527002 GROMMET, BOTTOM COWL
    (1-1/8" X 2-1/8" OPENING)
    GROMMET, BOTTOM COWL
    (1-1/8" X 2-1/8" OPENING)
  • 17
    25-89696 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 18
    15865 PLATE, BOTTOM COWL
    PLATE, BOTTOM COWL
  • 19
    10-95700 SCREW, PLATE TO BOTTOM COWL (1/2")
    SCREW, PLATE TO BOTTOM COWL (1/2")
  • 20
    43554A5 BRACKET, COWL LATCH
    BRACKET, COWL LATCH
  • 21
    10-400018 SCREW, (M5 x 12), BRACKET TO BOTTOM COWL
    SCREW, (M5 x 12), BRACKET TO BOTTOM COWL
  • 22
    17-25870 PIN, Roll, LINK
    PIN, Roll, LINK
  • 23
    43554A5 LINK, COWL LATCH
    LINK, COWL LATCH
  • 24
    43554A5 LATCH, COWL - REAR
    LATCH, COWL - REAR
  • 25
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, LATCH SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, LATCH SCREW
