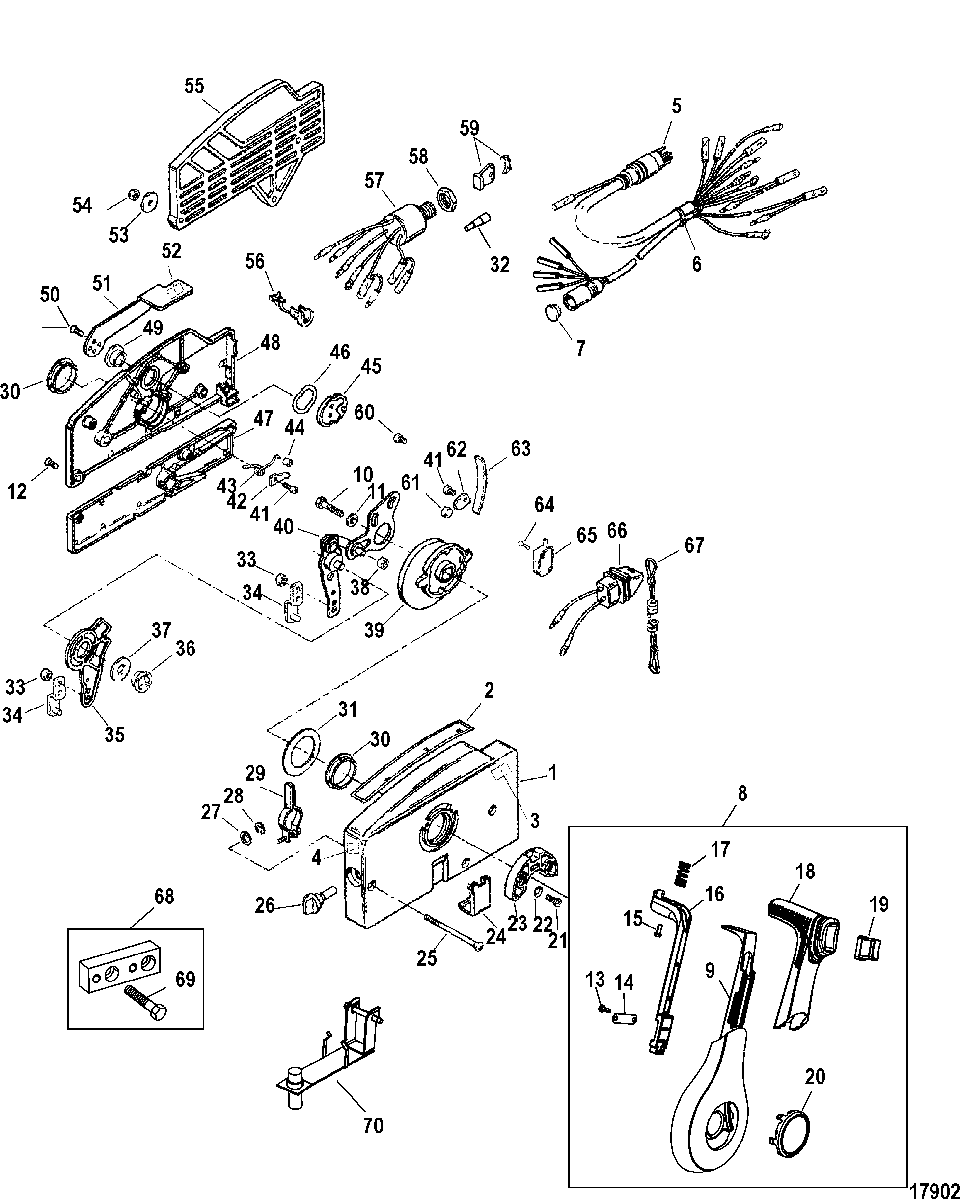

Remote Control-4000 Side Mount(Non Power Trim) для Mercury - 18 (2 CYL.) (International) 0N055285 & Up
-
№АртикулНазвание
-
-881170A9 REMOTE CONTROL, Electric Start - Non Power TrimREMOTE CONTROL, Electric Start - Non Power Trim
-
1NSS NOT SOLD SEPARATE, Housing, FrontNOT SOLD SEPARATE, Housing, Front
-
237-170622 DECAL, (F-N-R)DECAL, (F-N-R)
-
3NSS NOT SOLD SEPARATE, Decal, Throttle FrictionNOT SOLD SEPARATE, Decal, Throttle Friction
-
4NSS NOT SOLD SEPARATE, Decal, Run/OffNOT SOLD SEPARATE, Decal, Run/Off
-
584-850731A2 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
719-11023 PLUGPLUG
-
8881148T04 HANDLE KITHANDLE KIT
-
9NSS NOT SOLD SEPARATE, Hub, HandleNOT SOLD SEPARATE, Hub, Handle
-
1010-4007154 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1112-12038 WASHERWASHER
-
1210-40118107 SCREW, (M5 x 18)SCREW, (M5 x 18)
-
1310-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1416921 BRACKET, Lock Bar SupportBRACKET, Lock Bar Support
-
1510-87775510 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
16881138 LOCK BAR, RedLOCK BAR, Red
-
1724-16924 SPRINGSPRING
-
188811411 GRIPGRIP
-
19881146 PLUGPLUG
-
20881137A1 CAP/DECAL ASSEMBLYCAP/DECAL ASSEMBLY
-
2110-40118107 SCREW, (M5 x 18)SCREW, (M5 x 18)
-
2213-16923 LOCKWASHER, ExternalLOCKWASHER, External
-
2316899T HOLDER, Neutral LockHOLDER, Neutral Lock
-
2416917 COVERCOVER
-
2510-40116110T SCREW, (M6 x 110)SCREW, (M6 x 110)
-
26881145 KNOB, Throttle FrictionKNOB, Throttle Friction
-
2712-16896 WASHERWASHER
-
2853-13194 RING, RetainingRING, Retaining
-
2916895 ARM ASSEMBLY, BrakeARM ASSEMBLY, Brake
-
3023-16875 BEARING, (1.750 Inside Diameter)BEARING, (1.750 Inside Diameter)
-
3112-16874 WASHERWASHER
-
3213541 PLUG, MalePLUG, Male
-
3213540 CAP, FemaleCAP, Female
-
3311-401385 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
3454-85899A1 CLIP ASSEMBLYCLIP ASSEMBLY
-
35NSS NOT SOLD SEPARATE, Gear Shift AssemblyNOT SOLD SEPARATE, Gear Shift Assembly
-
3623-16868 BEARING, (.750 Inside Diameter)BEARING, (.750 Inside Diameter)
-
3712-16870 WASHERWASHER
-
3816873 ROLLER, CamROLLER, Cam
-
39NSS NOT SOLD SEPARATE, Drive GearNOT SOLD SEPARATE, Drive Gear
-
40NSS NOT SOLD SEPARATE, Plate, Stud AssemblyNOT SOLD SEPARATE, Plate, Stud Assembly
-
4110-4005683 SCREW, (M4 x 6)SCREW, (M4 x 6)
-
4216886 CLIPCLIP
-
4324-16888 SPRINGSPRING
-
4416884 ROLLERROLLER
-
4516883 DRUM ASSEMBLYDRUM ASSEMBLY
-
4613-16922 WAVE WASHERWAVE WASHER
-
47NSS NOT SOLD SEPARATE, Cover, BottomNOT SOLD SEPARATE, Cover, Bottom
-
48NSS NOT SOLD SEPARATE, Cover, TopNOT SOLD SEPARATE, Cover, Top
-
4923-16887 BEARING, (.810 Inside Diameter)BEARING, (.810 Inside Diameter)
-
5010-40118106 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
5116919A1 LEVER ASSEMBLY, With DecalLEVER ASSEMBLY, With Decal
-
52NSS NOT SOLD SEPARATE, Decal, Lift for Fast IdleNOT SOLD SEPARATE, Decal, Lift for Fast Idle
-
5312-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
5411-401196 NUT, (M6)NUT, (M6)
-
5517063T SPACERSPACER
-
5623-71942 BUSHINGBUSHING
-
5787-17009A5 SWITCH ASSEMBLY, IgnitionSWITCH ASSEMBLY, Ignition
-
5811-879755 NUT, Special - Black NylonNUT, Special - Black Nylon
-
5990468A1 COVER ASSEMBLY, KeyCOVER ASSEMBLY, Key
-
6010-40056105 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
6116879 ROLLER, DetentROLLER, Detent
-
6216880 CLIPCLIP
-
6324-16882 SPRINGSPRING
-
6410-4005647 SCREW, (M3 x 16)SCREW, (M3 x 16)
-
6587-17277T SWITCH ASSEMBLYSWITCH ASSEMBLY
-
6687-91941A8 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
678M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
68850753A1 SPACER KIT, RiggingSPACER KIT, Rigging
-
6910-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
7091-892542A01 INDICATOR, Shift Load ToolINDICATOR, Shift Load Tool
