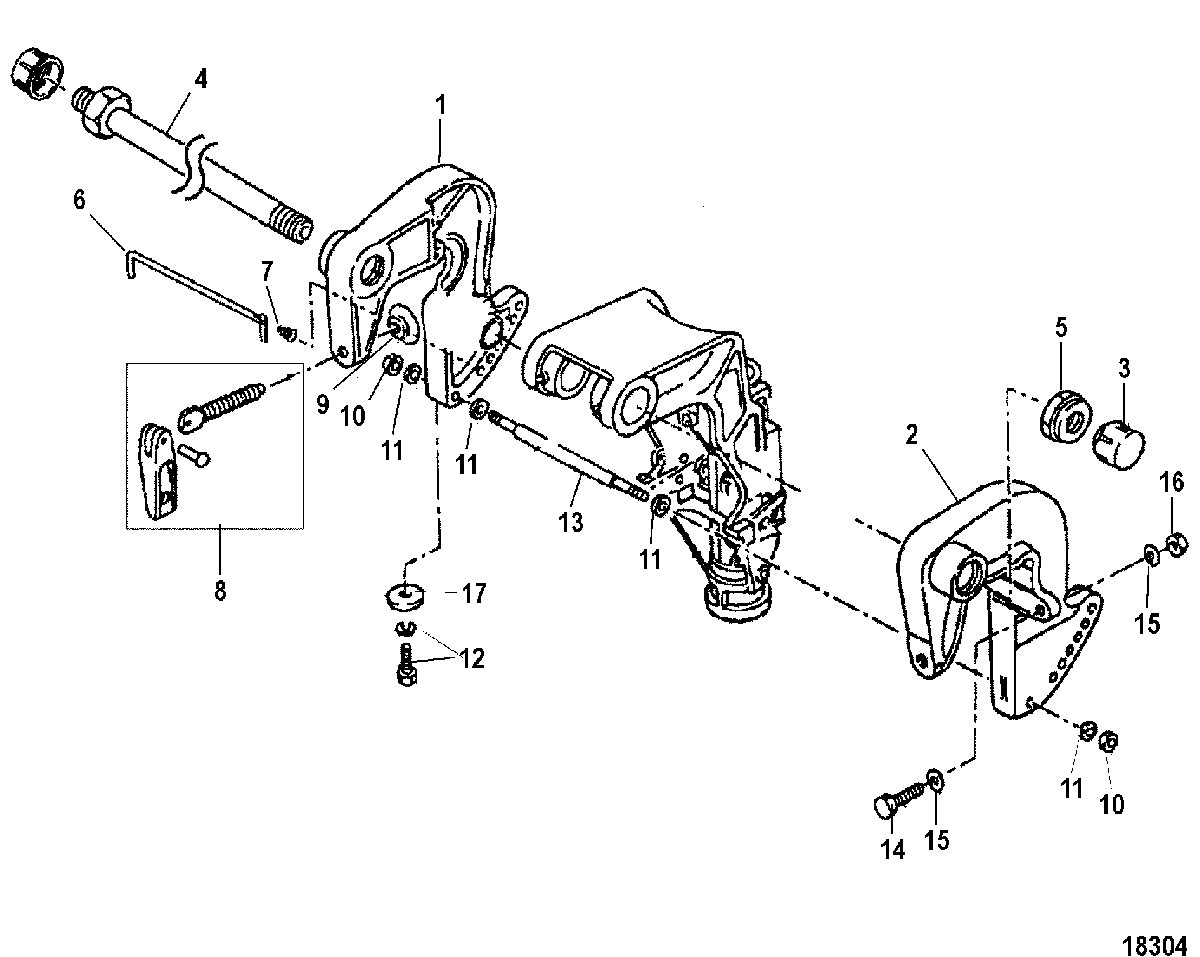

Clamp Bracket для Mercury - 18 (2 CYL.) (International) 0N055285 & Up

  • №
    Артикул
    Название
  • 1
    8M0059754 CLAMP BRACKET, Starboard
    SN# 0N080618 & Below
    CLAMP BRACKET, Starboard
    SN# 0N080618 & Below
  • 1
    8M0059754 CLAMP BRACKET, Starboard
    SN# 0N080619 & Up
    CLAMP BRACKET, Starboard
    SN# 0N080619 & Up
  • 2
    8M0059755 CLAMP BRACKET, Port
    SN# 0N080618 & Below
    CLAMP BRACKET, Port
    SN# 0N080618 & Below
  • 2
    8M0059755 CLAMP BRACKET, Port
    SN# 0N080619 & Up
    CLAMP BRACKET, Port
    SN# 0N080619 & Up
  • 3
    11-85372214 CAP NUT
    CAP NUT
  • 4
    898101191 TILT TUBE
    TILT TUBE
  • 5
    11-853722029 NUT, Nylon
    NUT, Nylon
  • 6
    16198004 THRUST ROD
    THRUST ROD
  • 7
    24-815093003 SPRING
    SPRING
  • 8
    10-8M0060116 THUMB SCREW ASSEMBLY, 1/2 Inch Thread Size
    THUMB SCREW ASSEMBLY, 1/2 Inch Thread Size
  • 9
    12-95379 PAD
    PAD
  • 10
    11-853722022 NUT
    NUT
  • 11
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 12
    10-167051 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 13
    898101938 DISTANCE PIECE
    SN# 0N060052 & Below
    DISTANCE PIECE
    SN# 0N060052 & Below
  • 13
    898101938 DISTANCE PIECE
    SN# 0N060053 & Up
    DISTANCE PIECE
    SN# 0N060053 & Up
  • 14
    10-879194310 BOLT
    BOLT
  • 15
    12-16192 WASHER
    WASHER
  • 16
    11-879194337 NUT
    NUT
  • 17
    97-823913Q ANODE
    ANODE
