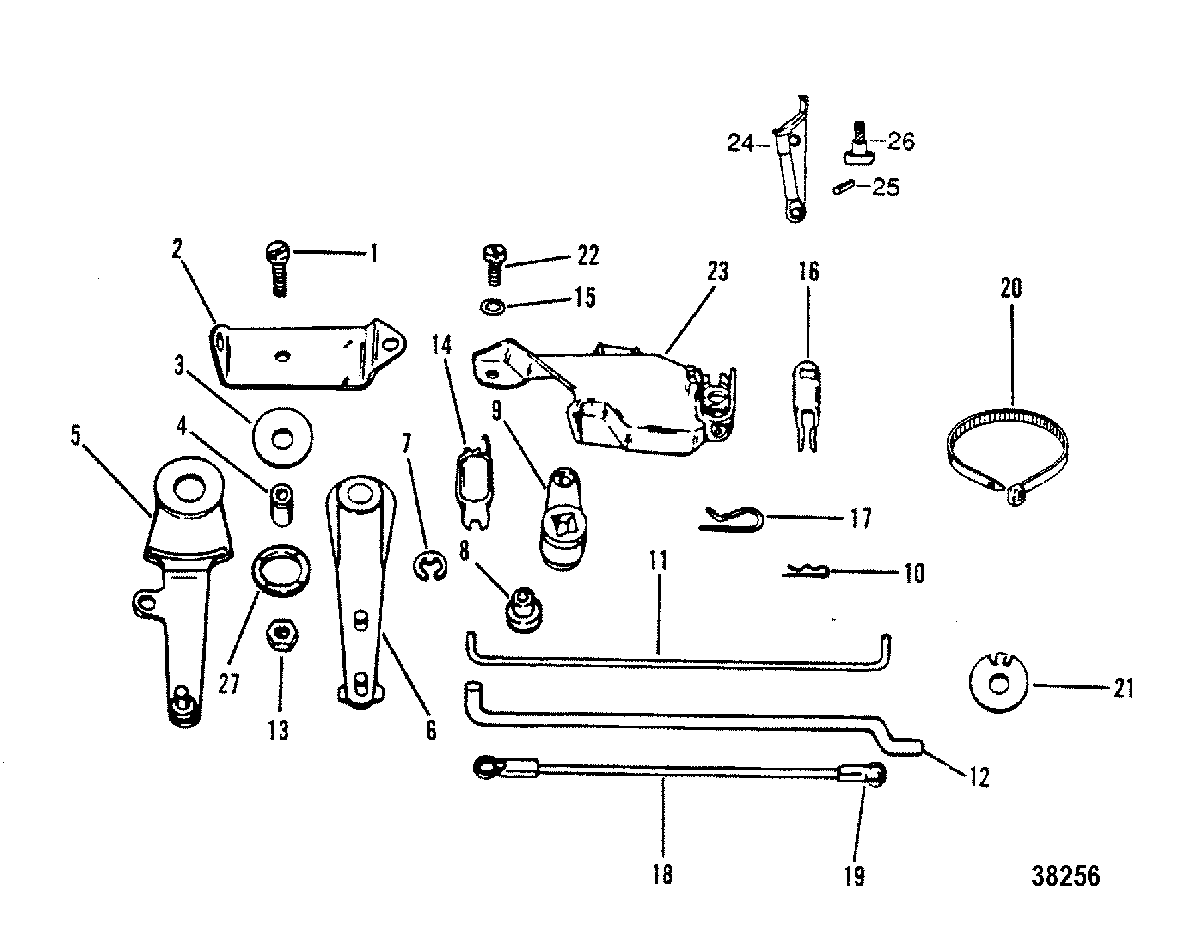

REMOTE CONTROL ATTACHING COMPONENTS для Mercury - 15 0A197112 THRU 0D280999
-
№АртикулНазвание
-
110-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
242809 BRACKET, Control ArmBRACKET, Control Arm
-
312-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
312-12132 WASHER, (.520 x 1.500 x .06)WASHER, (.520 x 1.500 x .06)
-
312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
423-823807 BUSHINGBUSHING
-
542810A8 CONTROL ARM
REF. #11 is 9-1/8 InchCONTROL ARM
REF. #11 is 9-1/8 Inch -
542810A8 CONTROL ARM
REF. #11 is 8-3/8 InchCONTROL ARM
REF. #11 is 8-3/8 Inch -
6428071 ARM, Throttle Control
REF. #11 is 9-1/8 InchARM, Throttle Control
REF. #11 is 9-1/8 Inch -
6428071 ARM, Throttle Control
REF. #11 is 8-3/8 InchARM, Throttle Control
REF. #11 is 8-3/8 Inch -
753-61319 E RING
REF. #11 is 9-1/8 InchE RING
REF. #11 is 9-1/8 Inch -
823-889731 BUSHING
REF. #11 is 9-1/8 InchBUSHING
REF. #11 is 9-1/8 Inch -
942800 LEVER
REF. #11 is 9-1/8 InchLEVER
REF. #11 is 9-1/8 Inch -
1018-210711 COTTER PIN
REF. #11 is 9-1/8 InchCOTTER PIN
REF. #11 is 9-1/8 Inch -
1142741 SHIFT LINK
REF. #11 is 9-1/8 InchSHIFT LINK
REF. #11 is 9-1/8 Inch -
11815550A1 SHIFT SHAFT
REF. #11 is 8-3/8 Inch (USE W/SWIVEL BALL/SWIVEL BASE)SHIFT SHAFT
REF. #11 is 8-3/8 Inch (USE W/SWIVEL BALL/SWIVEL BASE) -
542810A8 ARM ASSEMBLY, Control
USE W/REF. #12ARM ASSEMBLY, Control
USE W/REF. #12 -
823-889731 BUSHING
USE W/REF. #12BUSHING
USE W/REF. #12 -
1018-210711 COTTER PIN
USE W/REF. #12COTTER PIN
USE W/REF. #12 -
12878169 SHIFT LINK
(USE W/O SWIVEL BALL/SWIVEL BASE)SHIFT LINK
(USE W/O SWIVEL BALL/SWIVEL BASE) -
1311-401386 NUT, (M6)NUT, (M6)
-
14428021 RETAINERRETAINER
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
16424291 RETAINERRETAINER
-
1754-11372 CLIPCLIP
-
188M0084741 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
198M0084742 SOCKETSOCKET
-
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2114-11371 TAB WASHER (OLD DESIGN)TAB WASHER (OLD DESIGN)
-
2210-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2342805A3 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2411373 PIN, LatchPIN, Latch
-
2517-239281 PINPIN
-
2610-42975 DRIVE SCREWDRIVE SCREW
-
2713-12134 WASHER, WaveWASHER, Wave
