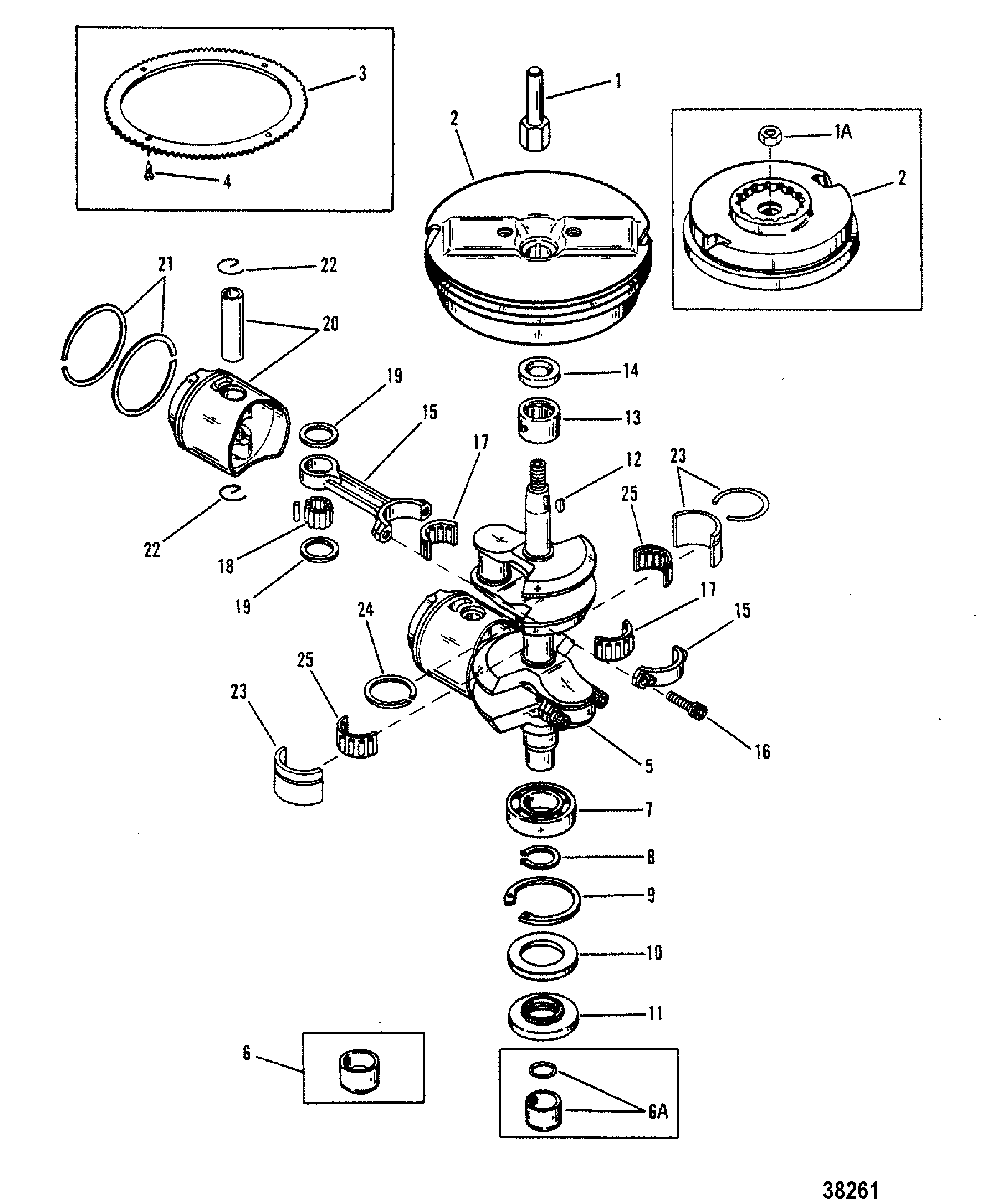

CRANKSHAFT, PISTONS AND FLYWHEEL(15) для Mercury - 15 0A197112 THRU 0D280999

  • №
    Артикул
    Название
  • 1
    42691 SHAFT, FLYWHEEL
    (USE WITH STUB SHAFT)
    SHAFT, FLYWHEEL
    (USE WITH STUB SHAFT)
  • 1A
    11-818591 NUT, (M14)
    NUT, (M14)
  • 2
    260-859231T6 FLYWHEEL ASSEMBLY
    (USE WITH STUB SHAFT)
    FLYWHEEL ASSEMBLY
    (USE WITH STUB SHAFT)
  • 2
    260-859231T19 FLYWHEEL ASSEMBLY
    (USE WITH NUT)
    FLYWHEEL ASSEMBLY
    (USE WITH NUT)
  • 3
    43-99301 RING GEAR, FLYWHEEL
    RING GEAR, FLYWHEEL
  • 4
    10-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
    SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
  • 5
    400-8M0083309 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 6
    818630A1 SEAL, Oil, CRANKSHAFT (DESIGN I)
    SEAL, Oil, CRANKSHAFT (DESIGN I)
  • 6A
    818630A1 SLEEVE (INCLUDES O-RING - DESIGN II)
    SLEEVE (INCLUDES O-RING - DESIGN II)
  • 7
    30-41341 BEARING, Ball, CRANKSHAFT-LOWER
    BEARING, Ball, CRANKSHAFT-LOWER
  • 8
    53-20940 RING, Snap, BALL BEARING (SMALL) (OLD DESIGN)
    RING, Snap, BALL BEARING (SMALL) (OLD DESIGN)
  • 9
    53-42132 RING, Retaining
    RING, Retaining
  • 10
    12-13031 WASHER, LOWER
    WASHER, LOWER
  • 11
    26-125661 SEAL, Oil - Lower
    SEAL, Oil - Lower
  • 12
    28-20094 KEY, Woodruff
    KEY, Woodruff
  • 13
    31-878158 BEARING, Roller, CRANKSHAFT-UPPER
    BEARING, Roller, CRANKSHAFT-UPPER
  • 14
    26-125671 SEAL, Oil - Upper, CRANKSHAFT
    SEAL, Oil - Upper, CRANKSHAFT
  • 15
    637-8477A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    10-823460 SCREW, (M5 x 16), CONNECTING ROD
    SCREW, (M5 x 16), CONNECTING ROD
  • 17
    31-42076A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 18
    29-42186 BEARING, Needle, PISTON END
    BEARING, Needle, PISTON END
  • 19
    12-8M0012297 BEARING, Thrust
    BEARING, Thrust
  • 20
    784-9747T2 PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 20
    784-9747A4 PISTON ASSEMBLY (.015 O.S.)
    PISTON ASSEMBLY (.015 O.S.)
  • 21
    39-18212A4 RING SET, Piston (STANDARD)
    RING SET, Piston (STANDARD)
  • 21
    39-18212A1 RING SET, Piston (.015 O.S.)
    RING SET, Piston (.015 O.S.)
  • 22
    40-42202 LOCK RING
    LOCK RING
  • 23
    17794A1 BEARING
    BEARING
  • 24
    26-818901 SEAL, MAIN BEARING
    SEAL, MAIN BEARING
  • 25
    31-42076A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • -
    19072T88 POWERHEAD ASSEMBLY, Complete
    (15)
    POWERHEAD ASSEMBLY, Complete
    (15)
