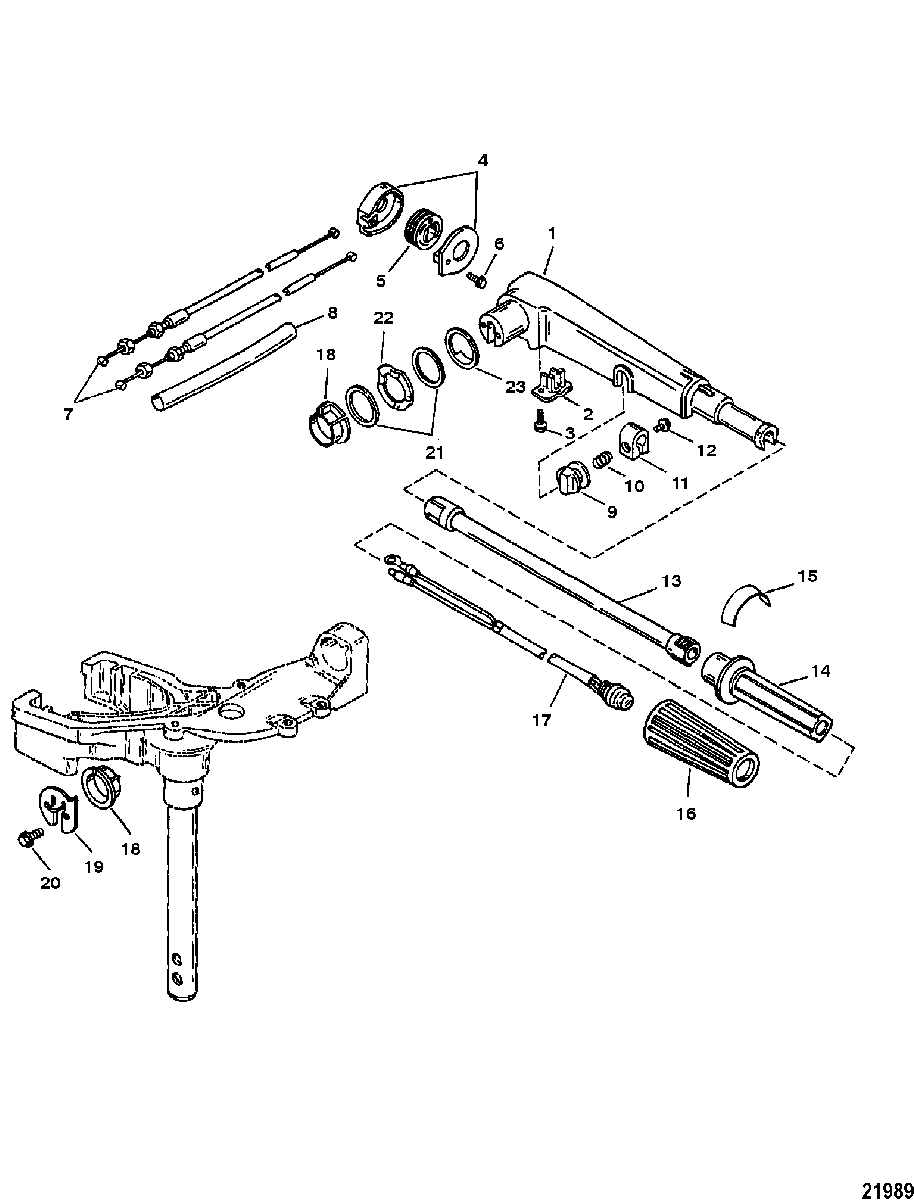

Steering Handle для Mercury - 15 SEA PRO 0G044365 THRU 0G437999

  • №
    Артикул
    Название
  • -
    821468T2 TILLER HANDLE, Complete
    (BLACK)
    TILLER HANDLE, Complete
    (BLACK)
  • -
    821468T3 TILLER HANDLE, Complete
    (GRAY)
    TILLER HANDLE, Complete
    (GRAY)
  • 1
    821468A66 ARM-STEERING HANDLE
    (BLACK)
    ARM-STEERING HANDLE
    (BLACK)
  • 1
    821468A66 ARM-STEERING HANDLE
    (GRAY)
    ARM-STEERING HANDLE
    (GRAY)
  • 2
    822441 RETAINER
    RETAINER
  • 3
    10-40011107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 4
    822148A2 COVER KIT
    COVER KIT
  • 5
    822150 PULLEY
    PULLEY
  • 6
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 7
    432426 THROTTLE CABLE
    THROTTLE CABLE
  • 8
    85-960099 SLEEVE, (12.00 Inches)
    SLEEVE, (12.00 Inches)
  • 9
    821972T KNOB, Throttle
    KNOB, Throttle
  • 10
    24-96203 SPRING
    SPRING
  • 11
    892995 LOCK, Throttle
    LOCK, Throttle
  • 12
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 13
    821463T01 TILLER TUBE
    TILLER TUBE
  • 14
    821465 THROTTLE HANDLE
    THROTTLE HANDLE
  • 15
    37-8242004 DECAL
    DECAL
  • 16
    99589003 GRIP
    GRIP
  • 17
    87-8M0104615 STOP SWITCH
    STOP SWITCH
  • 18
    23-823939 BUSHING
    BUSHING
  • 19
    822147 PLATE-TILLER HANDLE
    (USE WITH 6MM SCREWS-REF #20)
    PLATE-TILLER HANDLE
    (USE WITH 6MM SCREWS-REF #20)
  • 19
    8221471 PLATE
    (USE WITH 5MM SCREWS-REF #20)
    PLATE
    (USE WITH 5MM SCREWS-REF #20)
  • 20
    10-8M4503518 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 20
    10-40011107 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 21
    12-822145 WASHER
    WASHER
  • 22
    13-826792 WAVE WASHER
    WAVE WASHER
  • 23
    12-822146 WASHER
    WASHER
