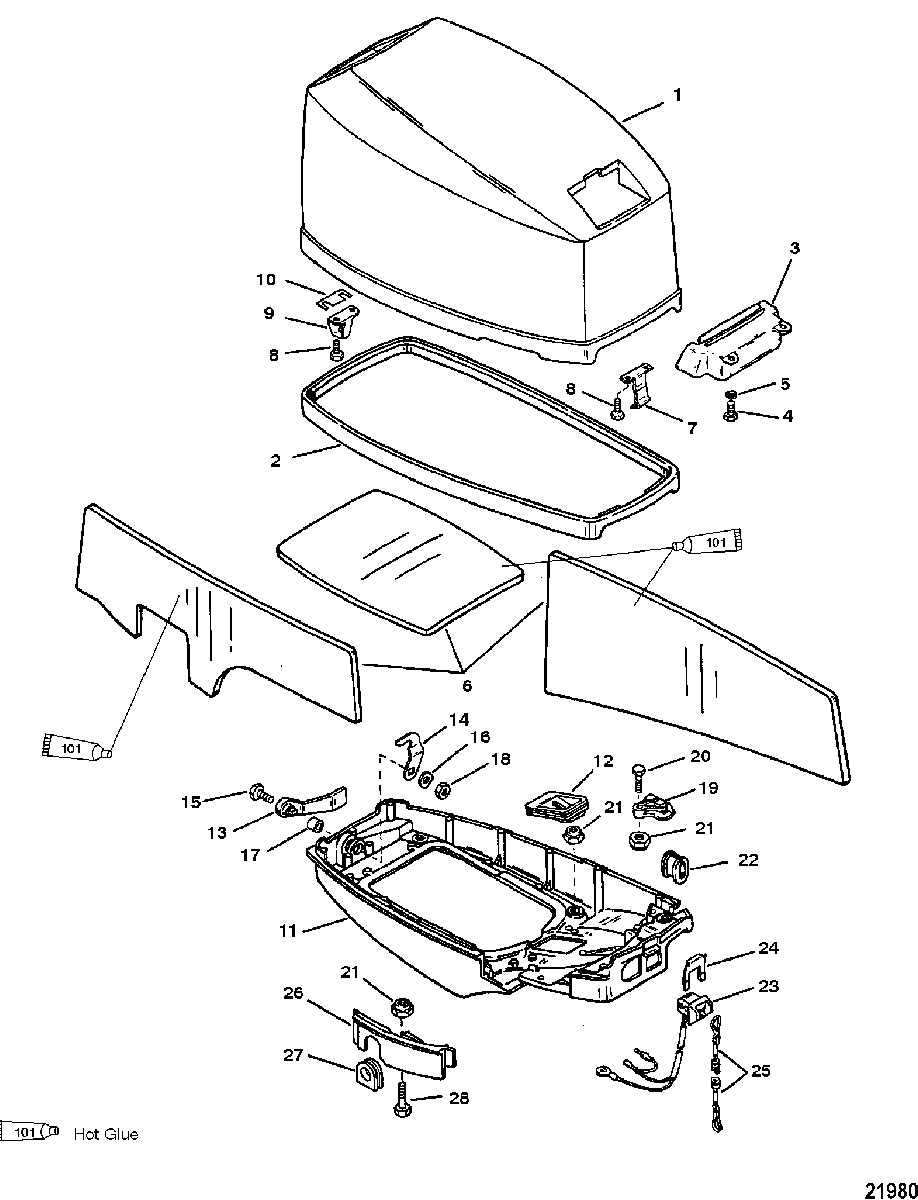

Cowling для Mercury - 15 SEA PRO 0G044365 THRU 0G437999

  • №
    Артикул
    Название
  • 1
    2190-9163T19 TOP COWL (BLACK)
    WITHOUT DECALS
    TOP COWL (BLACK)
    WITHOUT DECALS
  • 1
    2190-9163T21 TOP COWL (GRAY)
    WITHOUT DECALS
    TOP COWL (GRAY)
    WITHOUT DECALS
  • 1
    2190-9163T21 TOP COWL (SILVER)
    WITHOUT DECALS
    TOP COWL (SILVER)
    WITHOUT DECALS
  • 2
    8M0043411 COWL SEAL
    COWL SEAL
  • 3
    44311F3 SHIELD (BLACK)
    SHIELD (BLACK)
  • 3
    44311F3 SHIELD (GRAY)
    SHIELD (GRAY)
  • 3
    44311F3 SHIELD (SILVER)
    SHIELD (SILVER)
  • 4
    10-400018 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 5
    12-73288 WASHER, (.220 x .500 x .030)
    WASHER, (.220 x .500 x .030)
  • 6
    815625A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 7
    17221 COWL LATCH
    COWL LATCH
  • 8
    10-400033 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 9
    812413A1 ROLLER BRACKET ASSEMBLY
    ROLLER BRACKET ASSEMBLY
  • 10
    18517 COWL LATCH SHIM
    COWL LATCH SHIM
  • 11
    2193-9682A8 BOTTOM COWL (BLACK)
    BOTTOM COWL (BLACK)
  • 11
    2193-9682A9 BOTTOM COWL (GRAY)
    BOTTOM COWL (GRAY)
  • 12
    25-17231 GROMMET, Shift Shaft
    GROMMET, Shift Shaft
  • 13
    17220 LEVER, Cowl Latch
    LEVER, Cowl Latch
  • 14
    816202 HOOK, Latch
    HOOK, Latch
  • 15
    10-40019130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 16
    13-37642 WAVE WASHER
    WAVE WASHER
  • 17
    23-812707 BUSHING, Nylon
    BUSHING, Nylon
  • 18
    11-17224 NUT, Latch Retaining
    NUT, Latch Retaining
  • 19
    17223 COVER, Harness
    COVER, Harness
  • 20
    10-40011131 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 21
    11-401196 NUT, (M6)
    NUT, (M6)
  • 22
    25-17226 GROMMET, Wire Harness
    GROMMET, Wire Harness
  • 23
    87-11083A6 STOP SWITCH ASSEMBLY
    STOP SWITCH ASSEMBLY
  • 24
    8M0032846 RETAINER
    RETAINER
  • 25
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 26
    8M0054857 SIDE COVER (HANDLE - BLACK)
    SIDE COVER (HANDLE - BLACK)
  • 26
    8M0054857 SIDE COVER (HANDLE - GRAY)
    SIDE COVER (HANDLE - GRAY)
  • 27
    25-824361 GROMMET
    GROMMET
  • 28
    10-4000329 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
