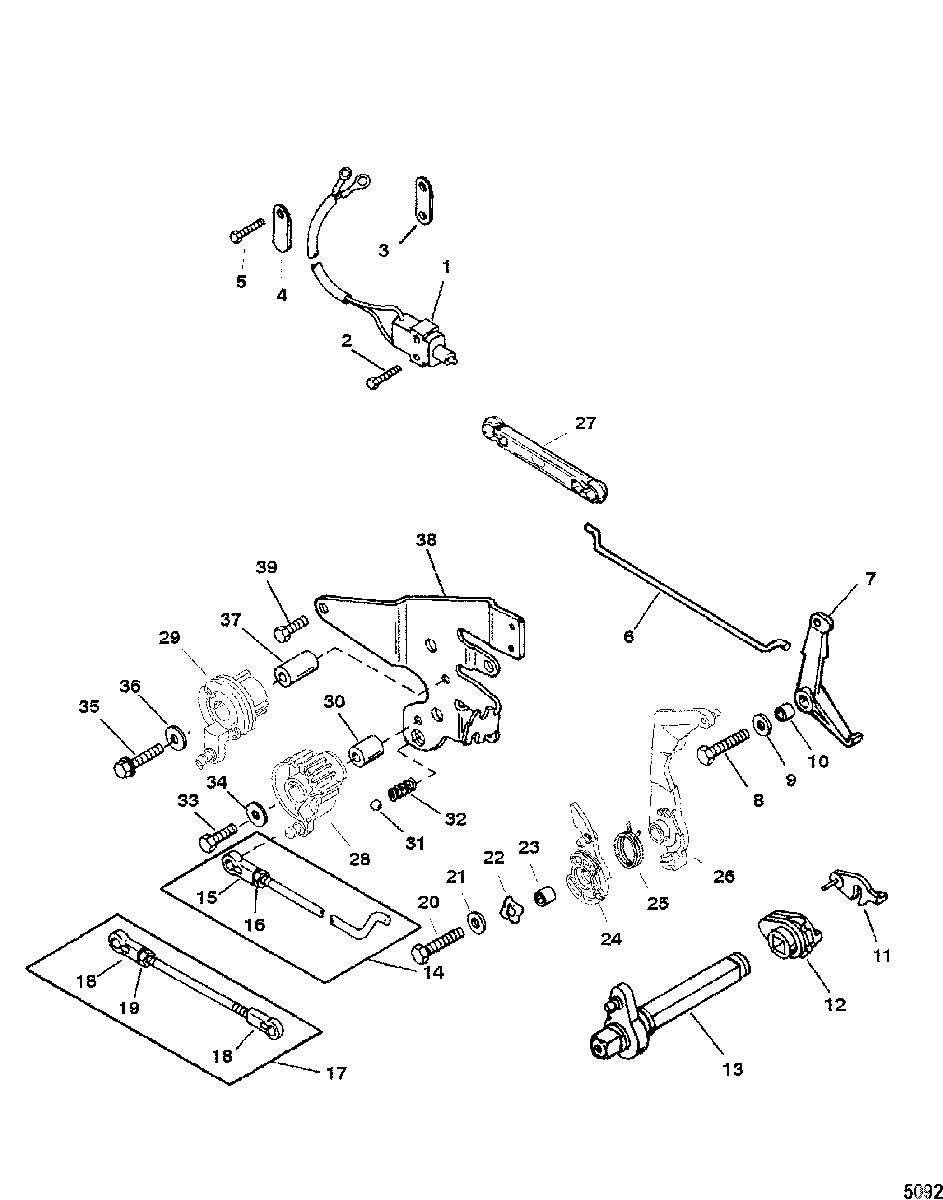

Throttle and Shift Linkage(Tiller Handle Shift) для Mercury - 15 SEA PRO (XD) 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    87-813960A4 SWITCH ASSEMBLY
    (Local Electric)
    SWITCH ASSEMBLY
    (Local Electric)
  • 2
    10-88075020 SCREW, (M3.5 x 20) Stainless Steel
    (Local Electric)
    SCREW, (M3.5 x 20) Stainless Steel
    (Local Electric)
  • 3
    824923 PLATE
    (Local Electric)
    PLATE
    (Local Electric)
  • 4
    54-12627 STRAP
    (Local Electric)
    STRAP
    (Local Electric)
  • 5
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    (Local Electric)
    SCREW, (M5 x 16) Stainless Steel
    (Local Electric)
  • 6
    42161 LINK INTERLOCK
    LINK INTERLOCK
  • 7
    8236103 LEVER, Interlock Control
    LEVER, Interlock Control
  • 8
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 9
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 10
    23-823806 BUSHING
    BUSHING
  • 11
    823862 LEVER, Backplate
    LEVER, Backplate
  • 12
    8238632 LEVER, Horizontal Shift Shaft, Port
    LEVER, Horizontal Shift Shaft, Port
  • 13
    8236011 SHIFT SHAFT, Horizontal
    SHIFT SHAFT, Horizontal
  • 14
    881228A2 SHIFT LINK ASSEMBLY
    SHIFT LINK ASSEMBLY
  • 15
    817428 SOCKET
    SOCKET
  • 16
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 17
    881227A1 LINK ASSEMBLY, Throttle
    LINK ASSEMBLY, Throttle
  • 18
    817428 SOCKET
    SOCKET
  • 19
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 20
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 21
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 22
    13-99611 WAVE WASHER
    WAVE WASHER
  • 23
    23-823806 BUSHING
    BUSHING
  • 24
    8319781 CAM, Throttle
    CAM, Throttle
  • 25
    24-42164 SPRING
    SPRING
  • 26
    888191 SPARK ARM
    SPARK ARM
  • 27
    8327471 TIMING LINK
    TIMING LINK
  • 28
    8238083 SECONDARY GEAR
    SECONDARY GEAR
  • 29
    8238092 PRIMARY GEAR
    PRIMARY GEAR
  • 30
    23-823806 BUSHING
    BUSHING
  • 31
    30-93008 BALL
    BALL
  • 32
    24-930061 SPRING
    SPRING
  • 33
    10-4000329 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 34
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 35
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 36
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 37
    23-823807 BUSHING
    BUSHING
  • 38
    8238102 CONTROL PLATFORM
    CONTROL PLATFORM
  • 39
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
