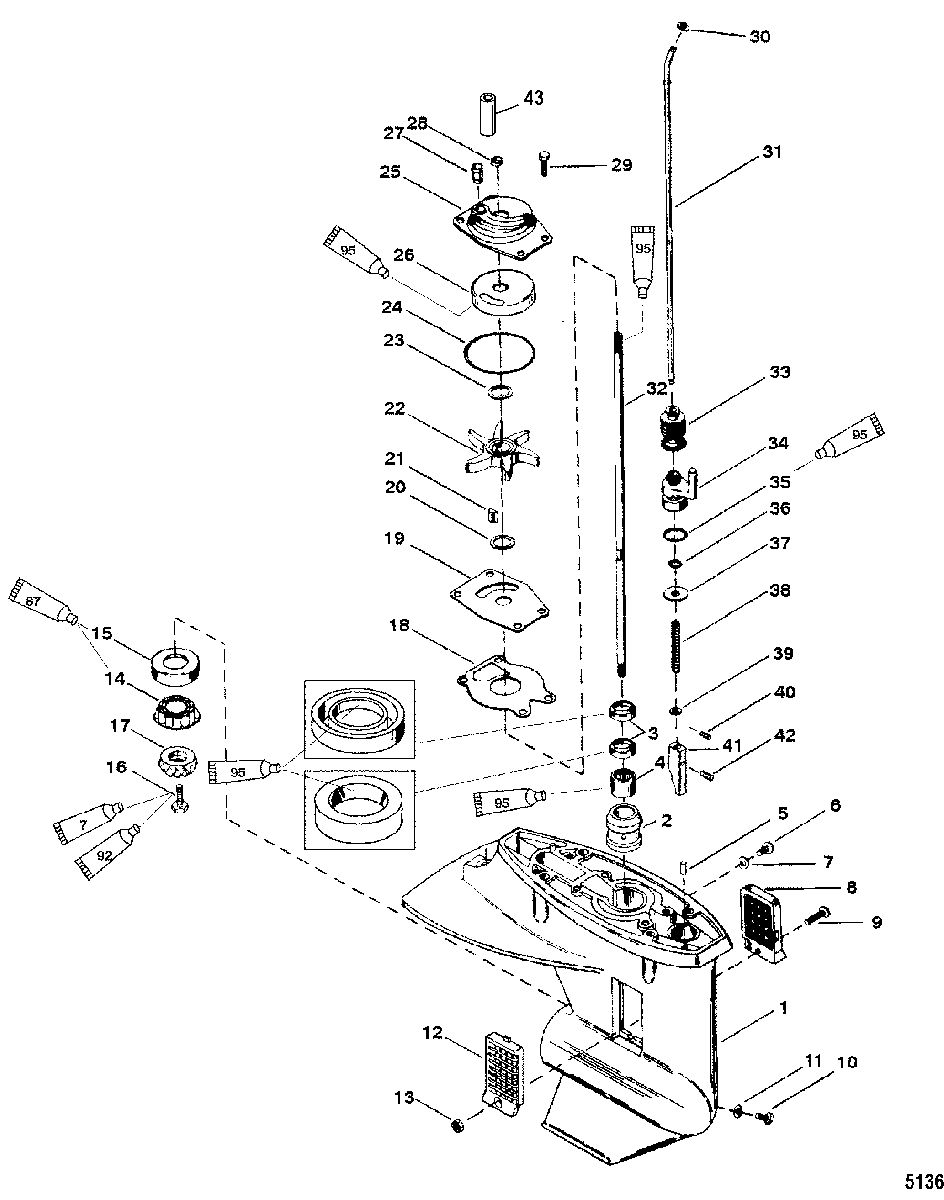

Gear Housing(Driveshaft) (2.25:1 Gear Ratio) для Mercury - 15 SEA PRO (XD) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
-1665-8669T26 GEAR HOUSING ASSEMBLY
(Short - Black)GEAR HOUSING ASSEMBLY
(Short - Black) -
-1665-8669T28 GEAR HOUSING ASSEMBLY
(Long - Black)GEAR HOUSING ASSEMBLY
(Long - Black) -
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
(Black)GEAR HOUSING ASSEMBLY, Basic-Black
(Black) -
241121 SLEEVESLEEVE
-
326-99325 SEALSEAL
-
431-41326 BEARING, RollerBEARING, Roller
-
517-8M0084726 PIN, Dowel (.187 x .530)PIN, Dowel (.187 x .530)
-
610-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
712-191833 WASHERWASHER
-
835-41133 SCREEN, Water Inlet PortSCREEN, Water Inlet Port
-
910-40031112 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1010-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
1022-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
1112-191833 WASHERWASHER
-
1235-41134 SCREENSCREEN
-
1311-401365 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1431-98294A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
15NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1610-49908 SCREW, (.250-28 x .750)SCREW, (.250-28 x .750)
-
1743-98302 GEAR, Pinion (12 Teeth)GEAR, Pinion (12 Teeth)
-
1827-993261 GASKETGASKET
-
1985083 FACE PLATEFACE PLATE
-
2012-866451 WASHERWASHER
-
2128-8M0032838 KEYKEY
-
2247-8508910 IMPELLERIMPELLER
-
2312-866451 WASHERWASHER
-
2425-69202 O-RINGO-RING
-
2546-99157A02 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
26NSS NOT SOLD SEPARATE, InsertNOT SOLD SEPARATE, Insert
-
2726-85090001 SEALSEAL
-
2825-86203 O-RING, RubberO-RING, Rubber
-
2910-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
3012-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3167-851263 SHIFT SHAFT
(Short Shaft)SHIFT SHAFT
(Short Shaft) -
31862933 SHIFT SHAFT
(Long Shaft)SHIFT SHAFT
(Long Shaft) -
3245-99199 DRIVESHAFT
(Short Shaft)DRIVESHAFT
(Short Shaft) -
3245-99198 DRIVESHAFT
(Long Shaft)DRIVESHAFT
(Long Shaft) -
3385552001 BOOTBOOT
-
3493878 RETAINERRETAINER
-
3525-35276 O-RING, (.734 x .139)
(.734 x .139)O-RING, (.734 x .139)
(.734 x .139) -
3625-85594 O-RING, (.239 x .174)
(.239 x .174)O-RING, (.239 x .174)
(.239 x .174) -
3712-85091 WASHERWASHER
-
3824-93007 SPRINGSPRING
-
3912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4017-85593 PIN, (.078 x .437)PIN, (.078 x .437)
-
4185562A2 SHIFT CAMSHIFT CAM
-
4217-85096 PIN, DrivePIN, Drive
-
4323-29804T SLEEVESLEEVE
-
-27-41499A88 GASKET SETGASKET SET
-
-26-85090A2 SEAL KITSEAL KIT
-
-46-99157T2 PUMP KIT, WaterPUMP KIT, Water
