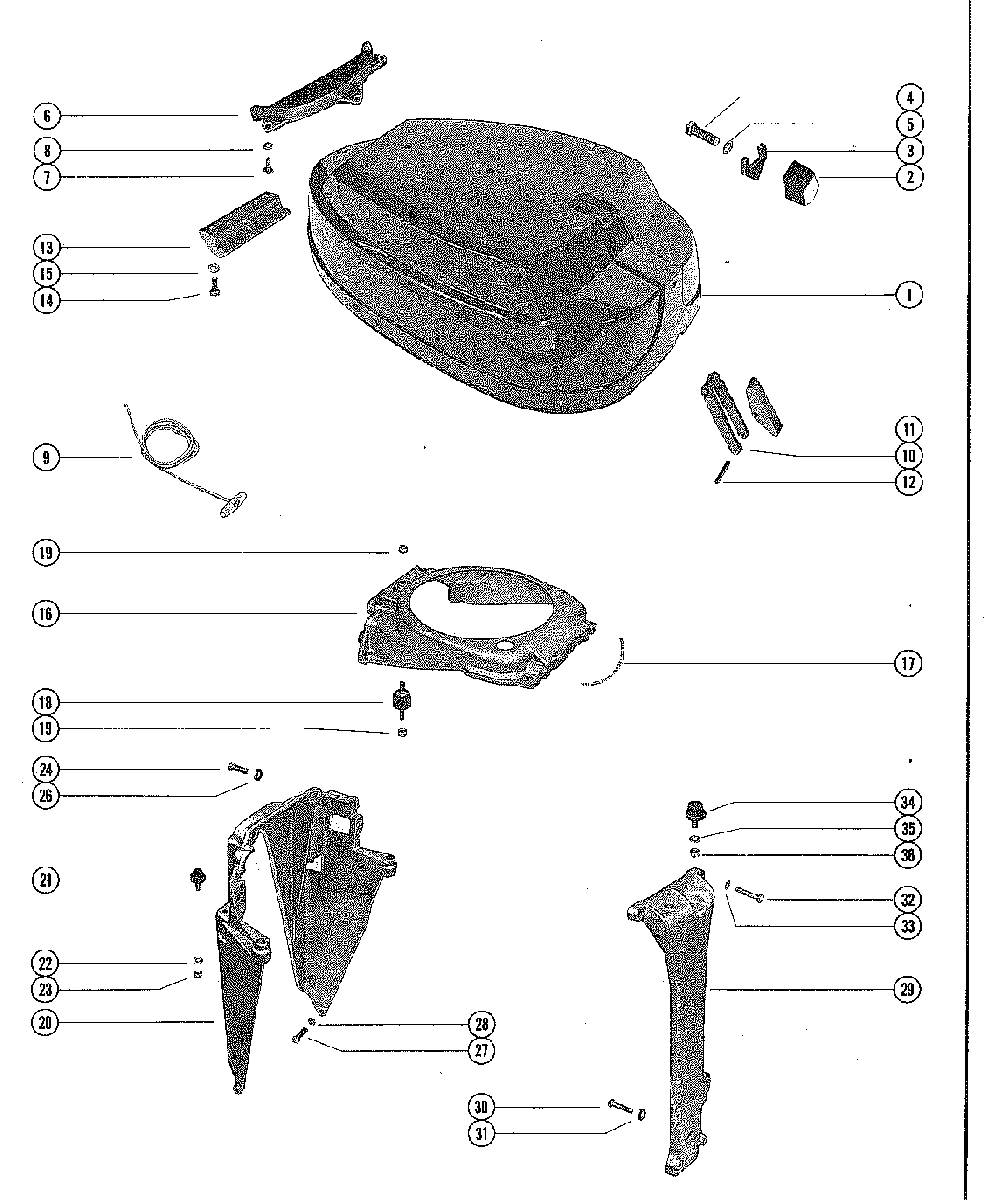

TOP COWL AND SUPPORT BRACKETS для Mercury - 1400, 140 7112773 THRU 7132512
-
№АртикулНазвание
-
12114-7934T COWL, TOP (WITHOUT DECALS)COWL, TOP (WITHOUT DECALS)
-
252733A9 RETAINER ASSEMBLY, TOP COWLRETAINER ASSEMBLY, TOP COWL
-
335496 PAD, BUMPER - TOP COWL RETAINERPAD, BUMPER - TOP COWL RETAINER
-
410-74824 SCREW, RETAINER TO TOP COWL (1 1/4")SCREW, RETAINER TO TOP COWL (1 1/4")
-
513-39107 LOCKWASHER, RETAINER TO TOP COWL SCREWLOCKWASHER, RETAINER TO TOP COWL SCREW
-
676370 SHIELD, TOP COWL - REARSHIELD, TOP COWL - REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
947341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
1052739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1194918F1 LEVER, COWL LATCHHINGELEVER, COWL LATCHHINGE
-
1217-58998 PIN, ROLL - COWL LATCH LEVER TO HINGEPIN, ROLL - COWL LATCH LEVER TO HINGE
-
1355455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
1410-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1513-26992 LOCKWASHER, REAR HOOK MOUNTING SCREWLOCKWASHER, REAR HOOK MOUNTING SCREW
-
1679897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5189787 AND BELOW
AUSTRALIA 8052879 AND BELOW
CANADA 7125012 AND BELOWFRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5189787 AND BELOW
AUSTRALIA 8052879 AND BELOW
CANADA 7125012 AND BELOW -
1679897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5189788 AND UP
CANADA 7125013 AND UPFRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5189788 AND UP
CANADA 7125013 AND UP -
1737-73291 DECAL, TIMING (FLYWHEEL)
UNITED STATES 5189787 AND BELOW
AUSTRALIA 8052879 AND BELOW
CANADA 7125012 AND BELOWDECAL, TIMING (FLYWHEEL)
UNITED STATES 5189787 AND BELOW
AUSTRALIA 8052879 AND BELOW
CANADA 7125012 AND BELOW -
1890435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
1846096 MOUNT, RUBBER
TOP COWL FRAME (HEAVY DUTY)MOUNT, RUBBER
TOP COWL FRAME (HEAVY DUTY) -
1911-35888 NUT, RUBBER MOUNT TO TOP COWL FRAMENUT, RUBBER MOUNT TO TOP COWL FRAME
-
2086472 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
2131014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2213-26992 LOCKWASHER
RUBBER MOUNT TO REAR SUPPORT BRACKETLOCKWASHER
RUBBER MOUNT TO REAR SUPPORT BRACKET -
2311-29598 NUT
RUBBER MOUNT TO REAR SUPPORT BRACKETNUT
RUBBER MOUNT TO REAR SUPPORT BRACKET -
2410-37562 SCREW, REAR BRACKET TO FRAME (1")SCREW, REAR BRACKET TO FRAME (1")
-
2613-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
2710-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")SCREW, REAR BRACKET TO BOTTOM COWL (1")
-
2813-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
2942706A1 BRACKET ASSEMBLY, TOP COWL - FRONTBRACKET ASSEMBLY, TOP COWL - FRONT
-
3010-60411 SCREW, FRONT BRACKET TO BOTOM COWL (1 1/4")SCREW, FRONT BRACKET TO BOTOM COWL (1 1/4")
-
3113-26992 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3210-55511 SCREW
FRONT BRACKET TO TOP COWL FRAME (1 1/2")SCREW
FRONT BRACKET TO TOP COWL FRAME (1 1/2") -
3313-26993 LOCKWASHER
FRONT SUPPORT BRACKET SCREWLOCKWASHER
FRONT SUPPORT BRACKET SCREW -
3437640 MOUNT, RUBBER FRONT SUPPORT BRACKETMOUNT, RUBBER FRONT SUPPORT BRACKET
-
3513-26993 LOCKWASHER
RUBBER MOUNT TO FRONT SUPPORT BRACKETLOCKWASHER
RUBBER MOUNT TO FRONT SUPPORT BRACKET -
3611-28770 NUT
RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT
RUBBER MOUNT TO FRONT SUPPORT BRACKET
