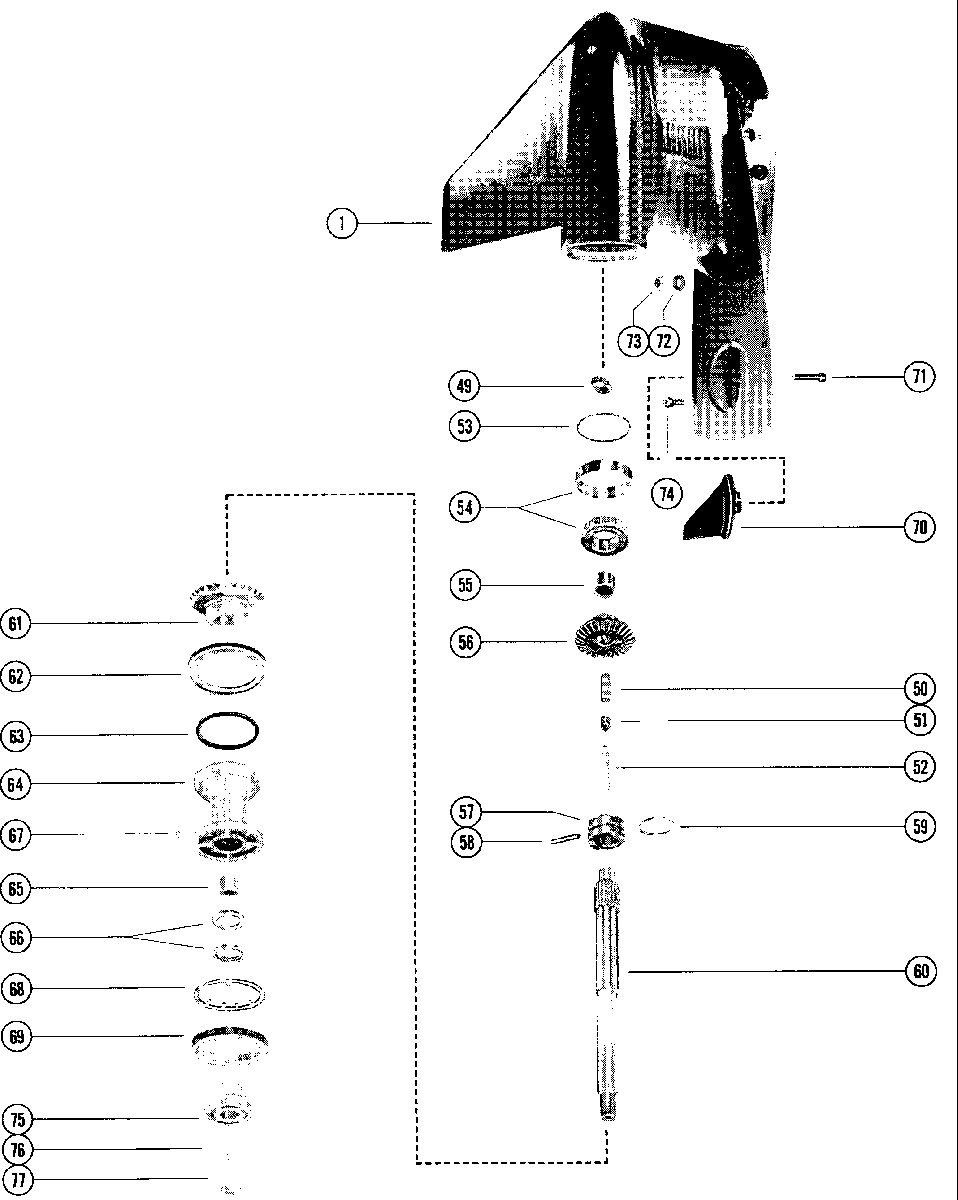

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 1400, 140 7112773 THRU 7132512

  • №
    Артикул
    Название
  • 1655-7333T24 GEAR HOUSING ASS'Y, COMP. SEE NOTE BELOW
    GEAR HOUSING ASS'Y, COMP. SEE NOTE BELOW
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    UNITED STATES 5189787 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    CANADA 7125012 AND BELOW
    GEAR HOUSING ASS'Y
    UNITED STATES 5189787 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    CANADA 7125012 AND BELOW
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    UNITED STATES 5189788 AND UP
    CANADA 7125013 AND UP
    GEAR HOUSING ASS'Y
    UNITED STATES 5189788 AND UP
    CANADA 7125013 AND UP
  • 49
    760394 CAM, SHIFT
    UNITED STATES 5189787 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    CANADA 7125012 AND BELOW
    CAM, SHIFT
    UNITED STATES 5189787 AND BELOW
    AUSTRALIA 8052879 AND BELOW
    CANADA 7125012 AND BELOW
  • 49
    760394 CAM, SHIFT
    UNITED STATES 5189788 AND UP
    CANADA 7125013 AND UP
    CAM, SHIFT
    UNITED STATES 5189788 AND UP
    CANADA 7125013 AND UP
  • 50
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 51
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 52
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 53
    15-30923A1 SHIM
    BEARING OUTER RACE TO HOUSING (.002-3-5-10)
    SHIM
    BEARING OUTER RACE TO HOUSING (.002-3-5-10)
  • 54
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 55
    31-30895T BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 56
    43-68447T1 FORWARD GEAR
    FORWARD GEAR
  • 57
    52-822539T RATCHET, SLIDING GEAR
    RATCHET, SLIDING GEAR
  • 58
    17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 59
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 60
    44-93003 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 61
    43-76250T REVERSE GEAR
    REVERSE GEAR
  • 62
    12-76358 WASHER
    THRUST - BEARING CARRIER TO GEAR HOUSING
    WASHER
    THRUST - BEARING CARRIER TO GEAR HOUSING
  • 63
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 64
    41529T2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 65
    31-30956T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 66
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 67
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 68
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 69
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 70
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 71
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 72
    12-45176 WASHER
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 73
    11-34933 NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT
    GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 74
    10-65210 SCREW
    GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW
    GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 75
    13191Q01 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 76
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 77
    11-52707Q1 NUT, PROPELLER
    NUT, PROPELLER
  • -
    27-85653A87 GASKET SET
    GASKET SET
