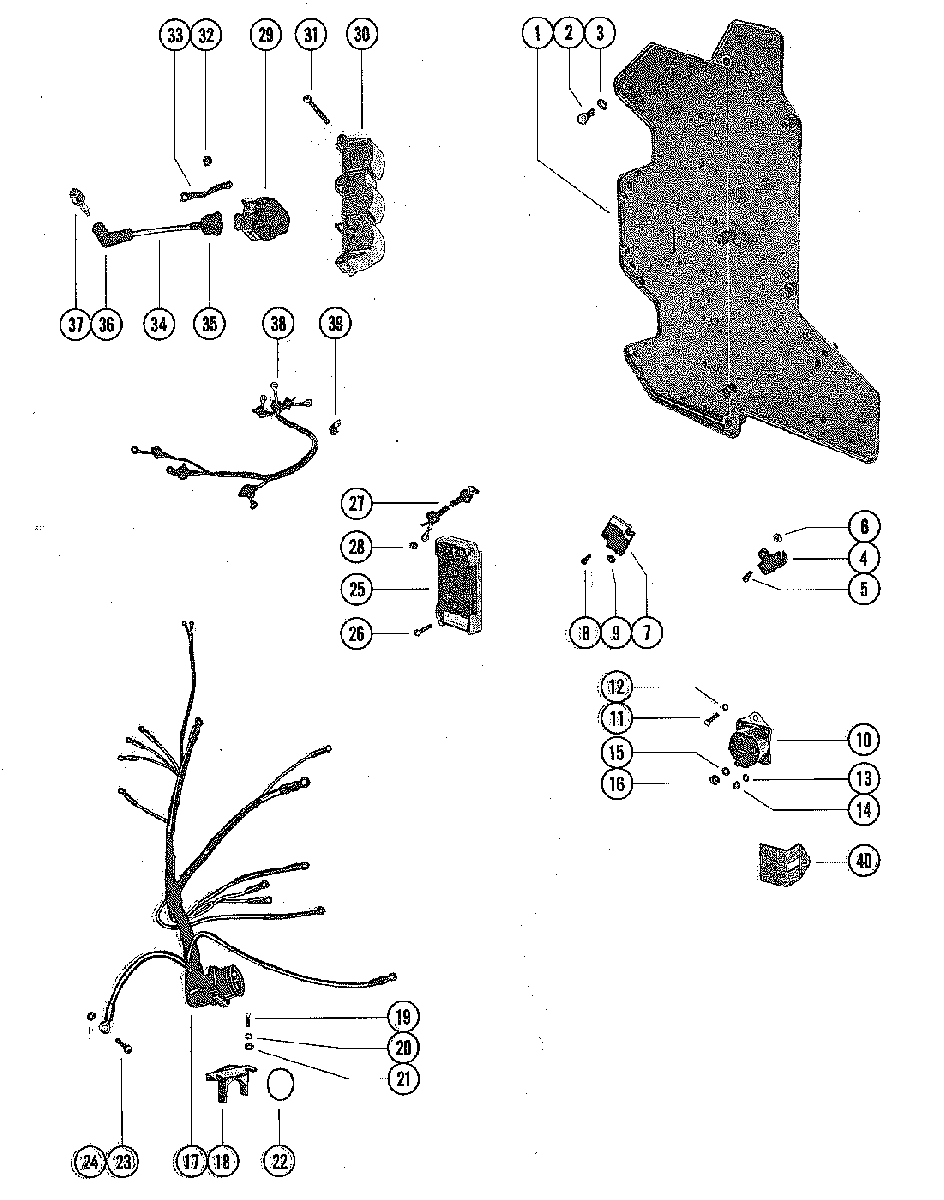

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercury - 140 5327663 THRU 5625107

  • №
    Артикул
    Название
  • 1
    89748T PLATE, ELECTRICAL MOUNTING
    PLATE, ELECTRICAL MOUNTING
  • 2
    10-86885 SCREW, PLATE TO CYLINDER BLOCK (1 1/2")
    SCREW, PLATE TO CYLINDER BLOCK (1 1/2")
  • 2
    10-28636 SCREW, PLATE TO CYLINDER BLOCK (3/4")
    SCREW, PLATE TO CYLINDER BLOCK (3/4")
  • 2
    10-28667 SCRWE, PLATE TO CYLINDER BLOCK (1")
    SCRWE, PLATE TO CYLINDER BLOCK (1")
  • 3
    12-29245 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
  • 4
    87-33386A3 SWITCH ASSEMBLY, MERCURY
    SWITCH ASSEMBLY, MERCURY
  • 5
    10-25764 SCREW, MERCURY SWITCH TO PLATE (5/8")
    SCREW, MERCURY SWITCH TO PLATE (5/8")
  • 6
    11-45076 NUT, WIRE TO MERCURY SWITCH
    NUT, WIRE TO MERCURY SWITCH
  • 7
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 8
    10-25764 SCREW, RECTIFIER TO IGNITION PLATE (5/8")
    SCREW, RECTIFIER TO IGNITION PLATE (5/8")
  • 9
    11-45076 NUT, RECTIFIER TERMINALS
    NUT, RECTIFIER TERMINALS
  • 10
    89-853654A1 SOLENOID, STARTER
    SOLENOID, STARTER
  • 11
    10-38601 SCREW, STARTER SOLENOID TO PLATE (1/2")
    SCREW, STARTER SOLENOID TO PLATE (1/2")
  • 12
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 13
    13-26996 LOCKWASHER, SOLENOID TERMINALS (#10)
    LOCKWASHER, SOLENOID TERMINALS (#10)
  • 14
    11-68219 NUT, SOLENOID TERMINALS (10-32)
    NUT, SOLENOID TERMINALS (10-32)
  • 15
    13-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")
    LOCKWASHER, SOLENOID TERMINALS (5/16")
  • 16
    11-68292 NUT, SOLENOID TERMINALS (5/16 - 18)
    NUT, SOLENOID TERMINALS (5/16 - 18)
  • 17
    84-85532A1 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 18
    54-76368 CLAMP, WIRING HARNESS TO BOTTOM COWL
    CLAMP, WIRING HARNESS TO BOTTOM COWL
  • 19
    10-690201 SCREW
    WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
    SCREW
    WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
  • 20
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 21
    12-30164 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 22
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 23
    10-98256 SCREW, GROUND WIRE TO BOTTOM COWL
    SCREW, GROUND WIRE TO BOTTOM COWL
  • 24
    13-26992 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 25
    332-7778A12 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 26
    10-26251 SCREW, SWITCH BOX TO IGNITION COIL (7/8")
    SCREW, SWITCH BOX TO IGNITION COIL (7/8")
  • 27
    84-62310A3 CABLE ASS'Y
    SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)
    CABLE ASS'Y
    SWITCH BOX TO SWITCH BOX (WHITE AND BLACK)
  • 28
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 29
    339-832757A4 COIL ASSEMBLY, IGNITION
    COIL ASSEMBLY, IGNITION
  • 30
    43542 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 31
    10-88856 SCREW, IGNITION COIL COVER (2")
    SCREW, IGNITION COIL COVER (2")
  • 32
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 33
    84-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)
    CABLE ASSEMBLY, IGNITION COIL (BLACK)
  • 34
    84-813715A1 CABLE, HIGH TENSION
    CABLE, HIGH TENSION
  • 35
    332-2854T01 BOOT, HIGH TENSION CABLE
    BOOT, HIGH TENSION CABLE
  • 36
    85-63709A1 PROTECTOR, HIGH TENSION CABLE
    PROTECTOR, HIGH TENSION CABLE
  • 37
    33-97180Q SPARK PLUG (CHAMPION #L76-V)
    SPARK PLUG (CHAMPION #L76-V)
  • 38
    84-85537A2 HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#2, 4 AND 6)
    HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#2, 4 AND 6)
  • 38
    84-85537A1 HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#1,3 AND 5)
    HARNESS ASSEMBLY
    COIL TO SWITCH BOX (#1,3 AND 5)
  • 39
    54-63153 CLIP, HARNESS TO COIL COVER
    CLIP, HARNESS TO COIL COVER
  • 40
    85-78866 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
