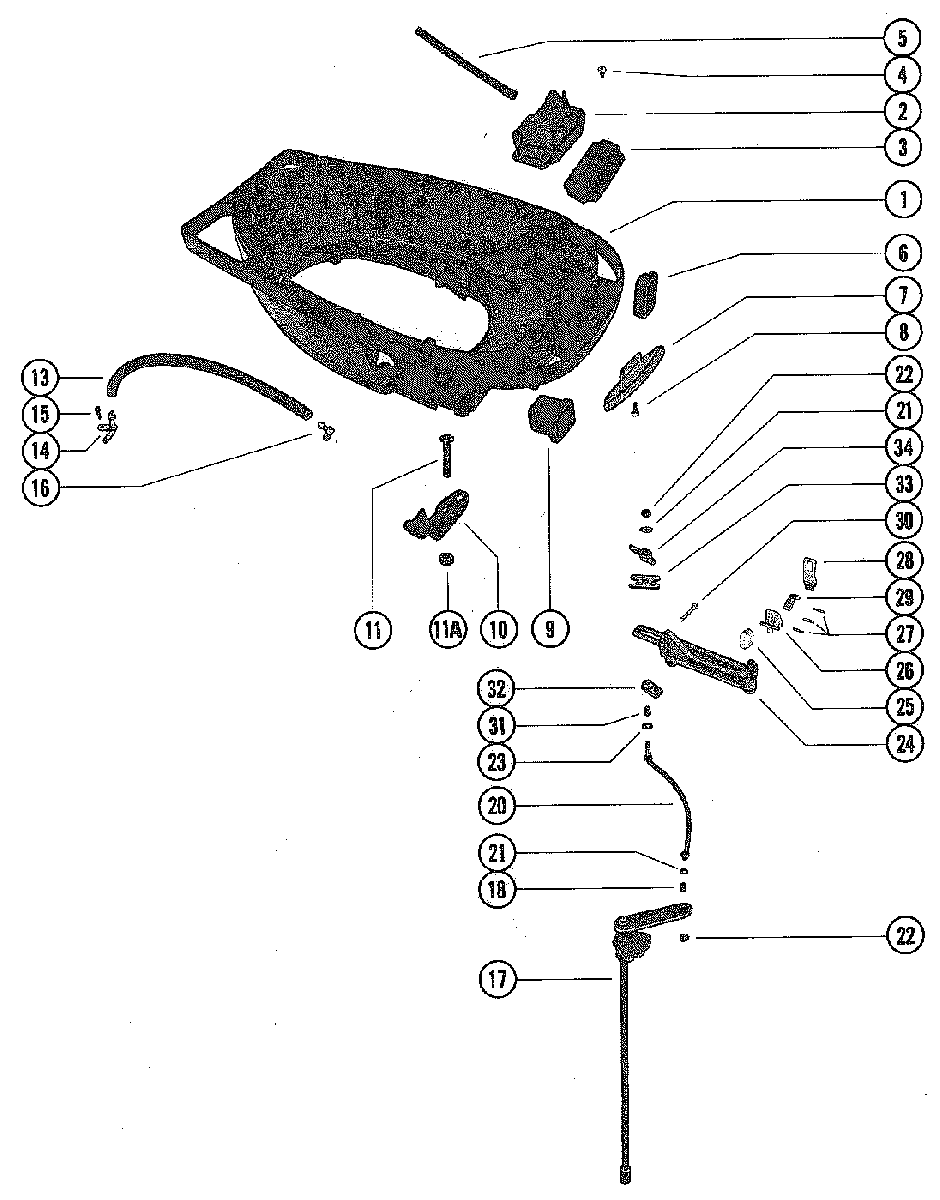

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 140 5327663 THRU 5625107
-
№АртикулНазвание
-
12115-8963A1 COWL, BOTTOMCOWL, BOTTOM
-
252862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
337940 PAD, SOUND - TRIP TRAYPAD, SOUND - TRIP TRAY
-
410-48408 SCREW, DRIP TRAY TO BOTTOM COWLSCREW, DRIP TRAY TO BOTTOM COWL
-
532-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")HOSE, DRIP TRAY TO BOTTOM COWL (8")
-
639616 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
776369 SPACER, BOTTOM COWL (COWL FRONT COVER)SPACER, BOTTOM COWL (COWL FRONT COVER)
-
810-48591 SCREW, SPACER TO BOTTOM COWL (1/2")SCREW, SPACER TO BOTTOM COWL (1/2")
-
937637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1037445 SUPPORT, WIRING HARNESS - BOTTOM COWLSUPPORT, WIRING HARNESS - BOTTOM COWL
-
1110-69029 SCREW, SUPPORT TO BOTTOM COWL (1 3/4")SCREW, SUPPORT TO BOTTOM COWL (1 3/4")
-
11A11-36069 NUT, SUPPORT SCREWNUT, SUPPORT SCREW
-
1332-8M0108355 HOSE
TELL TALE - EXHAUST COVER TO BOTTOM COWL (21 1/2")HOSE
TELL TALE - EXHAUST COVER TO BOTTOM COWL (21 1/2") -
1452889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1510-48408 SCREW
TELL TALE NOZZLE TO BOTTOM COWL (1/2")SCREW
TELL TALE NOZZLE TO BOTTOM COWL (1/2") -
1622-782792 ELBOW, TELL TALE HOSE TO CYLINDER BLOCKELBOW, TELL TALE HOSE TO CYLINDER BLOCK
-
1760304A54 SHIFT SHAFT ASSEMBLY, UPPERSHIFT SHAFT ASSEMBLY, UPPER
-
1823-26600 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
2073402 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2112-35462 WASHER, LINK RODWASHER, LINK ROD
-
2211-826709109 NUT, LINK RODNUT, LINK ROD
-
2313-29720 WASHER, WAVE - LINK RODWASHER, WAVE - LINK ROD
-
2452732A6 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
2539519 CAP, BARREL RETAINER - ANCHOR BRACKETCAP, BARREL RETAINER - ANCHOR BRACKET
-
2687609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
2717-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2839667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
2987609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
3010-35386 SCREW
ANCHOR BRACKET TO CYLINDER BLOCK (1")SCREW
ANCHOR BRACKET TO CYLINDER BLOCK (1") -
3124-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
3237896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
3352100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
348M0036768 LATCH
CONTROL CABLE FASTENING - ANCHOR BRACKETLATCH
CONTROL CABLE FASTENING - ANCHOR BRACKET
