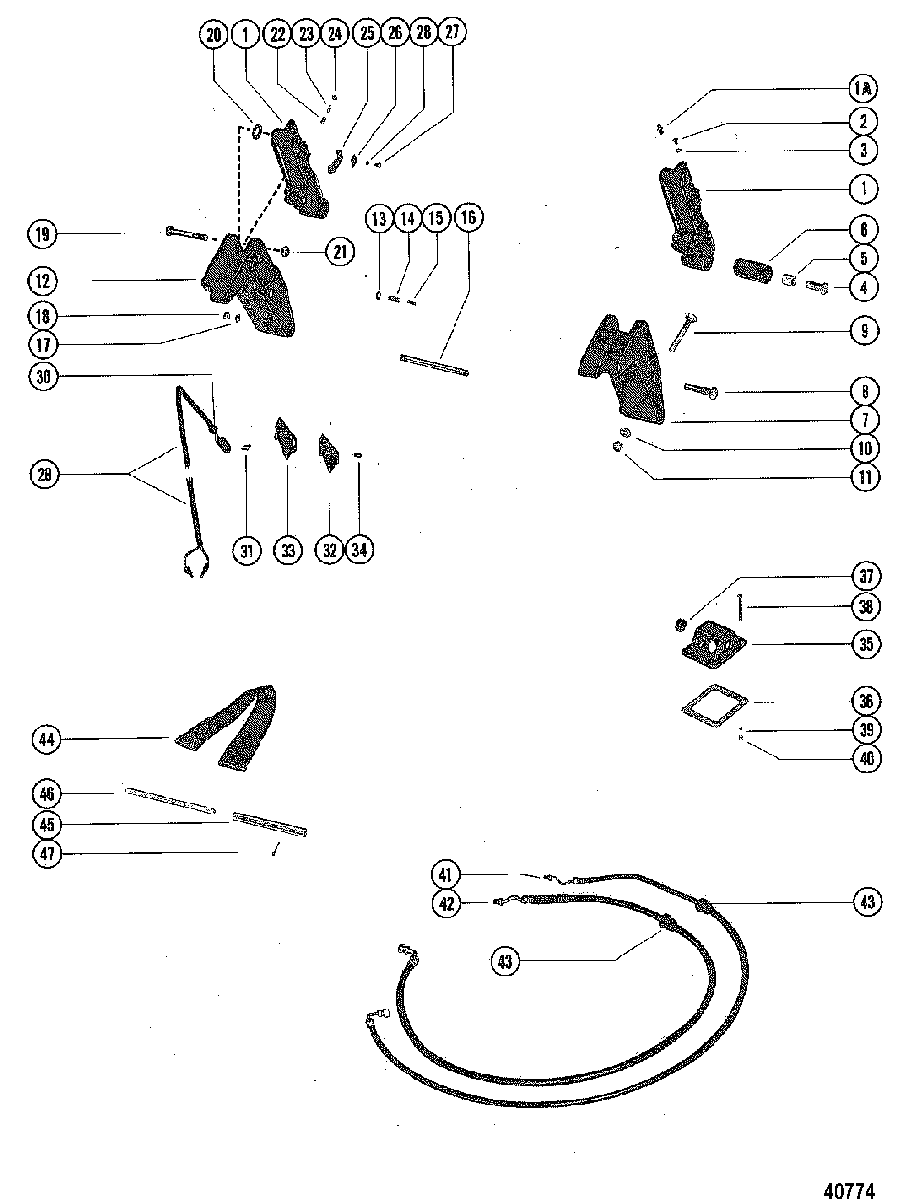

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 1150 7010763 THRU 7112248

  • №
    Артикул
    Название
  • 1
    45194A9 TRIM CYLINDER ASSEMBLY
    TRIM CYLINDER ASSEMBLY
  • 1
    92194A14 TRIM CYLINDER
    TRIM CYLINDER
  • 1A
    22-74036 FITTING, Grease (USE WITH A-76509A3 TRIM CYLINDER)
    FITTING, Grease (USE WITH A-76509A3 TRIM CYLINDER)
  • 2
    10-45265 SCREW, (#10-32 x .3125), BLEED - SHOCK CYLINDER
    SCREW, (#10-32 x .3125), BLEED - SHOCK CYLINDER
  • 3
    25-45016 O-RING, SHOCK CYLINDER BLEED SCREW
    O-RING, SHOCK CYLINDER BLEED SCREW
  • 4
    10-45264 SCREW, (.500-20 x 1.500)
    SCREW, (.500-20 x 1.500)
  • 5
    23-45280 SPACER, SHOCK CYLINDER - LOWER
    SPACER, SHOCK CYLINDER - LOWER
  • 6
    23-94907A1 BUSHING, RUBBER - SHOCK CYLINDER
    BUSHING, RUBBER - SHOCK CYLINDER
  • 7
    89108A3 BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
    BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
  • 8
    10-45263 SCREW, (.500-20 x .2.250)
    SCREW, (.500-20 x .2.250)
  • 9
    10-68298 BOLT, (.375-16 x 3.250), MOUNTING BRACKET TO BOAT TRANSOM
    BOLT, (.375-16 x 3.250), MOUNTING BRACKET TO BOAT TRANSOM
  • 10
    12-46765 WASHER, MOUNTING BRACKET BOLT
    WASHER, MOUNTING BRACKET BOLT
  • 11
    11-82670912 NUT, (.375-16), MOUNTING BRACKET BOLT
    NUT, (.375-16), MOUNTING BRACKET BOLT
  • 12
    89807A1 BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)
    BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)
  • 13
    26-70608 SEAL, Oil, STARBOARD MOUNTING BRACKET
    SEAL, Oil, STARBOARD MOUNTING BRACKET
  • 14
    89290 PLUNGER, LIMIT SWITCH ACTUATING
    PLUNGER, LIMIT SWITCH ACTUATING
  • 15
    24-95881 SPRING, TENSION - LIMIT SWITCH PLUNGER
    SPRING, TENSION - LIMIT SWITCH PLUNGER
  • 16
    16-45282 STUD, (.312-24 x 16.620), MOUNTING BRACKET AND CLAMP BRACKET
    STUD, (.312-24 x 16.620), MOUNTING BRACKET AND CLAMP BRACKET
  • 17
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 18
    11-28770 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 19
    10-45328 SCREW, (.437-20 x 3.560)
    SCREW, (.437-20 x 3.560)
  • 20
    12-37807 WASHER
    WASHER
  • 21
    11-20696 NUT
    NUT
  • 22
    24-24390 SPRING, TENSION - ADJUSTING STUD
    SPRING, TENSION - ADJUSTING STUD
  • 23
    16-8M0034461 STUD, (#10-32 x .930)
    STUD, (#10-32 x .930)
  • 24
    11-859124 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 25
    99897 CAM, LIMIT SWITCH ADJUSTING STUD
    CAM, LIMIT SWITCH ADJUSTING STUD
  • 26
    86967 PLATE, RETAINING - LIMIT SWITCH CAM
    PLATE, RETAINING - LIMIT SWITCH CAM
  • 27
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 28
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 29
    45326A2 SWITCH ASSEMBLY, CUT-OUT LIMIT
    SWITCH ASSEMBLY, CUT-OUT LIMIT
  • 30
    23-45354 BUSHING, RUBBER
    BUSHING, RUBBER
  • 31
    10-47255 SCREW, (#4-40 x .625)
    SCREW, (#4-40 x .625)
  • 32
    45287 COVER, LIMIT SWITCH
    COVER, LIMIT SWITCH
  • 33
    27-45275 GASKET, LIMIT SWITCH COVER
    GASKET, LIMIT SWITCH COVER
  • 34
    10-24942 SCREW, (10-32 x 0.4375)
    SCREW, (10-32 x 0.4375)
  • 35
    87774A1 COVER, INLET - TRANSOM
    COVER, INLET - TRANSOM
  • 36
    27-45274 GASKET, INLET COVER
    GASKET, INLET COVER
  • 37
    25-45507 GROMMET, RUBBER - INLET COVER
    GROMMET, RUBBER - INLET COVER
  • 38
    10-32866 SCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOAT
    SCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOAT
  • 39
    12-20878 WASHER, INLET COVER SCREW
    WASHER, INLET COVER SCREW
  • 40
    11-826709106 NUT, (#10-32), INLET COVER SCREW
    NUT, (#10-32), INLET COVER SCREW
  • 41
    32-88005 HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.
    HOSE
    TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.
  • 42
    32-88006 HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. (#32-88006)
    HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. (#32-88006)
  • 43
    23-35977 GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
    GROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
  • 44
    73519A1 STRAP, Tilt Stop
    STRAP, Tilt Stop
  • 45
    63441 TUBE, MOUNTING - TILT STOP
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    TUBE, MOUNTING - TILT STOP
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 45
    69259 TUBE, MOUNTING - TILT STOP
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    TUBE, MOUNTING - TILT STOP
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 46
    17-63442 PIN, MOUNTING TUBE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    PIN, MOUNTING TUBE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 46
    69258 PIN, MOUNTING TUBE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    PIN, MOUNTING TUBE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 47
    18-36002 COTTER PIN, MOUNTING TUBE PIN
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    COTTER PIN, MOUNTING TUBE PIN
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
