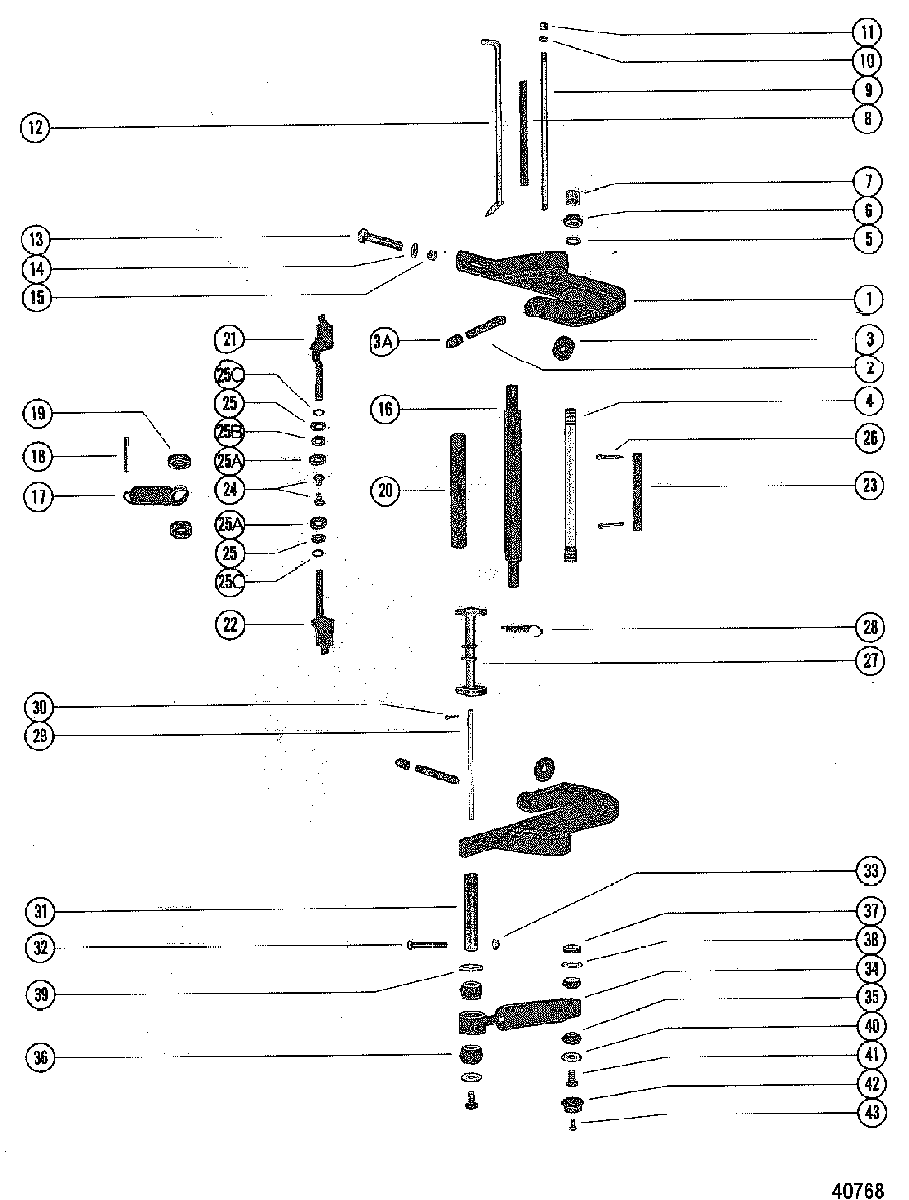

CLAMP BRACKET AND REVERSE LOCK для Mercury - 1150 7010763 THRU 7112248

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    CLAMP BRACKET ASSEMBLY
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522
    CLAMP BRACKET ASSEMBLY
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    SN# USA-4310785/Canada-7075523 & Up
    CLAMP BRACKET ASSEMBLY
    SN# USA-4310785/Canada-7075523 & Up
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    THUMB SCREW ASSEMBLY
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522
    THUMB SCREW ASSEMBLY
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    SN# USA-4310785/Canada-7075523 & Up
    THUMB SCREW ASSEMBLY
    SN# USA-4310785/Canada-7075523 & Up
  • 3
    12-28404 WASHER, THUMB SCREW
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    WASHER, THUMB SCREW
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 3
    12-70988 WASHER, THUMB SCREW
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522
    WASHER, THUMB SCREW
    SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4310784/Australia-8027439/Canada-7075522
  • 3A
    75043 CAP, THUMB SCREW
    SN# USA-4310785/Canada-7075523 & Up
    CAP, THUMB SCREW
    SN# USA-4310785/Canada-7075523 & Up
  • 4
    8M0041936 TUBE, TILT
    TUBE, TILT
  • 5
    12-52864 WASHER
    WASHER
  • 6
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 7
    53078 CAP, PLASTIC
    CAP, PLASTIC
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD (NOT USED WITH FULL POWER TRIM)
    STUD (NOT USED WITH FULL POWER TRIM)
  • 10
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 11
    11-28770 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 12
    17-8M0026068 PIN ASSEMBLY, Tilt Lock (NOT USED WITH FULL POWER TRIM)
    PIN ASSEMBLY, Tilt Lock (NOT USED WITH FULL POWER TRIM)
  • 13
    10-68298 BOLT, (.375-16 x 3.250), CLAMP BRACKET TO BOAT TRANSOM (LOWER)
    BOLT, (.375-16 x 3.250), CLAMP BRACKET TO BOAT TRANSOM (LOWER)
  • 13
    10-68299 SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO BOAT TRANSOM (UPPER)
    SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO BOAT TRANSOM (UPPER)
  • 14
    12-46765 WASHER (LOWER)
    WASHER (LOWER)
  • 14
    12-68300 WASHER, (..88 x .39 x .06) (UPPER)
    WASHER, (..88 x .39 x .06) (UPPER)
  • 15
    11-82670912 NUT, (.375-16)
    NUT, (.375-16)
  • 16
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 17
    24-94891 SPRING (NOT USED WITH FULL POWER TRIM)
    SPRING (NOT USED WITH FULL POWER TRIM)
  • 18
    17-38311 PIN (NOT USED WITH FULL POWER TRIM)
    PIN (NOT USED WITH FULL POWER TRIM)
  • 19
    23-28688 SPACER, RUBBER (NOT USED WITH FULL POWER TRIM)
    SPACER, RUBBER (NOT USED WITH FULL POWER TRIM)
  • 20
    63473 TUBE (USED WITH FULL POWER TRIM)-LONG SH
    (LONG SHAFT)
    TUBE (USED WITH FULL POWER TRIM)-LONG SH
    (LONG SHAFT)
  • 21
    76386 TILT LOCK ASSEMBLY, STARBOARD
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    TILT LOCK ASSEMBLY, STARBOARD
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 21
    76386 TILT LOCK ASSEMBLY (STARBOARD)
    SN# USA-4567952/Canada-7087423 & Up
    TILT LOCK ASSEMBLY (STARBOARD)
    SN# USA-4567952/Canada-7087423 & Up
  • 22
    76385T TILT LOCK ASSEMBLY, PORT
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    TILT LOCK ASSEMBLY, PORT
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 22
    76385T TILT LOCK ASSEMBLY (PORT)
    SN# USA-4567952/Canada-7087423 & Up
    TILT LOCK ASSEMBLY (PORT)
    SN# USA-4567952/Canada-7087423 & Up
  • 23
    47802 TUBE, TILT LOCK
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    TUBE, TILT LOCK
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 23
    79659 TUBE, TILT LOCK
    SN# USA-4567952/Canada-7087423 & Up
    TUBE, TILT LOCK
    SN# USA-4567952/Canada-7087423 & Up
  • 24
    23-47803 BUSHING
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    BUSHING
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 25
    13-69150 WAVE WASHER
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    WAVE WASHER
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 25
    13-69150 WAVE WASHER (STARBOARD SIDE ONLY)
    SN# USA-4567952/Canada-7087423 & Up
    WAVE WASHER (STARBOARD SIDE ONLY)
    SN# USA-4567952/Canada-7087423 & Up
  • 25A
    26-22734 SEAL, Oil
    SN# USA-4567952/Canada-7087423 & Up
    SEAL, Oil
    SN# USA-4567952/Canada-7087423 & Up
  • 25B
    12-76388 WASHER (STARBOARD SIDE ONLY)
    SN# USA-4567952/Canada-7087423 & Up
    WASHER (STARBOARD SIDE ONLY)
    SN# USA-4567952/Canada-7087423 & Up
  • 25C
    25-627021 O-RING, (.301 x .070)
    SN# USA-4567952/Canada-7087423 & Up
    O-RING, (.301 x .070)
    SN# USA-4567952/Canada-7087423 & Up
  • 26
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
  • 27
    87431 LOCK ASSEMBLY, Reverse (NOT USED WITH FULL POWER TRIM)
    LOCK ASSEMBLY, Reverse (NOT USED WITH FULL POWER TRIM)
  • 28
    24-29821 SPRING (NOT USED WITH FULL POWER TRIM)
    SPRING (NOT USED WITH FULL POWER TRIM)
  • 29
    56349 SHAFT (NOT USED WITH FULL POWER TRIM)
    SHAFT (NOT USED WITH FULL POWER TRIM)
  • 30
    18-45882 COTTER PIN (NOT USED WITH FULL POWER TRIM)
    COTTER PIN (NOT USED WITH FULL POWER TRIM)
  • 31
    55-696531 PIN, LOWER SHOCK MOUNTING
    (SHORT SHAFT)
    PIN, LOWER SHOCK MOUNTING
    (SHORT SHAFT)
  • 31
    55-28414 PIN, LOWER SHOCK MOUNTING
    (LONG SHAFT)
    PIN, LOWER SHOCK MOUNTING
    (LONG SHAFT)
  • 32
    10-21937 SCREW, LOWER SHOCK PIN
    (LONG SHAFT)
    SCREW, LOWER SHOCK PIN
    (LONG SHAFT)
  • 33
    11-20184 NUT, (1/4-28)
    (LONG SHAFT)
    NUT, (1/4-28)
    (LONG SHAFT)
  • 34
    55-58780A7 SHOCK ABSORBER (NOT USED WITH FULL POWER TRIM)
    SHOCK ABSORBER (NOT USED WITH FULL POWER TRIM)
  • 35
    23-32171 BUSHING, RUBBER (UPPER)(NOT USED WITH FULL POWER TRIM)
    BUSHING, RUBBER (UPPER)(NOT USED WITH FULL POWER TRIM)
  • 36
    23-28198 BUSHING, RUBBER (LOWER)(NOT USED WITH FULL POWER TRIM)
    BUSHING, RUBBER (LOWER)(NOT USED WITH FULL POWER TRIM)
  • 37
    23-28199 SPACER
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
    SPACER
    SN# USA-4394236/Australia-8027439/Canada-7075522 & Below
  • 37
    23-73203 BUSHING
    SN# USA-4394237/Canada-7075523 & Up
    BUSHING
    SN# USA-4394237/Canada-7075523 & Up
  • 38
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 39
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
  • 40
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 40
    12-69374 WASHER
    SN# USA-4567952/Canada-7087423 & Up
    WASHER
    SN# USA-4567952/Canada-7087423 & Up
  • 41
    10-69375A1 SCREW
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    SCREW
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 41
    10-69375 SCREW
    SN# USA-4567952/Canada-7087423 & Up
    SCREW
    SN# USA-4567952/Canada-7087423 & Up
  • 42
    70679 COVER
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    COVER
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • 43
    10-37655 SCREW, (#10-32 x .500)
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
    SCREW, (#10-32 x .500)
    SN# USA-4567951/Australia-8027439/Canada-7087422 & Below
  • -
    27-85653A87 GASKET SET
    GASKET SET
