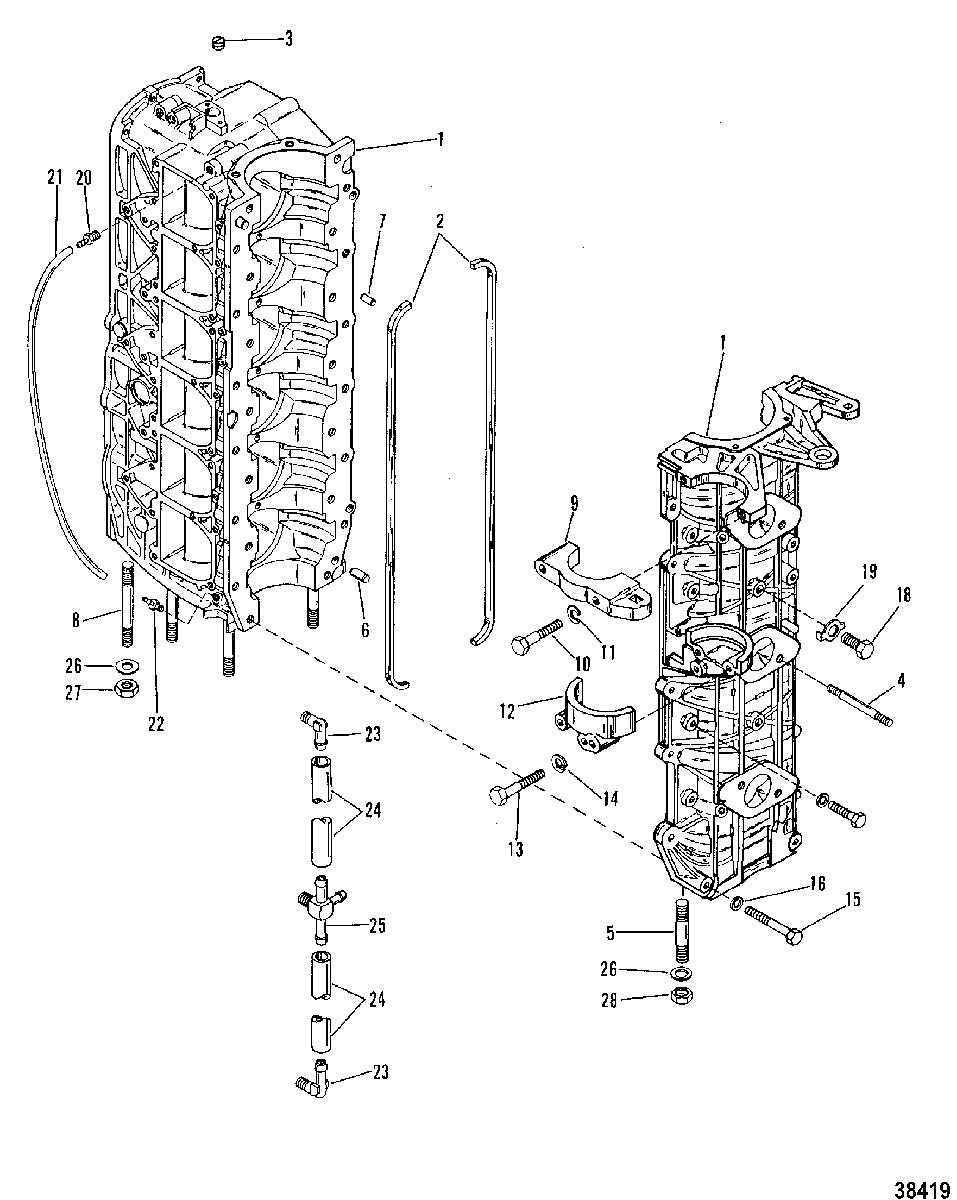

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 115 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
1852-8311A4 CYLINDER BLOCK ASSEMBLY
(90)CYLINDER BLOCK ASSEMBLY
(90) -
1852-8310A4 CYLINDER BLOCK ASSEMBLY
(115)CYLINDER BLOCK ASSEMBLY
(115) -
227-53862 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
366517 RESTRICTOR, CRANKCASE BLEEDRESTRICTOR, CRANKCASE BLEED
-
416-64936 STUD, CARBURETOR (1-1/4")STUD, CARBURETOR (1-1/4")
-
516-64281 STUD, (.375-16/.375-24 x 1.880)STUD, (.375-16/.375-24 x 1.880)
-
617-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCKPIN, Dowel, CRANKCASE TO CYLINDER BLOCK
-
717-63779 PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARINGPIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING
-
816-64282 STUD, (4 In.), CYLINDER BLOCK TO PLATE (4")STUD, (4 In.), CYLINDER BLOCK TO PLATE (4")
-
986473 COVER, STARTER MOTOR - TOPCOVER, STARTER MOTOR - TOP
-
1010-73279 SCREW, (.312-18 x 1.880), TOP COVERSCREW, (.312-18 x 1.880), TOP COVER
-
1113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1276867 COVER, BOTTOMCOVER, BOTTOM
-
1310-73279 SCREW, (.312-18 x 1.880), BOTTOM COVERSCREW, (.312-18 x 1.880), BOTTOM COVER
-
1413-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1510-57841 SCREW, (.312-18 x 2.750), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 2.750), CRANKCASE TO CYLINDER BLOCK
-
1510-73657 SCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCK
-
1510-74824 SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
-
1612-26020 WASHERWASHER
-
1810-20359 SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKINGSCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING
-
1914-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
2021-42866 CHECK VALVE, BLEED HOSE - UPPERCHECK VALVE, BLEED HOSE - UPPER
-
2132-9938779 HOSE, BLEED (22")HOSE, BLEED (22")
-
2221-428671 CHECK VALVE, BLEED HOSE - LOWERCHECK VALVE, BLEED HOSE - LOWER
-
2322-996642 ELBOW, BALANCE HOSEELBOW, BALANCE HOSE
-
2432-8M0108355 LINE, (57.00 Inches Bulk) (6-1/4")LINE, (57.00 Inches Bulk) (6-1/4")
-
2522-97231 TEE, BLEED HOSETEE, BLEED HOSE
-
2612-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2711-82671013 NUT, (.375-24), POWERHEAD STUDSNUT, (.375-24), POWERHEAD STUDS
-
2811-69254 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
-97472A32 POWERHEAD ASSEMBLY
(90)POWERHEAD ASSEMBLY
(90) -
-42110A83 POWERHEAD ASSEMBLY
(115)POWERHEAD ASSEMBLY
(115) -
-27-85653A87 GASKET SETGASKET SET
