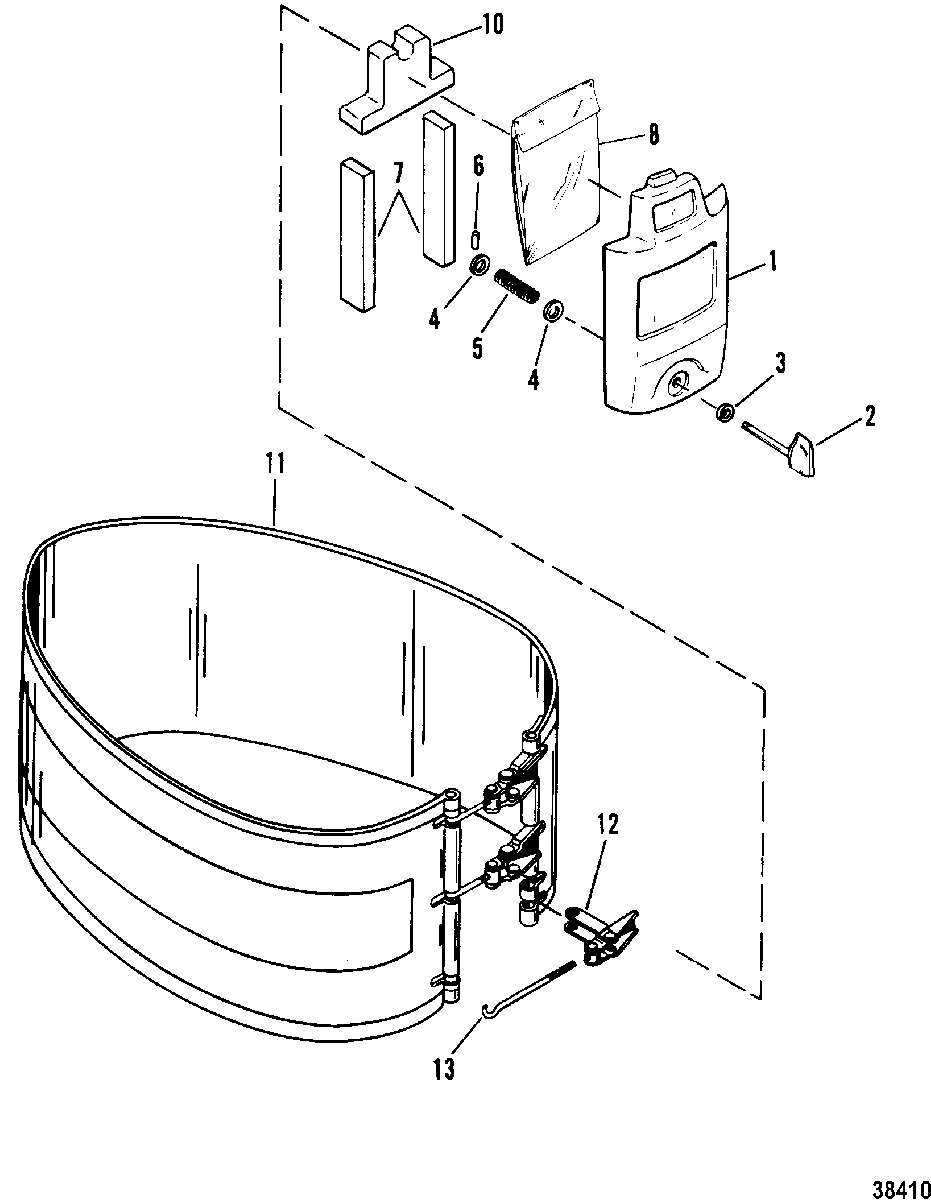

COWLING AND FRONT COVER(GRAY) для Mercury - 115 (6 CYL.) 7208848 & Up
-
№АртикулНазвание
-
12171-6497A7 FRONT COVERFRONT COVER
-
256849 KNOB, FRONT COVERKNOB, FRONT COVER
-
312-30771 WASHER, COVER KNOB (RUBBER)WASHER, COVER KNOB (RUBBER)
-
412-59572 WASHER, COVER KNOB (PLASTIC)WASHER, COVER KNOB (PLASTIC)
-
524-30772 SPRING, TENSION - KNOBSPRING, TENSION - KNOB
-
617-29077 PIN, Roll, TENSION SPRING TO KNOBPIN, Roll, TENSION SPRING TO KNOB
-
777790 STRIP, SOUNGSTRIP, SOUNG
-
838674 BLANKET, STARTER ROPEBLANKET, STARTER ROPE
-
1077544 SEAL, SOUND - TOPSEAL, SOUND - TOP
-
112172-6498A9 WRAP AROUND COWLWRAP AROUND COWL
-
1246785A1 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1330413 HOOK, COWL LATCHHOOK, COWL LATCH
