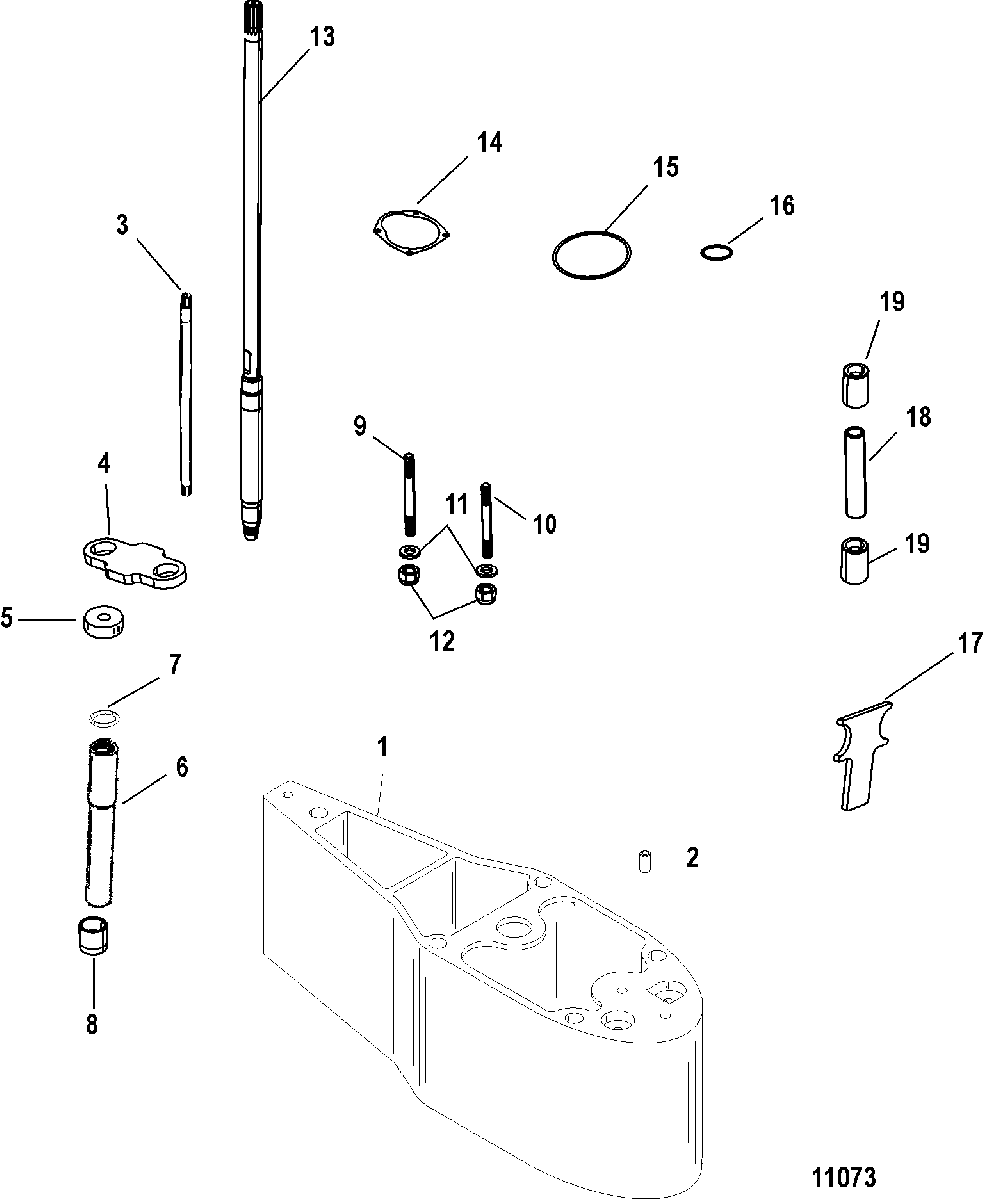

Extension Kit для Mercury - 115 (4 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • -
    12092A13 EXTENSION KIT, Black
    EXTENSION KIT, Black
  • 1
    12092A3 SPACER KIT, Black
    SPACER KIT, Black
  • 2
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625)
    PIN, Dowel - With Hole (.375 x .625)
  • 3
    853908A1 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 4
    11288001 BUMPER, Bottom Yoke
    BUMPER, Bottom Yoke
  • 5
    23-11289 SPACER
    SPACER
  • 6
    17243A1 TUBE ASSEMBLY, Water - Extension
    TUBE ASSEMBLY, Water - Extension
  • 7
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 8
    26-38970 SEAL
    SEAL
  • 9
    16-903503 STUD, (M10 x 190)
    STUD, (M10 x 190)
  • 10
    16-903502 STUD, (M10 x 227)
    STUD, (M10 x 227)
  • 11
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 12
    11-40140 NUT, (M10)
    NUT, (M10)
  • 13
    45-43032A4 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 14
    27-430341 GASKET, Aluminum Cover
    GASKET, Aluminum Cover
  • 15
    25-861844 O-RING, (3.609 x .139)
    O-RING, (3.609 x .139)
  • 16
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 17
    88882 BUMPER, Top Yoke
    BUMPER, Top Yoke
  • 18
    32-8M4501430 TUBE, Water
    TUBE, Water
  • 19
    430232 SEAL
    SEAL
