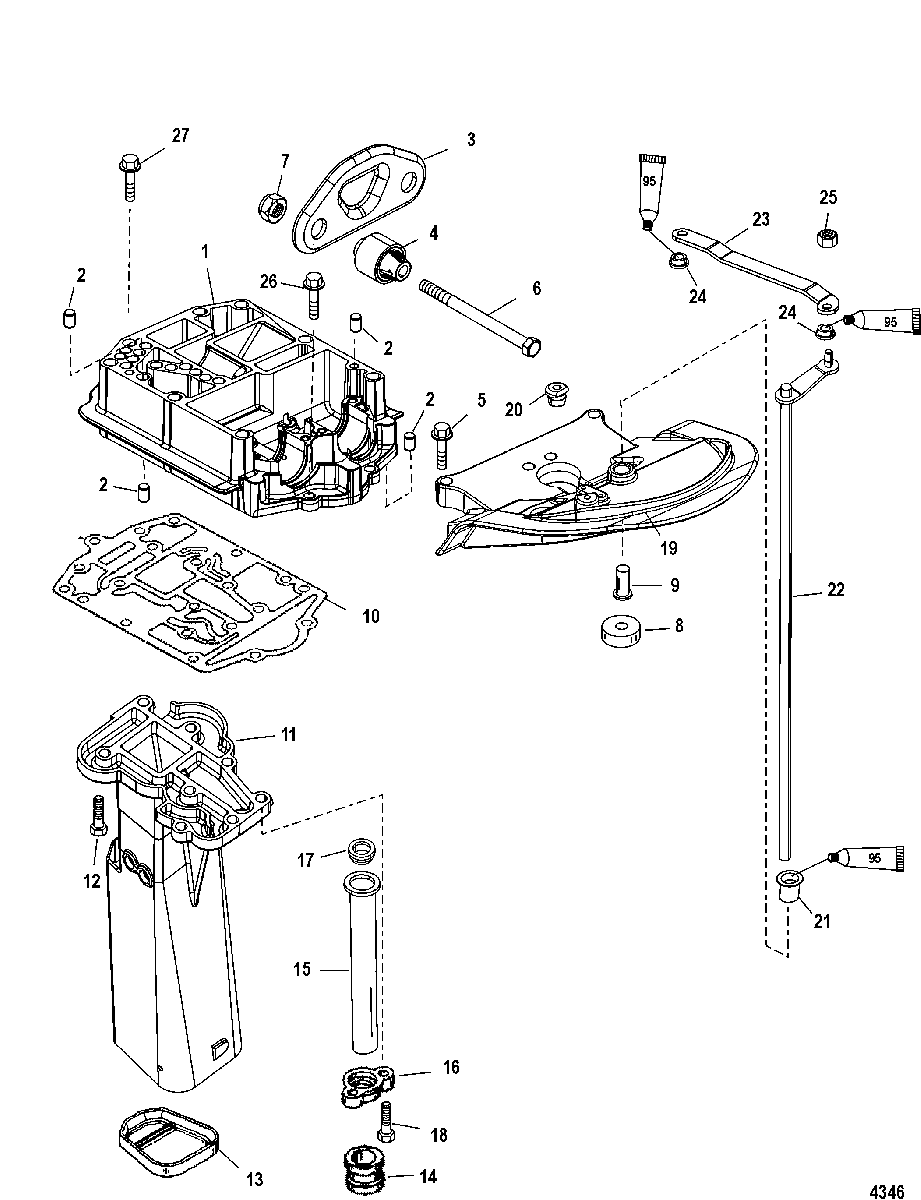

Exhaust Plate для Mercury - 115 (4 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    881912T01 PLATE, Exhaust
    PLATE, Exhaust
  • 2
    17-23784 PIN, Dowel
    PIN, Dowel
  • 3
    881973 RETAINER
    RETAINER
  • 4
    881915002 MOUNT
    MOUNT
  • 5
    10-881975 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 6
    10-898487 BOLT, (M12 x 175)
    BOLT, (M12 x 175)
  • 7
    11-896963 NUT, (M12)
    NUT, (M12)
  • 8
    23-813745 SPACER (Long)
    Model Length Designation Long=20 In.
    SPACER (Long)
    Model Length Designation Long=20 In.
  • 8
    23-11289 SPACER (X-Long)
    Model Length Designation X Long=25 In.
    SPACER (X-Long)
    Model Length Designation X Long=25 In.
  • 9
    43585 COUPLING
    COUPLING
  • 10
    27-430086 GASKET
    GASKET
  • 11
    42966T07 TUBE, Exhaust
    TUBE, Exhaust
  • 12
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 13
    8M0039075 SEAL
    SEAL
  • 14
    25-89417004 GROMMET
    GROMMET
  • 15
    32-8M0042791 TUBE, Water - Long (13.21 Inches)
    TUBE, Water - Long (13.21 Inches)
  • 15
    32-8M0042792 TUBE, Water - X Long (18.21 Inches)
    TUBE, Water - X Long (18.21 Inches)
  • 16
    824661 CLAMP
    CLAMP
  • 17
    814080001 SEAL (Upper)
    SEAL (Upper)
  • 18
    10-889833045 SCREW, (M8 x 45)
    SCREW, (M8 x 45)
  • 19
    881918T03 CLAMP
    CLAMP
  • 20
    25-19565002 GROMMET
    GROMMET
  • 21
    23-48237 BUSHING
    BUSHING
  • 22
    79932A20 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 23
    42912A3 SHIFT LINK
    SHIFT LINK
  • 24
    23-48475 BUSHING
    BUSHING
  • 25
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 26
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 27
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
