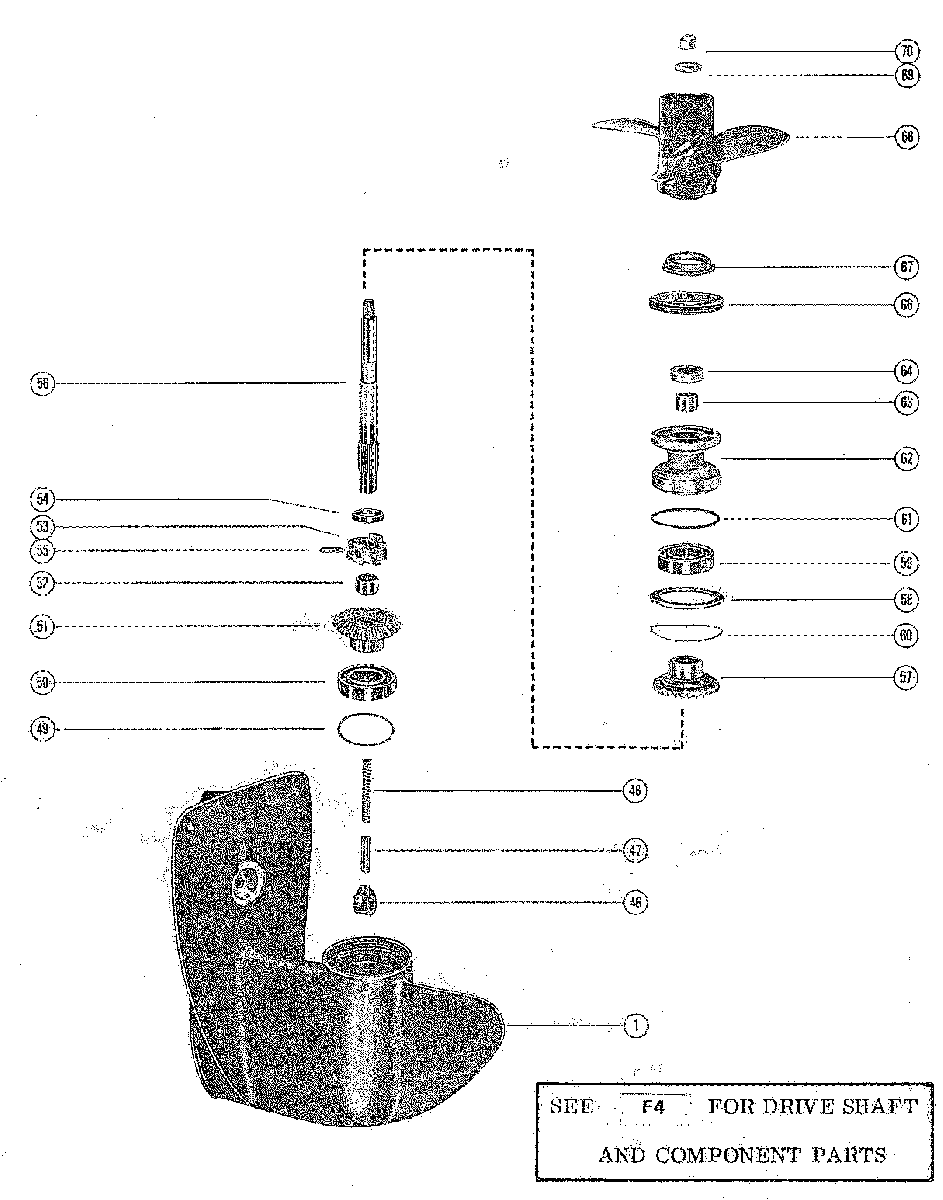

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 110 4839254 THRU 5206549
-
№АртикулНазвание
-
-1630-7360A12 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
NOT MACHINED FOR ANODE KITGEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
NOT MACHINED FOR ANODE KIT -
-1630-7360A13 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
NOT MACHINED FOR ANODE KITGEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
NOT MACHINED FOR ANODE KIT -
-1630-7360A12 GEAR HOSUING ASS'Y, COMP. (SHORT SHAFT)
MACHINED FOR ANODE KITGEAR HOSUING ASS'Y, COMP. (SHORT SHAFT)
MACHINED FOR ANODE KIT -
-1630-7360A13 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
MACHINED FOR ANODE KITGEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
MACHINED FOR ANODE KIT -
11630-7360A11 GEAR HOUSING ASS'Y - NOT MACHINED FOR ANODE KITGEAR HOUSING ASS'Y - NOT MACHINED FOR ANODE KIT
-
11630-7360A11 GEAR HOUSING ASS'Y - MACHINED FOR ANODE KITGEAR HOUSING ASS'Y - MACHINED FOR ANODE KIT
-
4644434 CAM, SHIFTCAM, SHIFT
-
4731334 FOLLOWER, SHIFT CAMFOLLOWER, SHIFT CAM
-
4824-76298 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
4915-30522A1 SHIM ASSEMBLY, BALL BEARING TO HOUSING (.002-3-5-10)SHIM ASSEMBLY, BALL BEARING TO HOUSING (.002-3-5-10)
-
5030-21889 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5143-48577A3 FORWARD GEARFORWARD GEAR
-
5231-22458 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5352-63314 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5453-32449 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
5517-30535 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5644-75667A2 SHAFT ASSEMBLY, PROPELLERSHAFT ASSEMBLY, PROPELLER
-
5743-63316 REVERSE GEARREVERSE GEAR
-
5871479 SLEEVE, THRUST - REVERSE GEARSLEEVE, THRUST - REVERSE GEAR
-
5930-21889 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6015-30532A1 SHIM ASSEMBLY, THRUST WASHER TO HOUSING
(.002-3-5-10)SHIM ASSEMBLY, THRUST WASHER TO HOUSING
(.002-3-5-10) -
6125-30529 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6272673T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6331-22458 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6426-66022 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6686236 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6786665A1 COLLAR, PROPELLER GUIDECOLLAR, PROPELLER GUIDE
-
6848-87572A10 PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FROM FACTORY)PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FROM FACTORY)
-
6848-47922A10 PROPELLER ASS'Y, 9" DIA., 9" PITCH, 2 BLADES (#48-47922A10)
ALUMINUMPROPELLER ASS'Y, 9" DIA., 9" PITCH, 2 BLADES (#48-47922A10)
ALUMINUM -
6848-47922A10 PROPELLER ASS'Y, 9"DIA., 10" PITCH, 2 BLADES (#48-47922A10)
ALUMINUMPROPELLER ASS'Y, 9"DIA., 10" PITCH, 2 BLADES (#48-47922A10)
ALUMINUM -
6848-47670A10 PROPELLER ASS'Y, 8 3/4" DIA., 7" PITCH, 3 BLADES (#48-47670A10)
ALUMINUMPROPELLER ASS'Y, 8 3/4" DIA., 7" PITCH, 3 BLADES (#48-47670A10)
ALUMINUM -
6848-65012A1 PROPELLER ASS'Y, 8 3/4" DIA., 7" PITCH, 3 BLADES (#48-65012A1)
NYLONPROPELLER ASS'Y, 8 3/4" DIA., 7" PITCH, 3 BLADES (#48-65012A1)
NYLON -
--66606 THRUST HUB
USED WITH NYLON PROP ONLYTHRUST HUB
USED WITH NYLON PROP ONLY -
6911-64075A1 SPACER, PROPELLER SHAFT
PART OF PROPELLER SHAFT ASSEMBLYSPACER, PROPELLER SHAFT
PART OF PROPELLER SHAFT ASSEMBLY -
--12-79552 WASHER, PROPELLER SHAFTWASHER, PROPELLER SHAFT
-
7011-64075A1 NUT, PROPELLERNUT, PROPELLER
