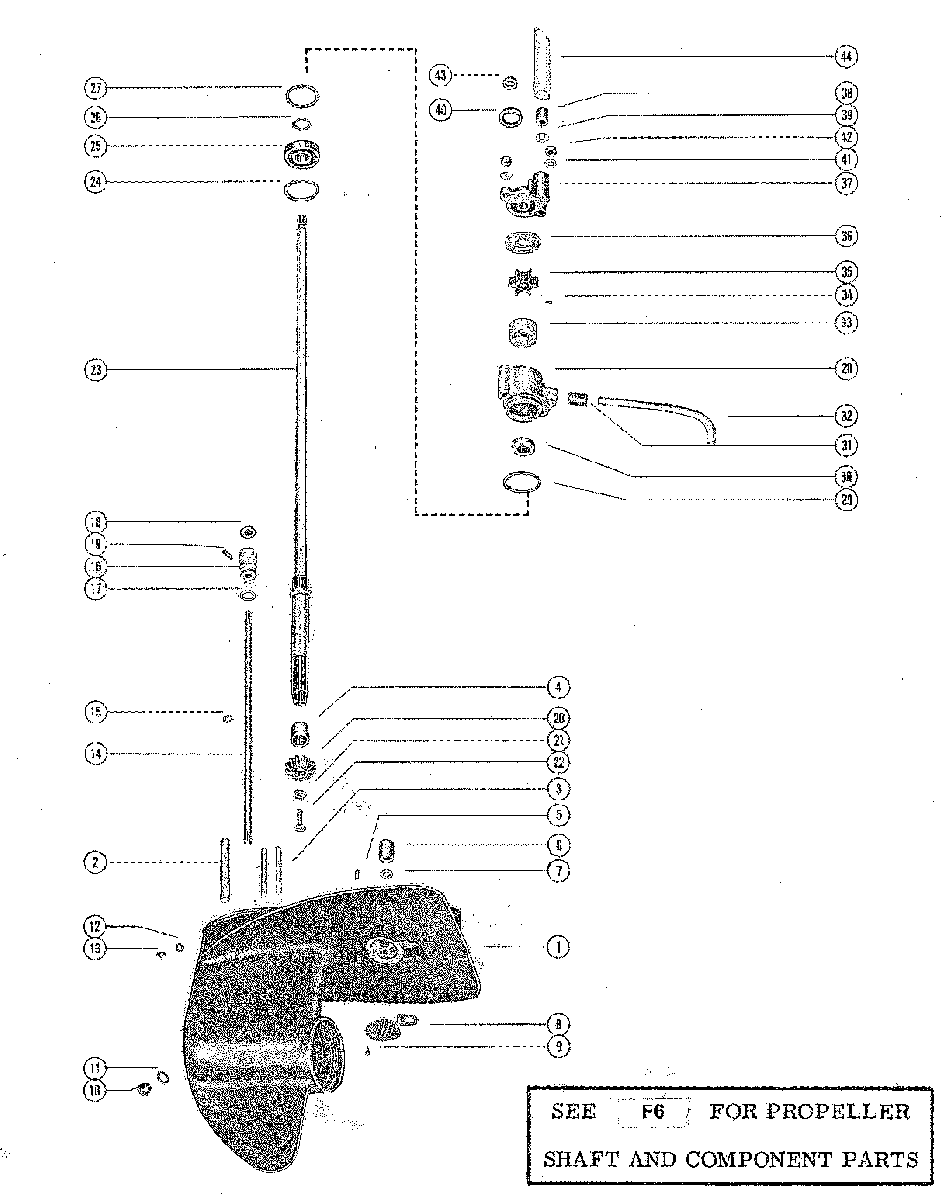

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 110 4839254 THRU 5206549
-
№АртикулНазвание
-
-1630-7360A12 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
NOT MACHINED FOR ANODE KIT SEE NOTE BELOWGEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
NOT MACHINED FOR ANODE KIT SEE NOTE BELOW -
-1630-7360A13 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
NOT MACHINED FOR ANODE KIT SEE NOTE BELOWGEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
NOT MACHINED FOR ANODE KIT SEE NOTE BELOW -
90-8M0143356 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
MACHINED FOR ANIDE KIT SEE NOTE BELOWGEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
MACHINED FOR ANIDE KIT SEE NOTE BELOW -
-1630-7360A13 GEAR HOUSING ASS"Y, COMOP. (LONG SHAFT)
MACHINED FOR ANIDE KIT SEE NOTE BELOWGEAR HOUSING ASS"Y, COMOP. (LONG SHAFT)
MACHINED FOR ANIDE KIT SEE NOTE BELOW -
11630-7360A11 GEAR HOUSING ASS'Y
NOT MACHINED FOR ANODE KITGEAR HOUSING ASS'Y
NOT MACHINED FOR ANODE KIT -
11630-7360A11 GEAR HOUSING ASS'Y
MACHINED FOR ANODE KITGEAR HOUSING ASS'Y
MACHINED FOR ANODE KIT -
216-58138 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
(3 7/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
(3 7/16") -
316-58136 STUD, WATER PUMP HOUSING TO GEAR HOUSING
(2 3/4")STUD, WATER PUMP HOUSING TO GEAR HOUSING
(2 3/4") -
431-22756 BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
517-20032 PIN, DOWEL - LOCATINGPIN, DOWEL - LOCATING
-
626-33613 SEAL, RUBBER - WATER INTAKE TUBESEAL, RUBBER - WATER INTAKE TUBE
-
723-86215 WASHER, NYLON - INTAKE TUBE SEALWASHER, NYLON - INTAKE TUBE SEAL
-
835-33425 SCREEN, WATER INTAKESCREEN, WATER INTAKE
-
910-28642 SCREW, WATER INTAKE SCREEN TO GEAR HOUSINGSCREW, WATER INTAKE SCREEN TO GEAR HOUSING
-
1010-79953Q04 SCREW, GREASE FILLER HOLESCREW, GREASE FILLER HOLE
-
1112-191833 WASHER, GREASE FILLER HOLE SCREWWASHER, GREASE FILLER HOLE SCREW
-
1219643 WASHER, GREASE VENT HOLE SCREWWASHER, GREASE VENT HOLE SCREW
-
1310-28653 SCREW, GREASE VENT HOLESCREW, GREASE VENT HOLE
-
1471659A1 SHAFT ASSEMBLY, SHIF (SHORT SHAFT)SHAFT ASSEMBLY, SHIF (SHORT SHAFT)
-
1471658A1 SHAFT ASSEMBLY, SHIFT (LONG SHAFT)SHAFT ASSEMBLY, SHIFT (LONG SHAFT)
-
1553-22899 RING, RETAINING - SHIFT SHAFTRING, RETAINING - SHIFT SHAFT
-
1623-30676A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
1725-26802 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
1826-30696 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
1910-39149 SCREW, SHIFT SHAFT BUSHINGSCREW, SHIFT SHAFT BUSHING
-
2043-98696 GEAR, PINIONGEAR, PINION
-
2114-30377 TAB WASHER, PINION GEAR TO DRIVE SHAFT SCREWTAB WASHER, PINION GEAR TO DRIVE SHAFT SCREW
-
2210-30376 SCREW, PINION GEAR TO DRIVE SHAFTSCREW, PINION GEAR TO DRIVE SHAFT
-
2345-75034 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
2345-75033 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
2415-30527A1 SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
(.002-3-5-10)SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
(.002-3-5-10) -
2530-70944 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
2653-30523 RING, RETIANING - BALL BEARING TO DRIVE SHAFTRING, RETIANING - BALL BEARING TO DRIVE SHAFT
-
2715-30527A1 SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
(.002-3-5-10)SHIM ASSEMLBY, BALL BEARING TO GEAR HOUSING
(.002-3-5-10) -
2846-70941T01 WATER PUMP HOUSING ASSEMBLYWATER PUMP HOUSING ASSEMBLY
-
2925-29439 "O" RING, WATER PUMP HOUSING"O" RING, WATER PUMP HOUSING
-
3026-30900T OIL SEAL, WATER PUMP HOUSINGOIL SEAL, WATER PUMP HOUSING
-
3126-33613 SEAL, WATER INTAKE TUBESEAL, WATER INTAKE TUBE
-
3232-34293 TUBE, WATER INTAKETUBE, WATER INTAKE
-
3370977T INSERT, WATER PUMP HOUSINGINSERT, WATER PUMP HOUSING
-
3428-8M0032835 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3547-89981 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3646895 PLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVERPLATE, FACE - WATER PUMP HOUSING TO WATER PUMP COVER
-
3793224A1 WATER PUMP COVER ASSEMBLYWATER PUMP COVER ASSEMBLY
-
3826-36558 SEAL, WATER PUMP COVERSEAL, WATER PUMP COVER
-
3923-13127 WASHER, NYLON - WATER PUMP COVERWASHER, NYLON - WATER PUMP COVER
-
4026-30913 OIL SEAL, WATER PUMP COVEROIL SEAL, WATER PUMP COVER
-
4112-20533 WASHER, WATER PUMP HOUSING AND COVER STUDSWASHER, WATER PUMP HOUSING AND COVER STUDS
-
4211-35888 NUT, WATER PUMP HOSUING AND COVER STUDSNUT, WATER PUMP HOSUING AND COVER STUDS
-
4325-30526 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
4423-31792T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
