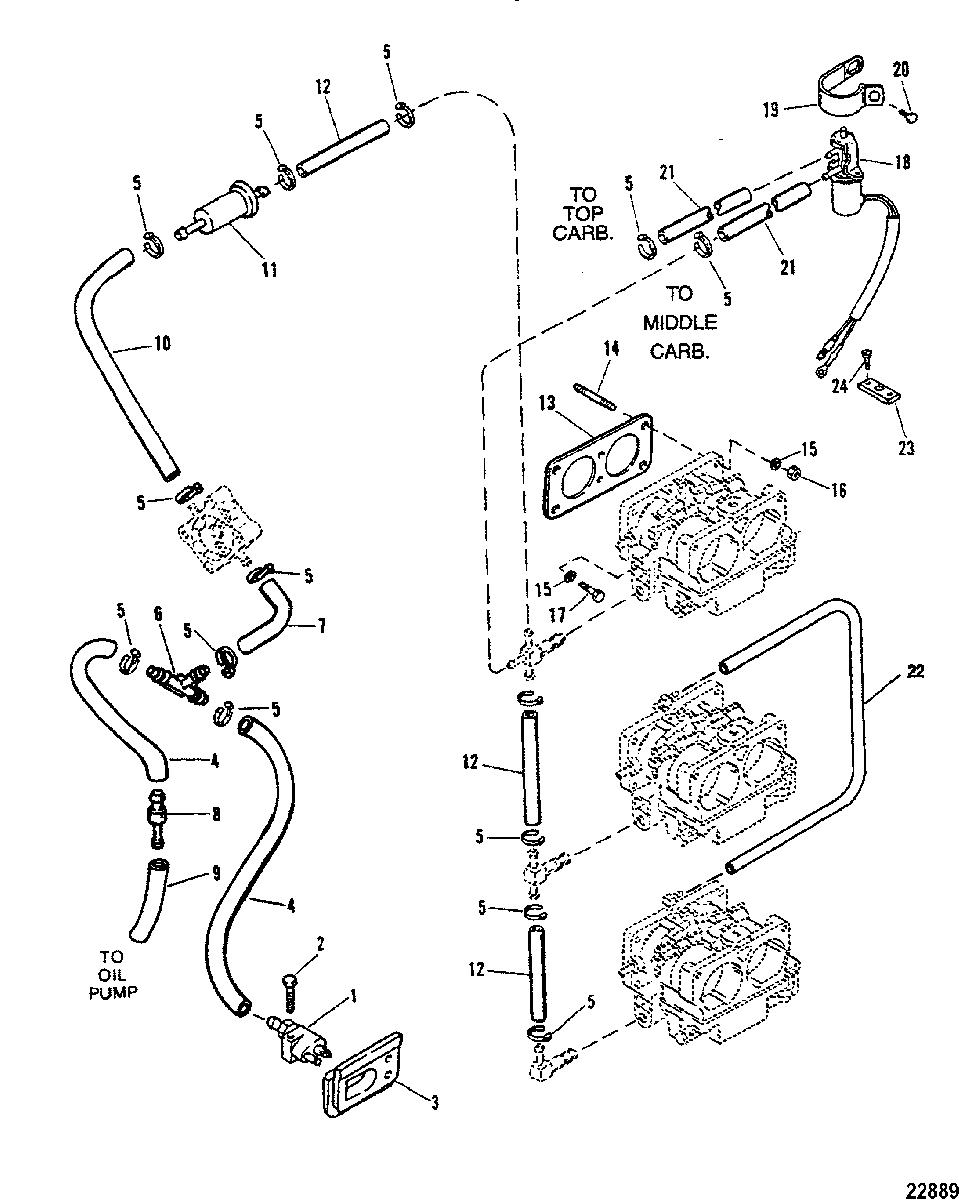

FUEL LINES(Use With WMH -30/31/32/33/34 Carburetors) для Mercury - 105 JET 0D082000 THRU 0G303045
-
№АртикулНазвание
-
122-816856Q3 CONNECTOR ASSEMBLY, Fuel - PlasticCONNECTOR ASSEMBLY, Fuel - Plastic
-
210-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
-
3812782 SEALSEAL
-
432-8M0108349 HOSEHOSE
-
554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
622-818993 CONNECTOR, TeeCONNECTOR, Tee
-
732-18175 HOSEHOSE
-
822-8189941 CHECK VALVECHECK VALVE
-
932-82381335 TUBING, (10.00 Inches Bulk)TUBING, (10.00 Inches Bulk)
-
1032-830762 HOSEHOSE
-
1135-816296Q2 FILTER, FuelFILTER, Fuel
-
1232-8M0108355 HOSE, (57.00 Inches Bulk)HOSE, (57.00 Inches Bulk)
-
1327-677511 GASKETGASKET
-
1416-270372 STUD, (.250-28 x 1.125)STUD, (.250-28 x 1.125)
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1611-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
1710-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
1842859A2 VALVE ASSEMBLY, EnrichnerVALVE ASSEMBLY, Enrichner
-
1954-633001 CLAMPCLAMP
-
2010-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2132-9912688 TUBING, (36.00 Inches Bulk)TUBING, (36.00 Inches Bulk)
-
2232-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
2386-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2410-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
2410-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
