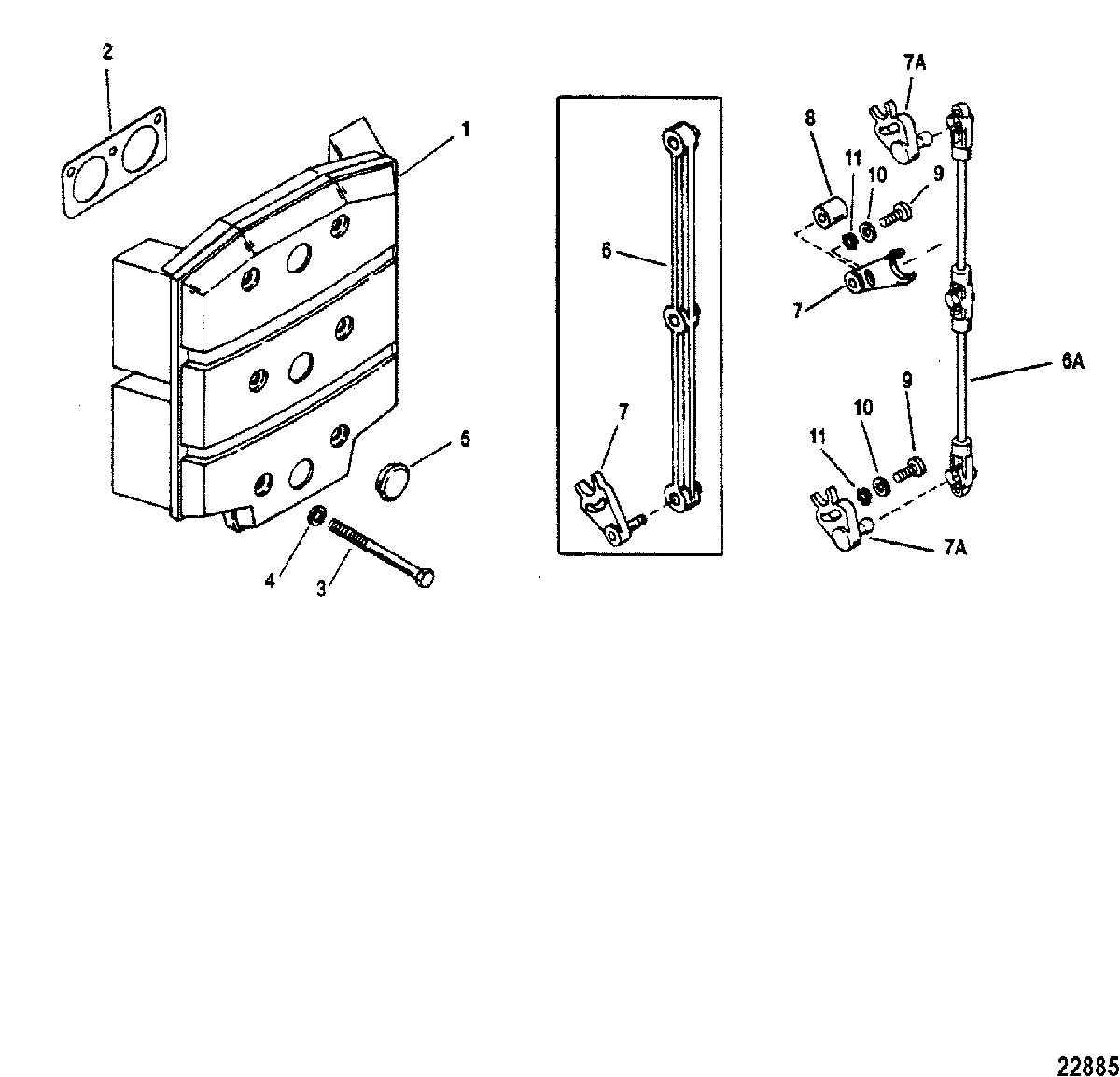

CHOKE PLATE AND THROTTLE LEVERS для Mercury - 105 JET 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    817495A1 PLATE ASSEMBLY, Sound Attenuator
    PLATE ASSEMBLY, Sound Attenuator
  • 2
    27-892211 GASKET
    GASKET
  • 3
    10-884891 SCREW, (.250-28 x 2.500)
    SCREW, (.250-28 x 2.500)
  • 4
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 5
    19-815784 CAP
    CAP
  • 6
    18180 LINK, Throttle
    (BOTTOM CARB IS WMH SERIES)
    LINK, Throttle
    (BOTTOM CARB IS WMH SERIES)
  • 7
    18181 LINK (W/STUB SHAFT)
    (BOTTOM CARB IS WMH SERIES)
    LINK (W/STUB SHAFT)
    (BOTTOM CARB IS WMH SERIES)
  • 6A
    825204A1 LINK KIT, Throttle
    (BOTTOM CARB IS WMH-A SERIES)
    LINK KIT, Throttle
    (BOTTOM CARB IS WMH-A SERIES)
  • 7
    18181 LINK (W/STUB SHAFT)
    (BOTTOM CARB IS WMH-A SERIES)
    LINK (W/STUB SHAFT)
    (BOTTOM CARB IS WMH-A SERIES)
  • 7A
    181811 LINK (W/BALL SHAFT)
    (BOTTOM CARB IS WMH-A SERIES)
    LINK (W/BALL SHAFT)
    (BOTTOM CARB IS WMH-A SERIES)
  • 8
    18178 ROLLER
    ROLLER
  • 9
    10-87926 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 10
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 11
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
