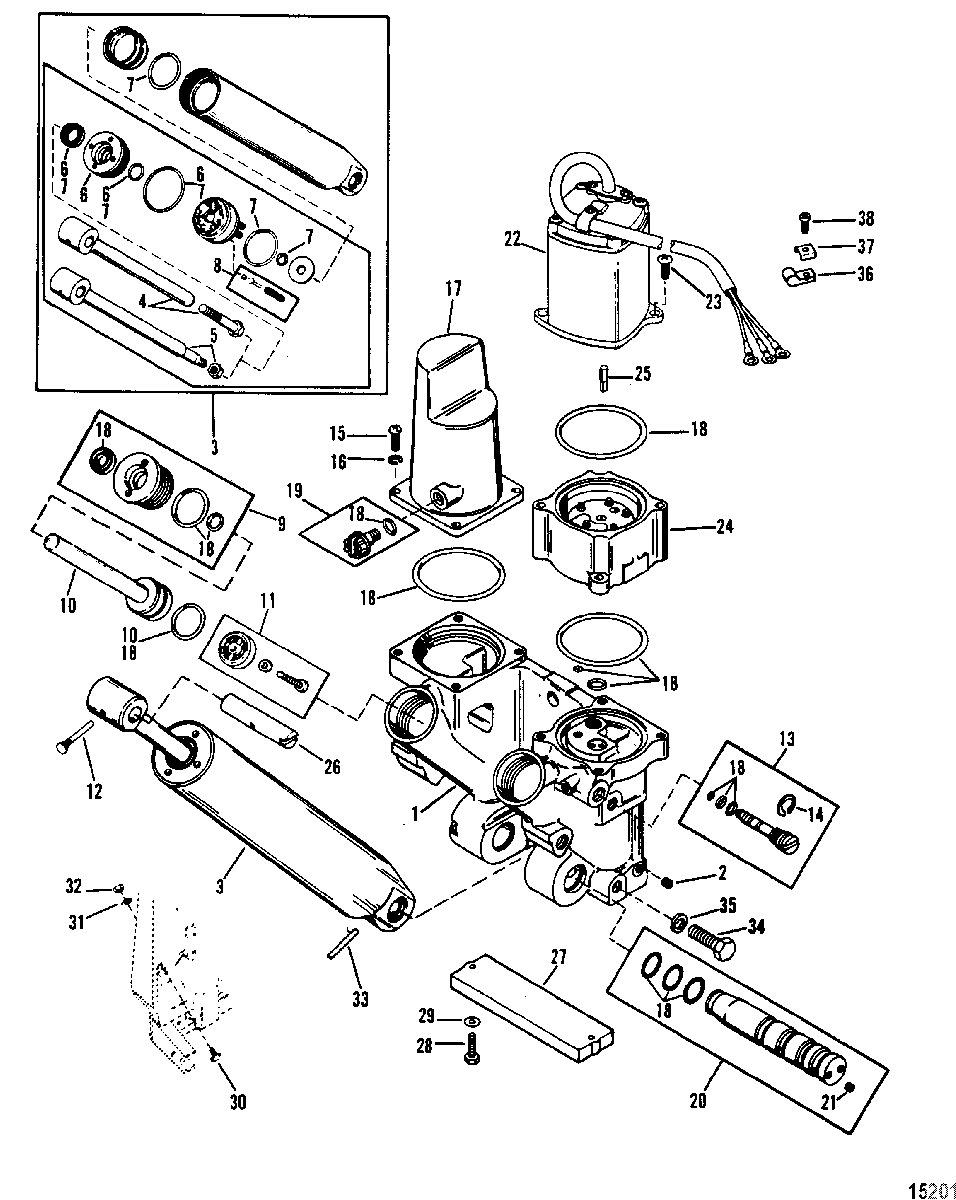

Power Trim Components(Three Ram Power Trim Design II) для Mercury - 100 (4 CYL.) 9523034 THRU 9793576
-
№АртикулНазвание
-
-826729A10 POWER TRIM ASSEMBLY, CompletePOWER TRIM ASSEMBLY, Complete
-
1811604F MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
222-56800 PIPE PLUGPIPE PLUG
-
38M0078330 TILT CYLINDER ASSEMBLYTILT CYLINDER ASSEMBLY
-
4811608 ROD KIT, Trim And Tilt Piston, Bolt TypeROD KIT, Trim And Tilt Piston, Bolt Type
-
58M0078330 ROD, Trim Piston, Nut TypeROD, Trim Piston, Nut Type
-
68M0090322 GUIDE KITGUIDE KIT
-
7811607A1 REPAIR KITREPAIR KIT
-
88M0078330 CHECK VALVE KITCHECK VALVE KIT
-
91100-8M0021648 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
10878413A1 PISTON/ROD ASSEMBLY, Power Trim, PortPISTON/ROD ASSEMBLY, Power Trim, Port
-
10878414T01 PISTON/ROD ASSEMBLY, Power Trim, StarboardPISTON/ROD ASSEMBLY, Power Trim, Starboard
-
1135-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
1217-821539 PIN, TrilobePIN, Trilobe
-
13893929A01 VALVE ASSEMBYVALVE ASSEMBY
-
1453-815949001 E RINGE RING
-
1510-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1612-4002315 WASHERWASHER
-
17811611 COVERCOVER
-
18811612A3 O-RING KITO-RING KIT
-
1919-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
20878241A03 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
2122-56800 PIPE PLUGPIPE PLUG
-
22878265A6 TRIM MOTOR
(Refer To Power Trim Motor Section For Breakdown)TRIM MOTOR
(Refer To Power Trim Motor Section For Breakdown) -
2310-811615 SCREW, LongSCREW, Long
-
2310-811616 SCREW, ShortSCREW, Short
-
24811617T1 PUMPPUMP
-
25811619 DRIVESHAFTDRIVESHAFT
-
2699625002 SHAFTSHAFT
-
2797-818298Q1 ANODE KITANODE KIT
-
2810-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
308M0045383 STRIKER PLATESTRIKER PLATE
-
3113-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3211-46335 NUT, (.375-24)NUT, (.375-24)
-
3317-878267 PIN, GroovePIN, Groove
-
3410-4000377 SCREW, (M10 x 30), ManifoldSCREW, (M10 x 30), Manifold
-
3513-400258 LOCKWASHER, (M10) Stainless SteelLOCKWASHER, (M10) Stainless Steel
-
3654-22875 CLIP, Pump WireCLIP, Pump Wire
-
378M0084613 C WASHERC WASHER
-
3810-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
