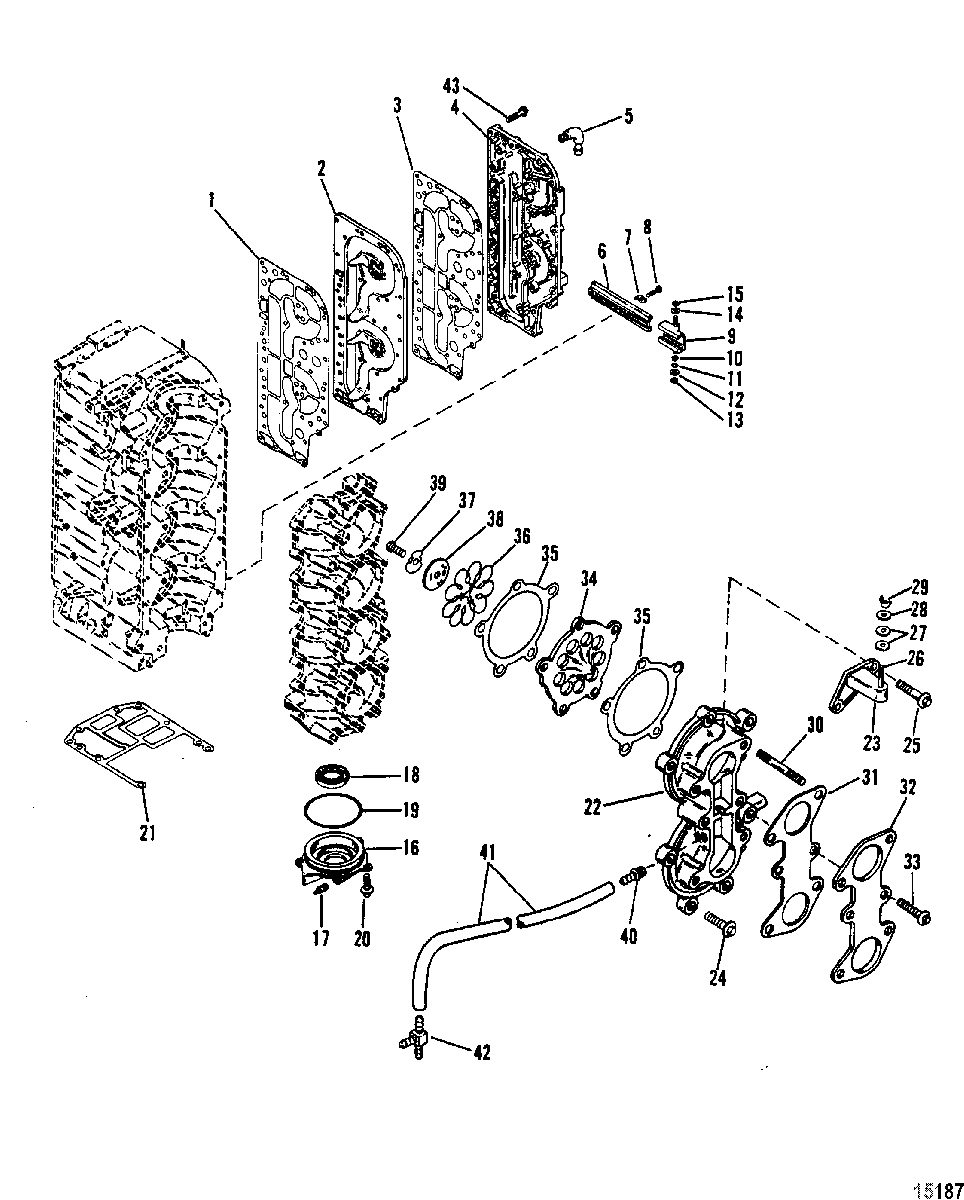

Induction Manifold And Reed Block для Mercury - 100 (4 CYL.) 9523034 THRU 9793576

  • №
    Артикул
    Название
  • 1
    27-139581 GASKET, Use With 44324C1 And 44325C1
    GASKET, Use With 44324C1 And 44325C1
  • 2
    44324T PLATE, Baffle, Casting Number 44324C1
    (Use With 44324C1 And 44325C1)
    PLATE, Baffle, Casting Number 44324C1
    (Use With 44324C1 And 44325C1)
  • 3
    27-139581 GASKET, Use With 44324C1 And 44325C1
    GASKET, Use With 44324C1 And 44325C1
  • 4
    44325A1 COVER, Casting Number 44325C1
    (Use With 44324C1 And 44325C1)
    COVER, Casting Number 44325C1
    (Use With 44324C1 And 44325C1)
  • 1
    27-812775A01 GASKET, Use With 44324C2 And 44325C2
    GASKET, Use With 44324C2 And 44325C2
  • 2
    44325A1 PLATE, Baffle, Casting Number 44324C2
    Use With 44324C2 And 44325C2
    PLATE, Baffle, Casting Number 44324C2
    Use With 44324C2 And 44325C2
  • 3
    27-812775A01 GASKET, Use With 44324C2 And 44325C2
    GASKET, Use With 44324C2 And 44325C2
  • 4
    44325A1 COVER, Casting Number 44325C2
    (Use With 44324C2 And 44325C2)
    COVER, Casting Number 44325C2
    (Use With 44324C2 And 44325C2)
  • 5
    22-996642 ELBOW
    ELBOW
  • 6
    42881A1 SHIFT RAIL ASSEMBLY
    SHIFT RAIL ASSEMBLY
  • 7
    14-42981 TAB WASHER
    TAB WASHER
  • 8
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 9
    988851 SLIDE
    SLIDE
  • 10
    23-42994 BUSHING
    BUSHING
  • 11
    13-29720 WAVE WASHER
    WAVE WASHER
  • 12
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 13
    11-401386 NUT, (M6)
    NUT, (M6)
  • 14
    12-35459 WASHER
    WASHER
  • 15
    11-401386 NUT, (M6)
    NUT, (M6)
  • 16
    1169-858552T2 END CAP ASSEMBLY, Lower
    END CAP ASSEMBLY, Lower
  • 17
    21-426585 CHECK VALVE
    CHECK VALVE
  • 18
    26-41953 SEAL
    SEAL
  • 19
    25-89224 O-RING
    O-RING
  • 20
    10-4010825 SCREW, (M10 x 25) Hex Flange - Stainless Steel
    SCREW, (M10 x 25) Hex Flange - Stainless Steel
  • 21
    27-430075 GASKET
    GASKET
  • 22
    13545A1 MANIFOLD ASSEMBLY, Induction
    MANIFOLD ASSEMBLY, Induction
  • 23
    42923 BRACKET
    BRACKET
  • 24
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 25
    10-81742740 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 26
    16-8M0045410 STUD
    STUD
  • 27
    12-49221 WASHER
    WASHER
  • 28
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 29
    11-816874 WING NUT
    WING NUT
  • 30
    16-824470 STUD
    STUD
  • 31
    27-134612 GASKET
    GASKET
  • 32
    13460 COVER
    COVER
  • 33
    10-81742755 SCREW, (M8 x 55)
    SCREW, (M8 x 55)
  • 34
    42963A11 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 35
    27-139376 GASKET
    GASKET
  • 36
    34-43018A1 REED SET
    REED SET
  • 37
    14-429821 TAB WASHER
    TAB WASHER
  • 38
    42924 RETAINER
    RETAINER
  • 39
    10-4000171 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 40
    22-130351 FITTING, Straight
    FITTING, Straight
  • 41
    32-1430165 TUBING, (38.00 Inches Bulk)
    TUBING, (38.00 Inches Bulk)
  • 42
    22-13033 TEE FITTING
    TEE FITTING
  • 43
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
