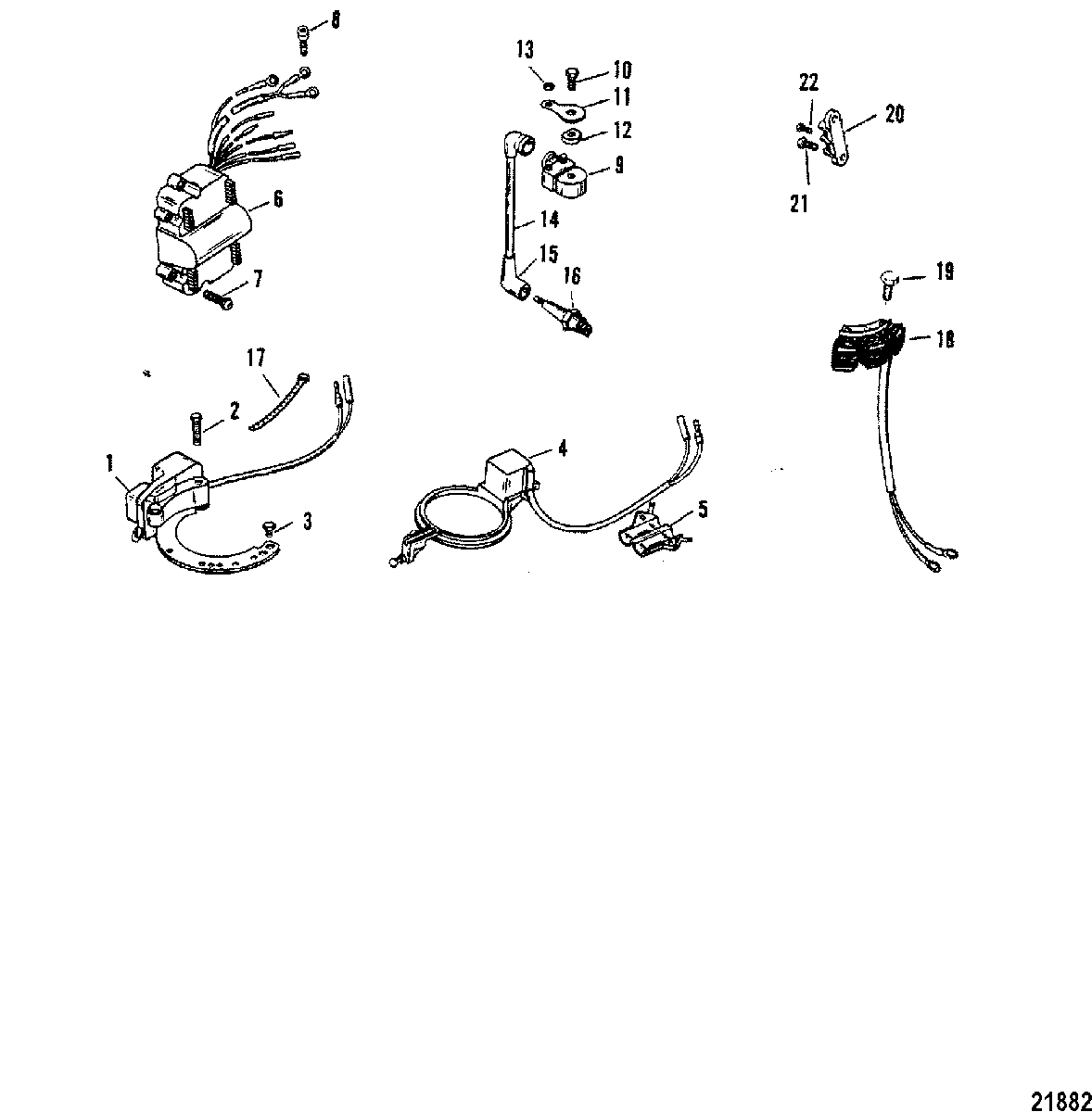

Ignition Components для Mercury - 10 SEA PRO 9596000 THRU 9792199
-
№АртикулНазвание
-
186617A20 STATOR ASSEMBLYSTATOR ASSEMBLY
-
210-4000120 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
310-400015 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
310-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
498450A10 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
511100 CLIPCLIP
-
6339-7452A19 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
710-40019108 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
810-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
9339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1010-40112 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
1188173 TAB WASHERTAB WASHER
-
1223-88171 BUSHING, COILBUSHING, COIL
-
1311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1484-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)CABLE SET, High Tension (5 and 8.25 Inch)
-
1585-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
1633-14814568 SPARK PLUG (NKG #BPZ8HS-15)SPARK PLUG (NKG #BPZ8HS-15)
-
1633-8M0114746 SPARK PLUG (NGK#BP8HS-15)SPARK PLUG (NGK#BP8HS-15)
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1886704A10 STATOR ASSEMBLYSTATOR ASSEMBLY
-
1910-4000123 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
2086-638131 TERMINAL BLOCKTERMINAL BLOCK
-
2110-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
2210-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
