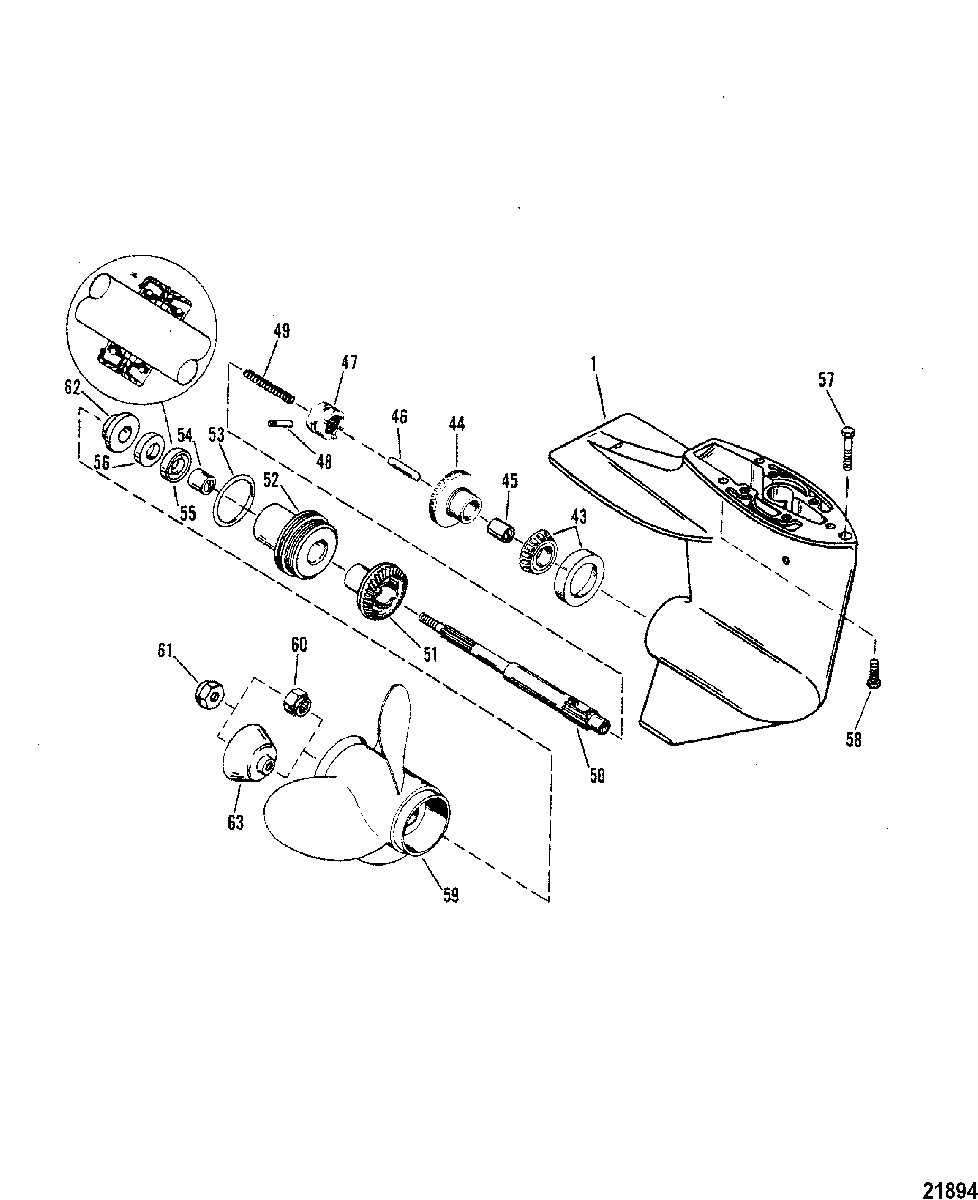

Gear Hsg(Propshaft-Design II-Refer to Driveshaft Drawing) для Mercury - 10 SEA PRO 9596000 THRU 9792199
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) BLACKGEAR HOUSING ASSEMBLY, COMPLETE (SHORT) BLACK
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACKGEAR HOUSING ASSEMBLY, COMPLETE (LONG) BLACK
-
-1666-8833T14 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) GRAYGEAR HOUSING ASSEMBLY, COMPLETE (SHORT) GRAY
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAYGEAR HOUSING ASSEMBLY, COMPLETE (LONG) GRAY
-
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
(Black)GEAR HOUSING ASSEMBLY, Basic-Black
(Black) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Gray
(Gray)GEAR HOUSING ASSEMBLY, Basic-Gray
(Gray) -
4331-821321A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
4443-821924A1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
4523-41367 BUSHINGBUSHING
-
46813139 FOLLOWER, CamFOLLOWER, Cam
-
4752-821930A1 CLUTCHCLUTCH
-
4817-823951 PIN, CrossPIN, Cross
-
4924-42204 SPRINGSPRING
-
5044-821929 PROPELLER SHAFTPROPELLER SHAFT
-
5143-821926T1 GEAR, Reverse - 13/26GEAR, Reverse - 13/26
-
5242144T3 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5325-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
5423-821927 BUSHINGBUSHING
-
5526-99325 SEALSEAL
-
5626-821928 SEAL, OilSEAL, Oil
-
5710-82407110 SCREWSCREW
-
5810-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
5948-828156A12 PROPELLER (9 x 9)PROPELLER (9 x 9)
-
5948-828150A12 PROPELLER (9.75 x 6.50)PROPELLER (9.75 x 6.50)
-
6023-420911 SPACERSPACER
-
6111-40140 NUT, (M10)NUT, (M10)
-
62821932 THRUST HUBTHRUST HUB
-
63822559Q01 CUP, Reverse Exhaust BlockCUP, Reverse Exhaust Block
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-26-41365A3 SEAL KITSEAL KIT
