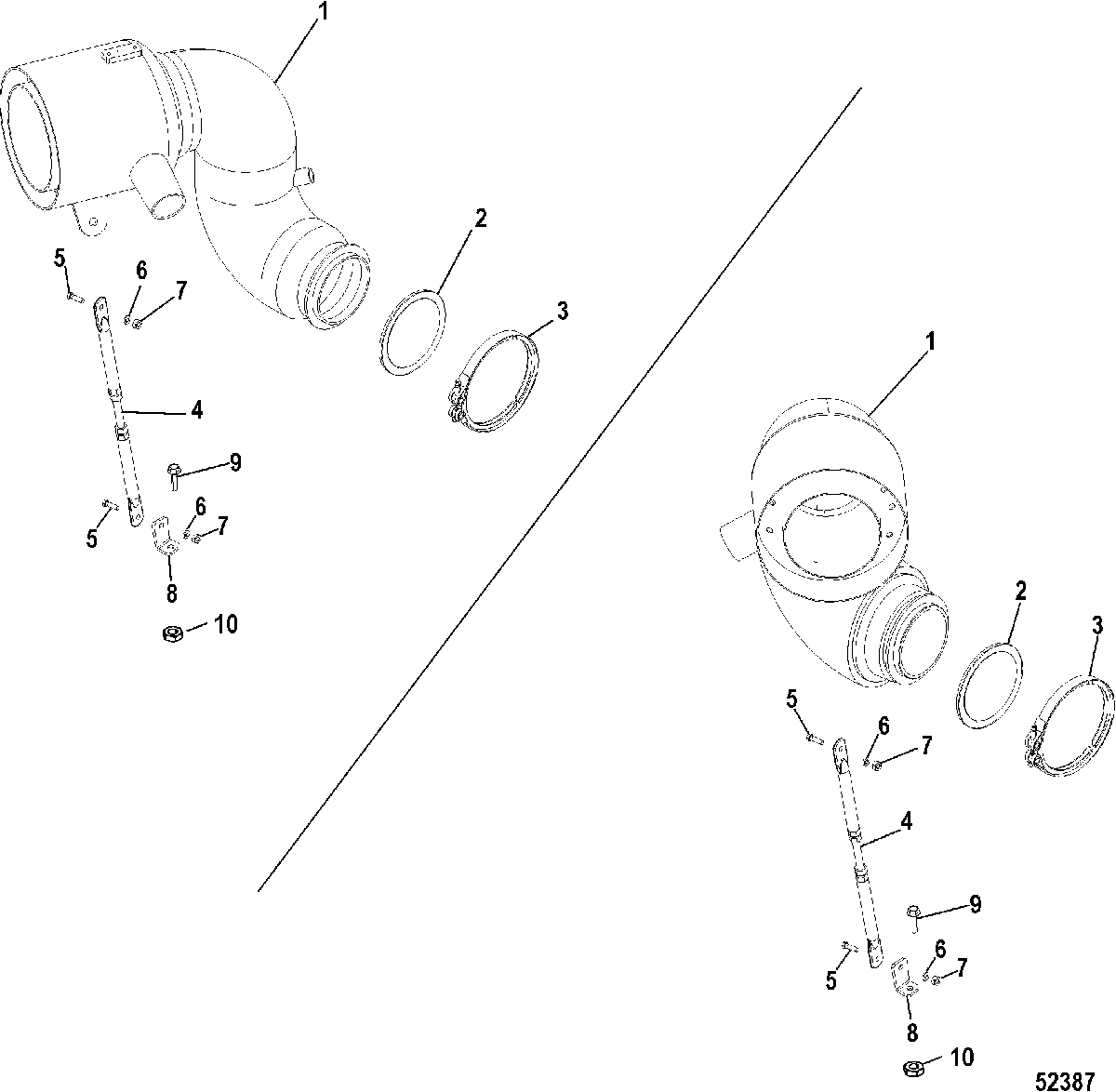

Riser, Exhaust, QSM для Mercruiser - ZEUS 3000 0M968994 THRU 0M968994
-
№АртикулНазвание
-
-8M0077214 RISER KIT, Exhaust Elbow
STARBOARDRISER KIT, Exhaust Elbow
STARBOARD -
-8M0077213 RISER KIT, Exhaust Elbow
PORTRISER KIT, Exhaust Elbow
PORT -
1NSS NOT SOLD SEPARATE, RISERNOT SOLD SEPARATE, RISER
-
227-8M0068882 GASKETGASKET
-
354-8M0068910 CLAMP-V BANDCLAMP-V BAND
-
48M0068856 BRACEBRACE
-
510-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
612-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
711-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
88M0068904 BRACEBRACE
-
910-8M0068824 SCREW, (M12 x 1.75)SCREW, (M12 x 1.75)
-
1011-8M0068817 NUT,REGULARNUT,REGULAR
