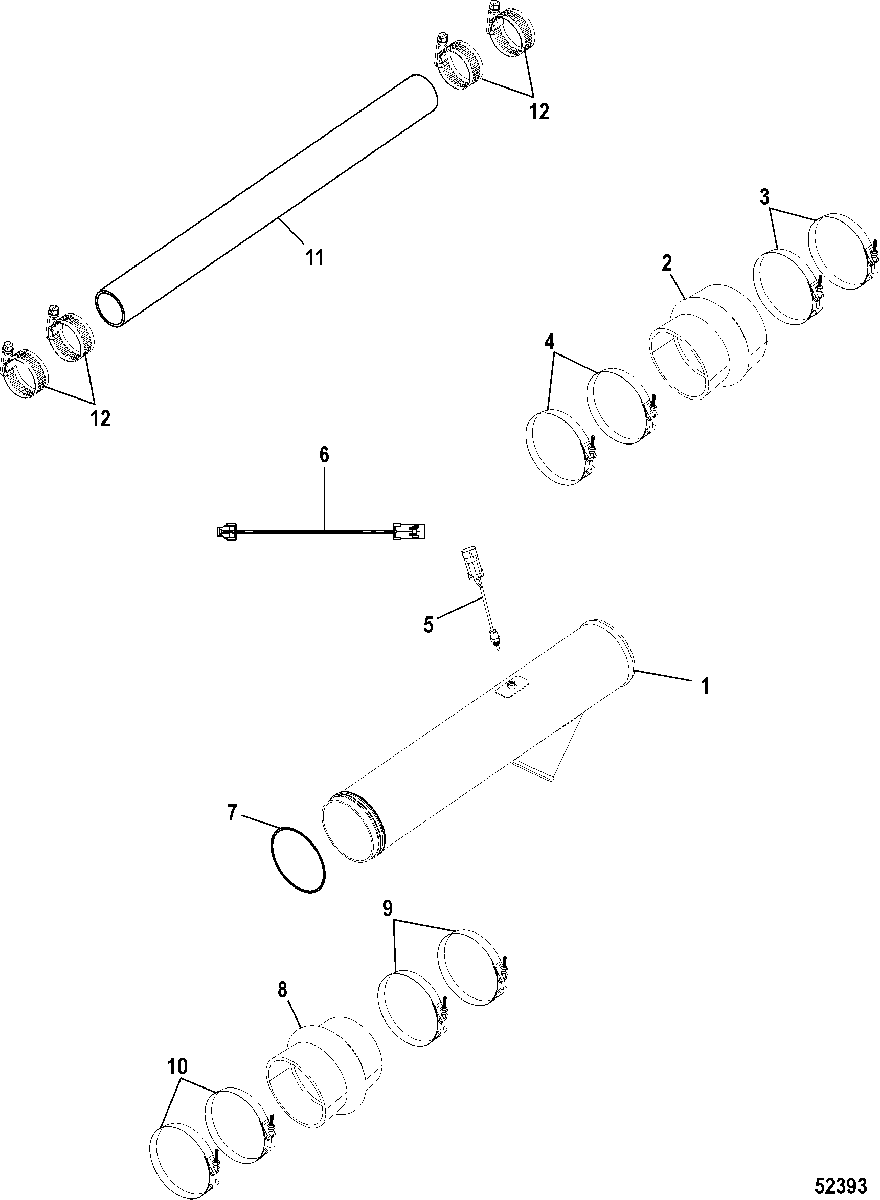

Exhaust Tube, QSC, Design-I, 5 Inch для Mercruiser - ZEUS 3000 0M968994 THRU 0M968994

  • №
    Артикул
    Название
  • -
    8M0077197 EXHAUST TUBE KIT
    PORT
    EXHAUST TUBE KIT
    PORT
  • -
    8M0077197 EXHAUST TUBE KIT
    STARBOARD
    EXHAUST TUBE KIT
    STARBOARD
  • 1
    NSS NOT SOLD SEPARATE, EXHAUST TUBE
    NOT SOLD SEPARATE, EXHAUST TUBE
  • 2
    32-8M0068867 HOSE, 127 x 152.4mm
    HOSE, 127 x 152.4mm
  • 3
    54-8M0068909 CLAMP, 160-168mm
    CLAMP, 160-168mm
  • 4
    54-8M0068908 CLAMP, 134-142mm
    CLAMP, 134-142mm
  • 5
    8M0039116 SENSOR, Temperature
    SENSOR, Temperature
  • 6
    84-8M0068874 HARNESS, Exhaust Temperature
    HARNESS, Exhaust Temperature
  • 7
    25-8M0068905 SEAL, O RING
    SEAL, O RING
  • 8
    32-8M0068866 HOSE, Exhaust, 127 x 139.7mm
    HOSE, Exhaust, 127 x 139.7mm
  • 9
    54-8M0068908 CLAMP, 134-142mm
    CLAMP, 134-142mm
  • 10
    54-8M0068907 CLAMP, 148-155mm
    CLAMP, 148-155mm
  • 11
    32-8M0068897 HOSE, 38.1 x 1067mm
    HOSE, 38.1 x 1067mm
  • 12
    54-8M0068823 CLAMP, HOSE, 27-51mm
    CLAMP, HOSE, 27-51mm
