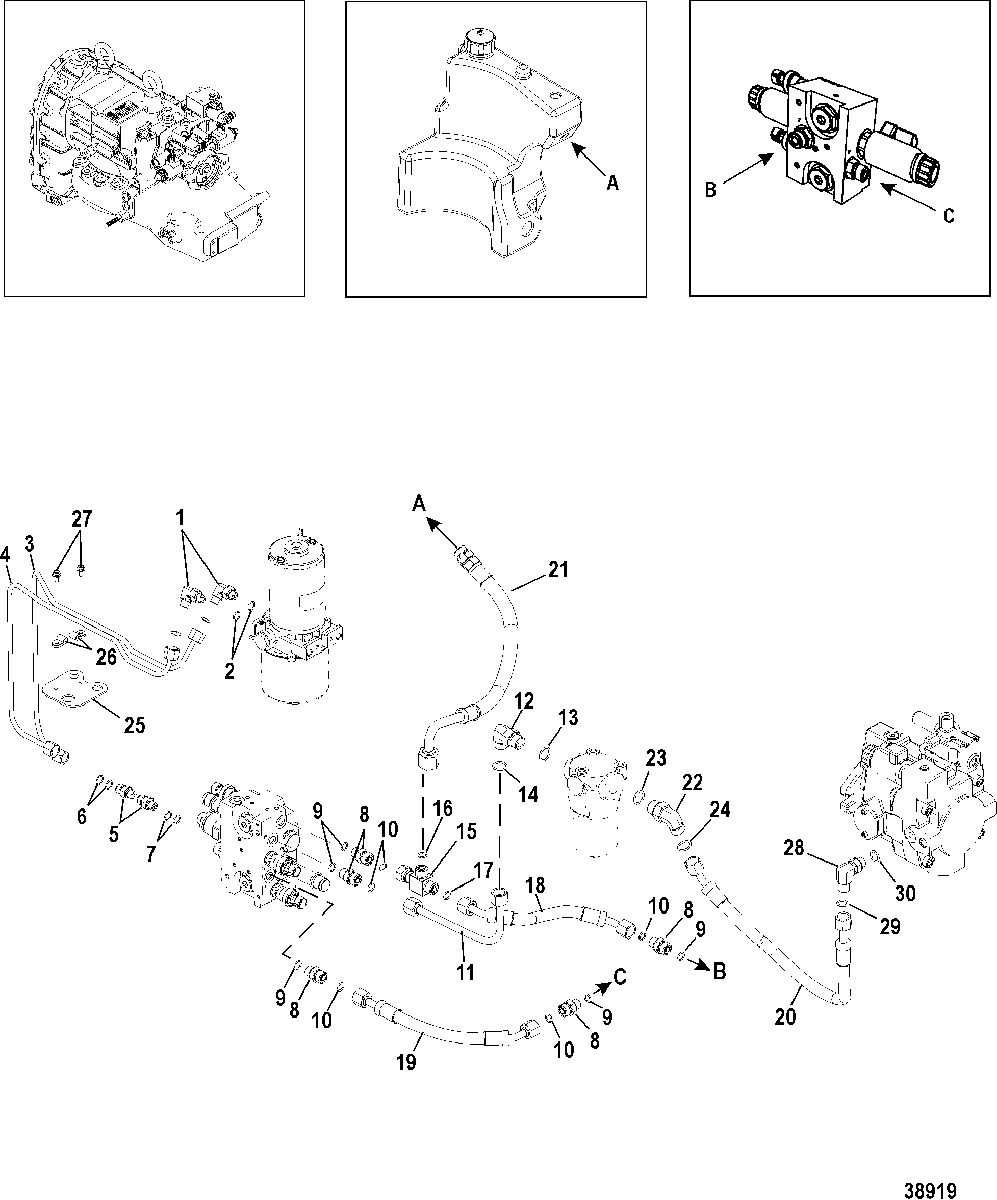

Hydraulic System, Port для Mercruiser - ZEUS 3000 0M962233 THRU 0M963370
-
№АртикулНазвание
-
18M8023290 FITTING, (90 Degree)(Stainless Steel)FITTING, (90 Degree)(Stainless Steel)
-
2NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
38M8023288 TUBETUBE
-
48M8023289 TUBETUBE
-
522-8M0033225 FITTING, Straight (Stainless Steel)FITTING, Straight (Stainless Steel)
-
6NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
7NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
822-8M0033226 FITTING, (11/16 - 16)Straight (Stainless Steel)FITTING, (11/16 - 16)Straight (Stainless Steel)
-
9NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
10NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
1132-8M0095228 HOSE ASSEMBLY, Filter to Steering ManifoldHOSE ASSEMBLY, Filter to Steering Manifold
-
1222-8M0038213 FITTING, 90 degreeFITTING, 90 degree
-
13NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
14NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
1522-8M0021783 FITTINGFITTING
-
16NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
17NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
1832-815113T04 HOSEHOSE
-
1932-8M0053642 HOSE ASSEMBLYHOSE ASSEMBLY
-
2032-8M0095232 HOSE, Pump to FilterHOSE, Pump to Filter
-
2132-8M0038026 HOSE, Manifold to ReservoirHOSE, Manifold to Reservoir
-
2222-8M0033311 FITTING, (90 Degree)(Stainless Steel)FITTING, (90 Degree)(Stainless Steel)
-
23NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
24NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
258M0007717 BRACKETBRACKET
-
2654-24836 CLIPCLIP
-
2710-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
2822-8M0033227 FITTING, 90 Degree (Stainless Steel)FITTING, 90 Degree (Stainless Steel)
-
29NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
30NSS NOT SOLD SEPARATENOT SOLD SEPARATE
