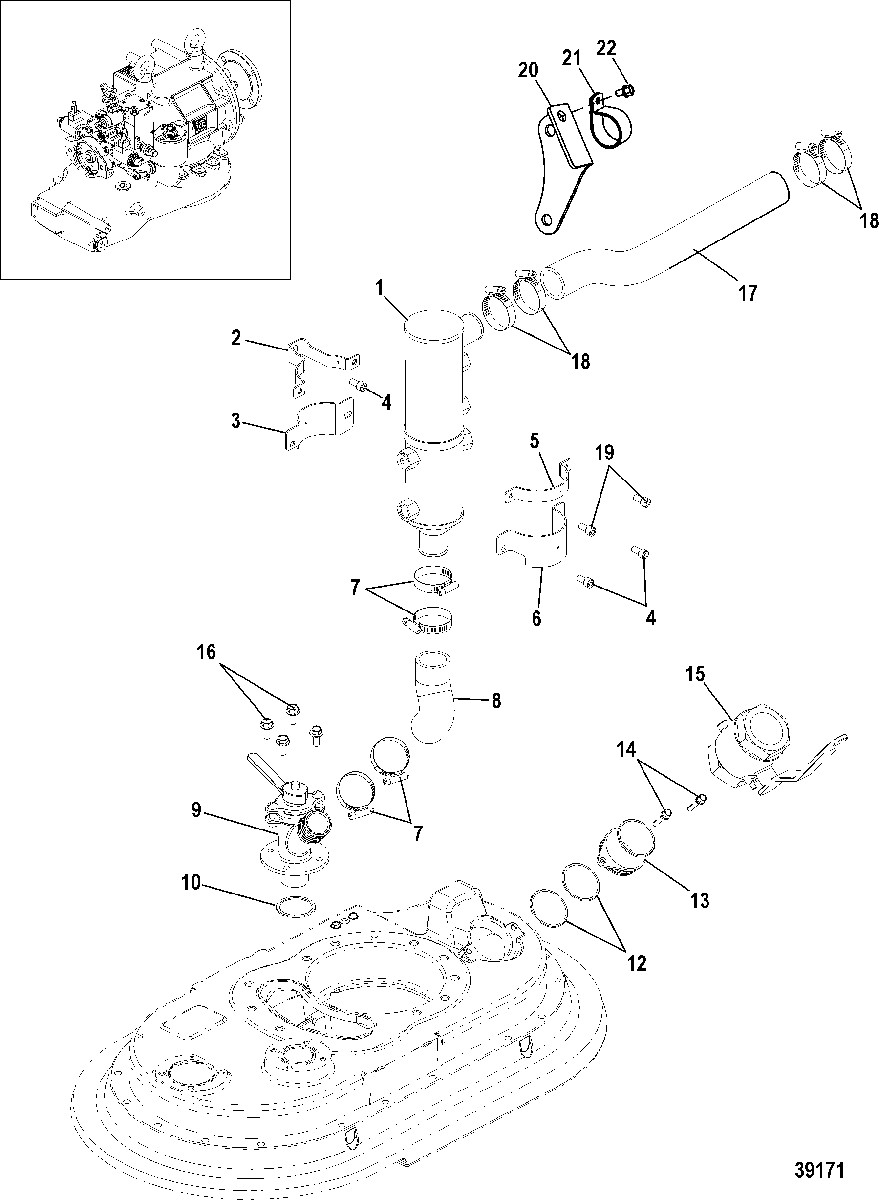

Cooling System(Without Drop Box) для Mercruiser - ZEUS 3000 0M962233 THRU 0M963370
-
№АртикулНазвание
-
18M0046594 COOLER, OilCOOLER, Oil
-
28M0007715 BRACKETBRACKET
-
38M0007713 BRACKETBRACKET
-
410-4008916 SCREW, (M8 x 16) Stainless SteelSCREW, (M8 x 16) Stainless Steel
-
58M0007716 BRACKETBRACKET
-
68M0007714 BRACKETBRACKET
-
754-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
832-8M0007711 HOSEHOSE
-
98M0007538 SEACOCK DUMPSEACOCK DUMP
-
1025-864295 O-RING, (2.05 x .103)O-RING, (2.05 x .103)
-
1119-8M0025635 PLUGPLUG
-
1225-822276 O-RING, (2.237 x .103)O-RING, (2.237 x .103)
-
1322-8M0007539 ADAPTERADAPTER
-
1410-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
158M0007542 SEACOCKSEACOCK
-
1610-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
1732-8M0025147 HOSEHOSE
-
1854-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
1910-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
208M0026220 BRACKETBRACKET
-
2154-8M0026219 CLIPCLIP
-
2210-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
NS37-8M0037747 DECAL, No StepDECAL, No Step
