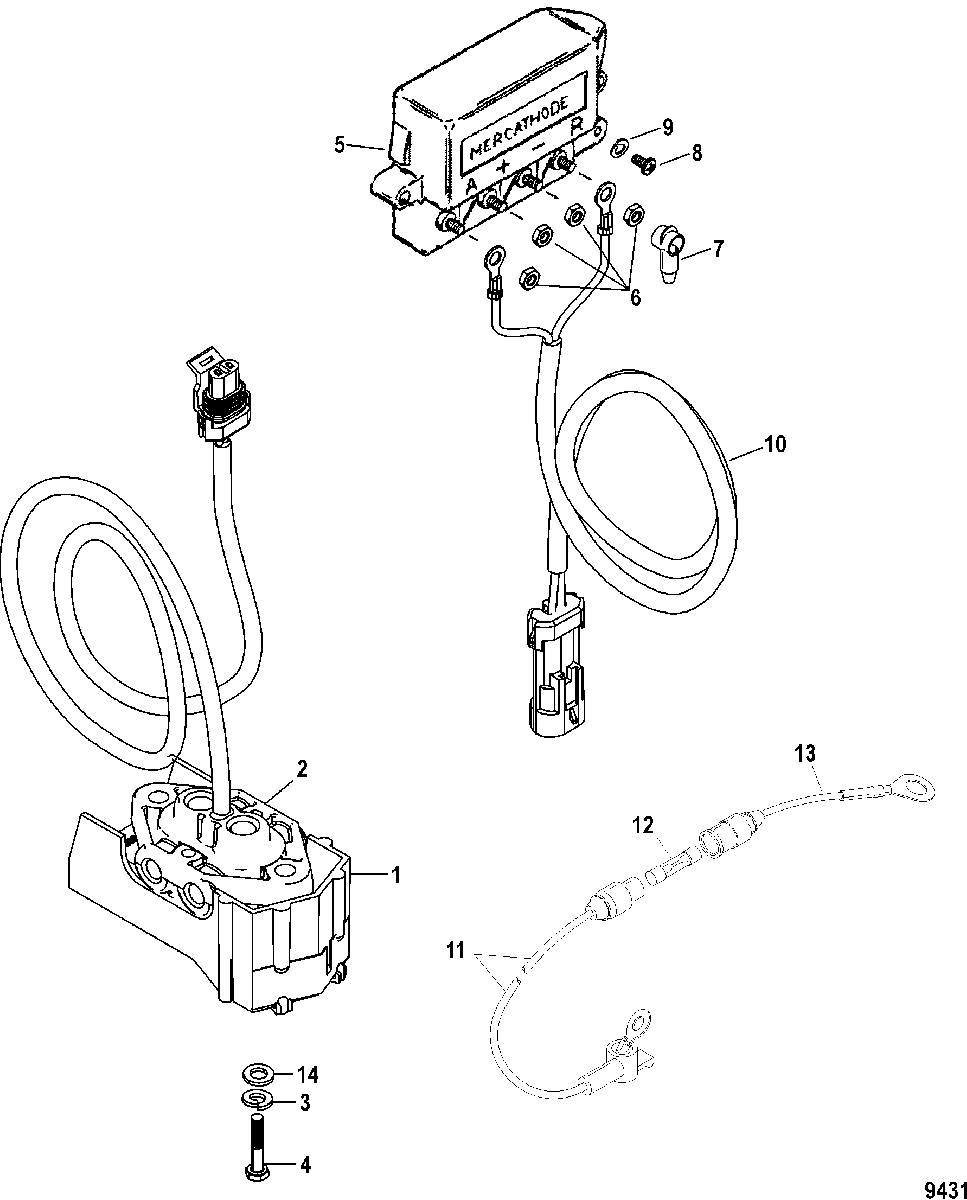

Mercathode Kit(Integrated Transom) для Mercruiser - INTEGRATED TRANSOM 0M052768 & Up
-
№АртикулНазвание
-
18M0085692 ELECTRODE ASSEMBLYELECTRODE ASSEMBLY
-
298825A13 COVER KITCOVER KIT
-
313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
410-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
542600A09 CONTROLLER ASSEMBLYCONTROLLER ASSEMBLY
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
785-65208 BOOT, Insulator - Black, InsulatorBOOT, Insulator - Black, Insulator
-
810-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1084-865181T01 HARNESS ASSEMBLY, MercathodeHARNESS ASSEMBLY, Mercathode
-
1184-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple StripCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
-
1288-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1384-95084A10 CABLE ASSEMBLY, (5.00 Inches) RedCABLE ASSEMBLY, (5.00 Inches) Red
-
1412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
