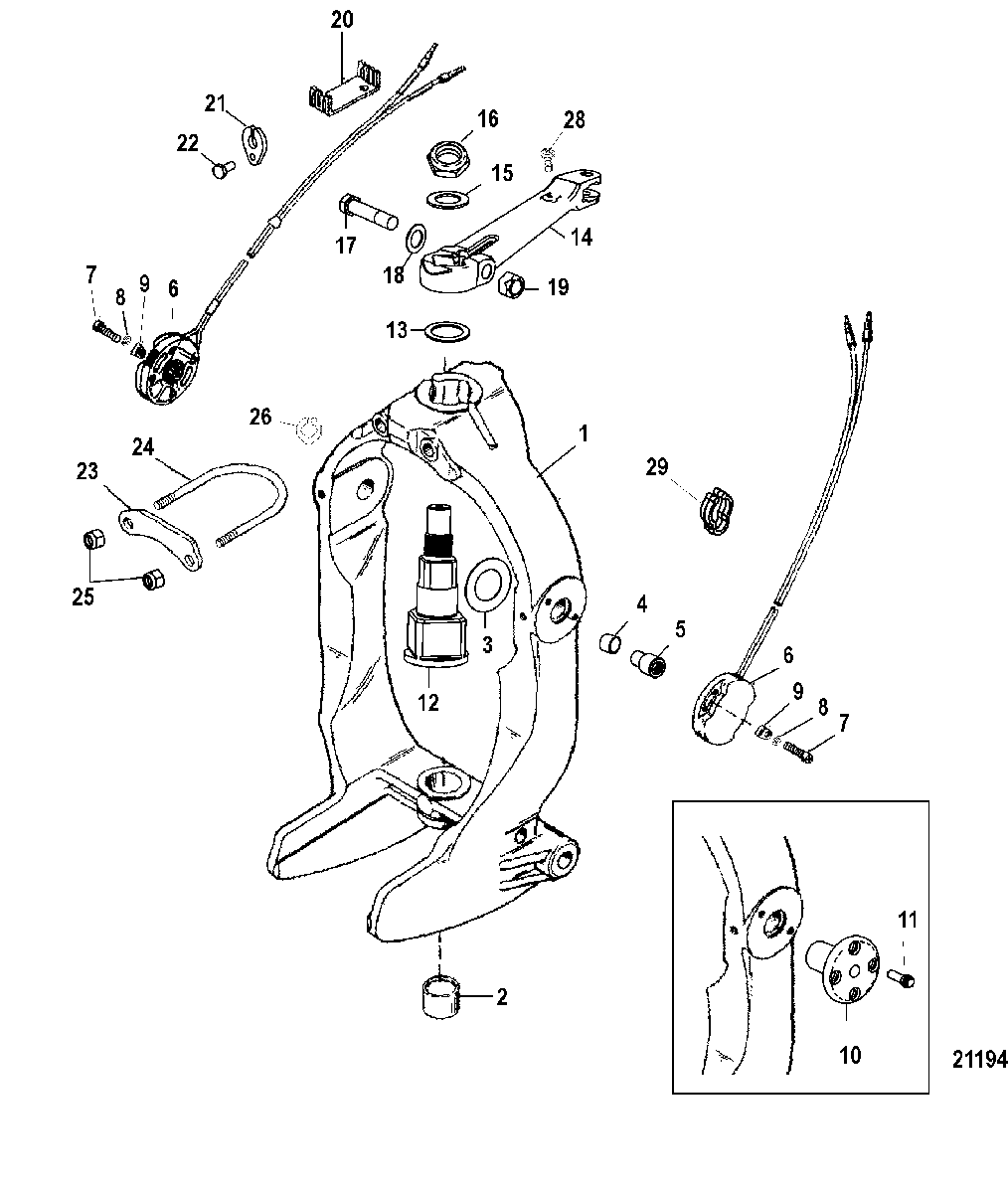

Gimbal Ring and Steering Lever для Mercruiser - INTEGRATED TRANSOM 0M052768 & Up
-
№АртикулНазвание
-
18M0062440 GIMBAL RING ASSEMBLY
(Magnum Transom)(SmartCraft) SN# 0W465664 & BelowGIMBAL RING ASSEMBLY
(Magnum Transom)(SmartCraft) SN# 0W465664 & Below -
1822374A17 GIMBAL RING ASSEMBLY
(Hi Performance With Or Without Trim Sender) SN# 0W168455 & BelowGIMBAL RING ASSEMBLY
(Hi Performance With Or Without Trim Sender) SN# 0W168455 & Below -
18M0062440 GIMBAL RING ASSEMBLY
(Magnum Transom)(SmartCraft) SN# 0W465665 & UpGIMBAL RING ASSEMBLY
(Magnum Transom)(SmartCraft) SN# 0W465665 & Up -
18M0063519 GIMBAL RING ASSEMBLY
(Magnum Transom)(SEACORE)GIMBAL RING ASSEMBLY
(Magnum Transom)(SEACORE) -
1822374A17 GIMBAL RING ASSEMBLY
(Hi Performance With Or Without Trim Sender) SN# 0W168456 & UpGIMBAL RING ASSEMBLY
(Hi Performance With Or Without Trim Sender) SN# 0W168456 & Up -
223-847638 BUSHINGBUSHING
-
312-41721 WASHERWASHER
-
423-847637 BUSHING
(Magnum Transom Only)BUSHING
(Magnum Transom Only) -
510-86801 SCREW, Hinge Pin
(Magnum Transom)SCREW, Hinge Pin
(Magnum Transom) -
6805320A03 SWITCH ASSEMBLY, Trim Sender/Trim Limit
(Magnum Series Transom) (SmartCraft with Analog Gauges)SWITCH ASSEMBLY, Trim Sender/Trim Limit
(Magnum Series Transom) (SmartCraft with Analog Gauges) -
NS805134A4 ROTOR KIT, Trim Sender
(For Use With Magnum Trim Sender)ROTOR KIT, Trim Sender
(For Use With Magnum Trim Sender) -
710-37978 SCREW, (#10-32 x .750) Stainless Steel
(Magnum Transom)SCREW, (#10-32 x .750) Stainless Steel
(Magnum Transom) -
813-26996 LOCKWASHER, (#10) Stainless Steel
(Magnum Transom)LOCKWASHER, (#10) Stainless Steel
(Magnum Transom) -
957008 RETAINER
(Magnum Transom)RETAINER
(Magnum Transom) -
108219971 PIN, Hinge
(Hi Performance)PIN, Hinge
(Hi Performance) -
1110-840907 SCREW, (.250-20 x .750)
(Hi Performance)SCREW, (.250-20 x .750)
(Hi Performance) -
1298230A1 SHAFT ASSEMBLY, Upper SwivelSHAFT ASSEMBLY, Upper Swivel
-
12866718A01 SHAFT ASSEMBLY, Upper Swivel
SEACORESHAFT ASSEMBLY, Upper Swivel
SEACORE -
1312-98548 WASHER, (1.125 )WASHER, (1.125 )
-
14866322A01 LEVER ASSEMBLY, SteeringLEVER ASSEMBLY, Steering
-
1512-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
1611-8M2014641 NUT, (.750-16)NUT, (.750-16)
-
1710-807204 SCREW, (.437-20 x 2.00)SCREW, (.437-20 x 2.00)
-
1812-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
1911-8M2008293 NUT, (.437-20)NUT, (.437-20)
-
2079146 RETAINERRETAINER
-
2154-12078 CLAMPCLAMP
-
2210-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
23816510T BRACKETBRACKET
-
2410-805164 U BOLT
(Magnum Transom)(SmartCraft) SN# 0W465664 & BelowU BOLT
(Magnum Transom)(SmartCraft) SN# 0W465664 & Below -
2410-805164 U BOLT
(Hi Performance With Or Without Trim Sender) SN# 0W168455 & BelowU BOLT
(Hi Performance With Or Without Trim Sender) SN# 0W168455 & Below -
2410-8M0120158 U BOLT
(Magnum Transom)(SmartCraft) SN# 0W465665 & UpU BOLT
(Magnum Transom)(SmartCraft) SN# 0W465665 & Up -
2410-8M0120158 U BOLT
(Hi Performance With Or Without Trim Sender) SN# 0W168456 & UpU BOLT
(Hi Performance With Or Without Trim Sender) SN# 0W168456 & Up -
2511-862903 NUT, (.375-24)
(Magnum Transom)(SmartCraft) SN# 0W465664 & BelowNUT, (.375-24)
(Magnum Transom)(SmartCraft) SN# 0W465664 & Below -
2511-862903 NUT, (.375-24)
(Hi Performance With Or Without Trim Sender) SN# 0W168455 & BelowNUT, (.375-24)
(Hi Performance With Or Without Trim Sender) SN# 0W168455 & Below -
2511-859116 NUT, (.437-20)
(Magnum Transom)(SmartCraft) SN# 0W465665 & UpNUT, (.437-20)
(Magnum Transom)(SmartCraft) SN# 0W465665 & Up -
2511-34933 NUT, (.437-20) Stainless Steel
(Magnum Transom)(SEACORE)NUT, (.437-20) Stainless Steel
(Magnum Transom)(SEACORE) -
2511-859116 NUT, (.437-20)
(Hi Performance With Or Without Trim Sender) SN# 0W168456 & UpNUT, (.437-20)
(Hi Performance With Or Without Trim Sender) SN# 0W168456 & Up -
2654-818557 CLAMPCLAMP
-
2810-45742 SCREW, (.190-32 x .312)SCREW, (.190-32 x .312)
-
2810-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
2954-818557001 CLAMPCLAMP
-
NS805130A6 SENDER KIT, Dual StationSENDER KIT, Dual Station
