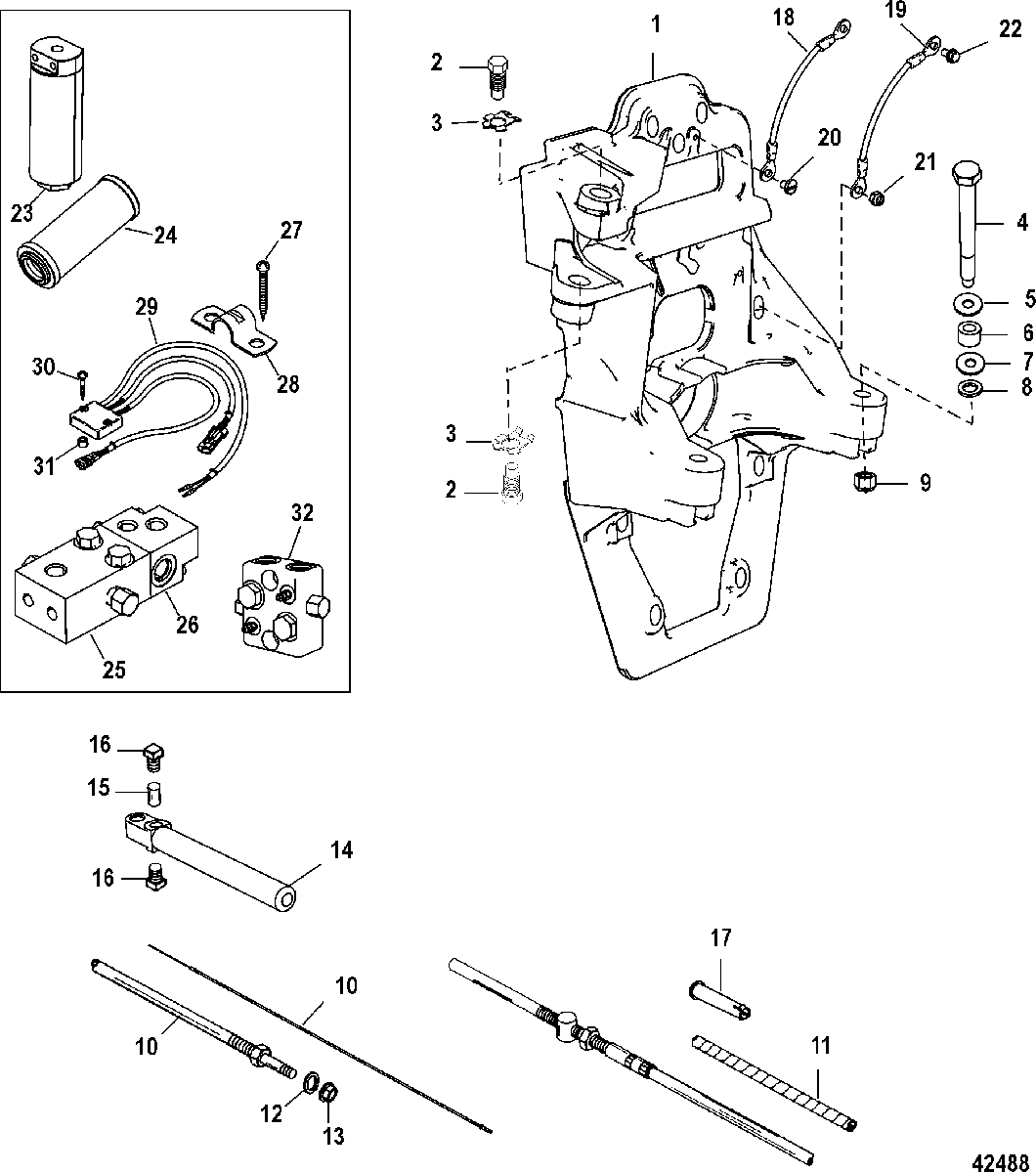

Transom Plate and Shift Cable для Mercruiser - HI PERFORMANCE TRANSOM 0W150003 & Up
-
№АртикулНазвание
-
18M0138839 PLATE ASSEMBLY, TransomPLATE ASSEMBLY, Transom
-
144117A12 PLATE ASSEMBLY, Transom, X-Haust Compatible
- Integrated Transom SN# 0M962900 & UpPLATE ASSEMBLY, Transom, X-Haust Compatible
- Integrated Transom SN# 0M962900 & Up -
210-8M0113173 BOLT, PivotBOLT, Pivot
-
314-42254 WASHER, TabWASHER, Tab
-
410-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
512-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
623-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
712-32834 WASHER, (.9375 x 1.750 x .172)WASHER, (.9375 x 1.750 x .172)
-
812-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
911-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
10865437A02 CABLE KIT, ShiftCABLE KIT, Shift
-
1190412 WRAPPING, (1.16 Feet Bulk), Cut As RequiredWRAPPING, (1.16 Feet Bulk), Cut As Required
-
1212-815472 WASHER, SealingWASHER, Sealing
-
1311-49910 NUT, (.375-24)NUT, (.375-24)
-
-43433A01 GUIDE KITGUIDE KIT
-
1443433 GUIDEGUIDE
-
1543436 ANCHORANCHOR
-
1610-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
17861632T INSERTINSERT
-
18NSS NOT SOLD SEPARATE, Grounding Cable AssemblyNOT SOLD SEPARATE, Grounding Cable Assembly
-
19NSS NOT SOLD SEPARATE, Grounding Cable AssemblyNOT SOLD SEPARATE, Grounding Cable Assembly
-
2010-24231 SCREW, (#10-32 x .250)SCREW, (#10-32 x .250)
-
2111-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2210-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2335-841067T1 FILTER ASSEMBLY, Power Steering
- Integrated TransomFILTER ASSEMBLY, Power Steering
- Integrated Transom -
2435-841076 ELEMENT, Power Steering Filter
- Integrated TransomELEMENT, Power Steering Filter
- Integrated Transom -
25840690T VALVE BLOCK ASSEMBLY
- Intergrated TransomVALVE BLOCK ASSEMBLY
- Intergrated Transom -
268M8021152 BLOCK ASSEMBLY, Adaptor - With Check Valves
- Intergrated Transom SN# 0M962899 & BelowBLOCK ASSEMBLY, Adaptor - With Check Valves
- Intergrated Transom SN# 0M962899 & Below -
2710-57807 SCREW, (#10-16 x .750) Stainless Steel
- Integrated TransomSCREW, (#10-16 x .750) Stainless Steel
- Integrated Transom -
2854-828370 BRACKET
- Integrated TransomBRACKET
- Integrated Transom -
29884359T1 MODULE ASSEMBLY, Gauge Driver
- Integrated TransomMODULE ASSEMBLY, Gauge Driver
- Integrated Transom -
3010-818224 SCREW, (#12-11 x 1.750)
- Integrated TransomSCREW, (#12-11 x 1.750)
- Integrated Transom -
3123-849083 SPACER
- Integrated TransomSPACER
- Integrated Transom -
32844399T01 VALVE BLOCK ASSEMBLY
SN# 0M962900 & UpVALVE BLOCK ASSEMBLY
SN# 0M962900 & Up
