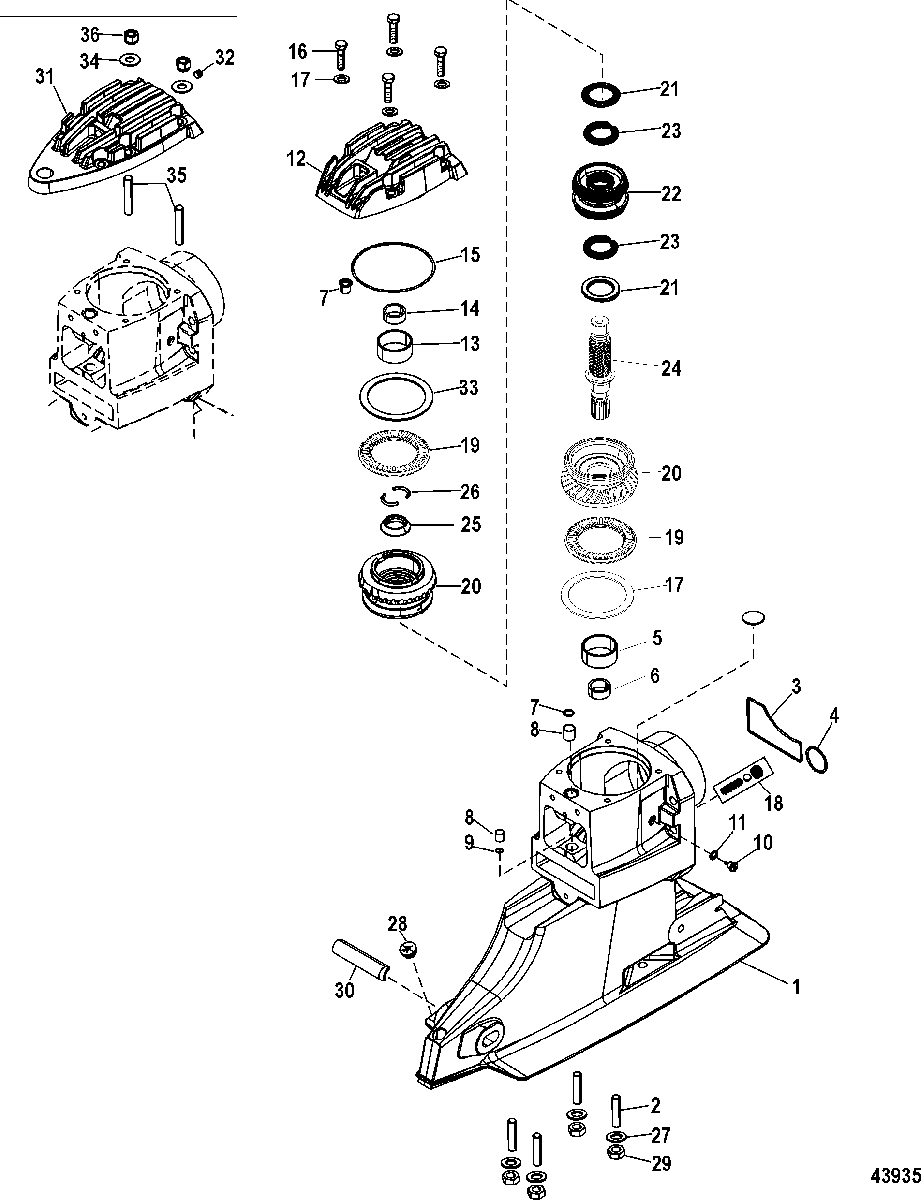

Driveshaft Housing and Drive Gears для Mercruiser - HI PERFORMANCE TRANSOM 0W150003 & Up

  • №
    Артикул
    Название
  • -
    1589-865440H56 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Magnum and Hi-Performance Transom)
    HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Magnum and Hi-Performance Transom)
  • -
    1589-865440H73 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Integrated Transom)
    HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Integrated Transom)
  • -
    1500-866459J04 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (SEACORE)(Use With Magnum and Hi-Performance Transom)
    HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (SEACORE)(Use With Magnum and Hi-Performance Transom)
  • 1
    1589-865440H70 HOUSING, Driveshaft - Basic
    HOUSING, Driveshaft - Basic
  • 1
    1500-866459J00 HOUSING, Driveshaft - Basic
    (SEACORE)
    HOUSING, Driveshaft - Basic
    (SEACORE)
  • 2
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 3
    16755Q1 SEAL
    SEAL
  • 4
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 5
    31-861791 RACE
    RACE
  • 6
    31-843240 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 7
    19-865866 PLUG, Shift Shaft Oil Seal
    PLUG, Shift Shaft Oil Seal
  • 8
    23-861209A1 BUSHING KIT
    BUSHING KIT
  • 9
    26-127091 SEAL
    SEAL
  • 10
    22-8M0058389 PLUG KIT, Drain - Magnetic
    PLUG KIT, Drain - Magnetic
  • 11
    26-830749 SEAL
    SEAL
  • 12
    865507A04 COVER ASSEMBLY, Top
    (Use With Magnum and Hi-Performance Transoms)
    COVER ASSEMBLY, Top
    (Use With Magnum and Hi-Performance Transoms)
  • 12
    866462A02 COVER ASSEMBLY, Top
    (SEACORE)(Use With Magnum and Hi-Performance Transoms)
    COVER ASSEMBLY, Top
    (SEACORE)(Use With Magnum and Hi-Performance Transoms)
  • 13
    31-861791 RACE
    RACE
  • 14
    31-843240 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 15
    25-97387 O-RING
    O-RING
  • 16
    10-58642 SCREW, (.375-16 x 1.50) Stainless Steel
    SCREW, (.375-16 x 1.50) Stainless Steel
  • 17
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 18
    24-17997A1 SPRING KIT
    SPRING KIT
  • 19
    31-861787 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 20
    43-840898A3 GEAR SET, (16/19)
    GEAR SET, (16/19)
  • 21
    31-861792 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 22
    52-865344A01 CLUTCH ASSEMBLY
    CLUTCH ASSEMBLY
  • 23
    24-93505 SPRING
    SPRING
  • 24
    45-812773T02 DRIVESHAFT, Upper
    DRIVESHAFT, Upper
  • 25
    23-86770 COLLAR
    COLLAR
  • 26
    97351 KEEPER
    KEEPER
  • 27
    12-861854 WASHER, (.453 x .750 x .032) Stainless Steel
    WASHER, (.453 x .750 x .032) Stainless Steel
  • 28
    19-824928001 PLUG, Rubber
    PLUG, Rubber
  • 29
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 30
    808006 INSERT, Trim Adjustment
    INSERT, Trim Adjustment
  • 31
    840838T02 COVER ASSEMBLY, Top
    (Use With Integrated Transoms)
    COVER ASSEMBLY, Top
    (Use With Integrated Transoms)
  • 32
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 33
    23-864596058 SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
    SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
  • 33
    23-864596059 SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
    SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
  • 33
    23-864596060 SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
    SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
  • 33
    23-864596061 SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
    SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
  • 33
    23-864596062 SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
    SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
  • 33
    23-864596063 SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
    SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
  • 33
    23-864596064 SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
    SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
  • 33
    23-864596065 SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
    SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
  • 33
    23-864596066 SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
    SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
  • 34
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 35
    16-840851 STUD
    STUD
  • 36
    11-82671013 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • -
    26-16709A2 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
