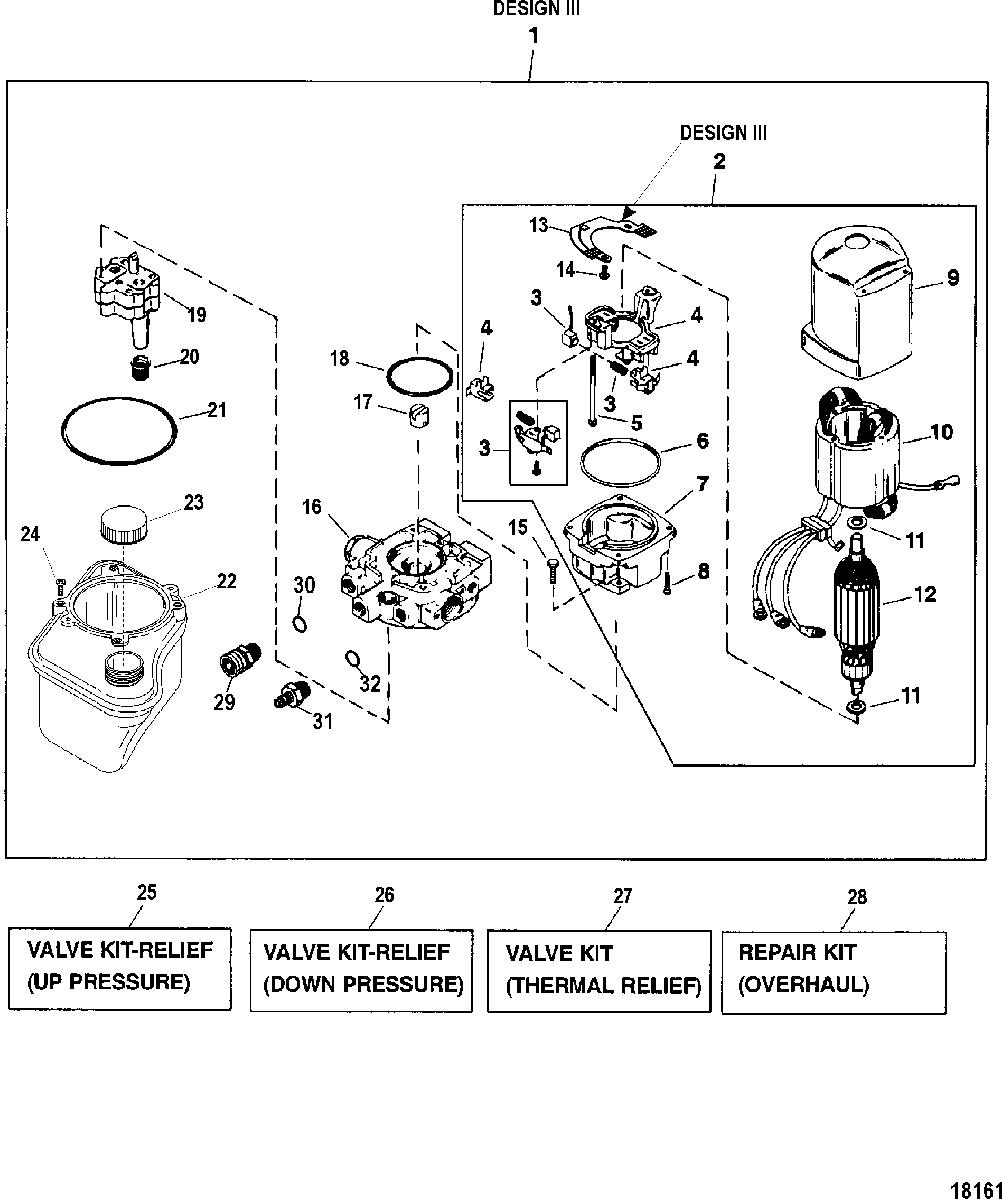

Pump/Motor(Top Mount Reservoir) (Design III - 14336A31) для Mercruiser - BRAVO XZ ONE 0L914990 THRU 0M999999
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY
(Design III - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)PUMP/MOTOR ASSEMBLY
(Design III - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
2891736T MOTOR ASSEMBLY, Complete
(Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)MOTOR ASSEMBLY, Complete
(Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
3891737 BRUSH KITBRUSH KIT
-
4891738 HOLDER ASSEMBLY, BrushesHOLDER ASSEMBLY, Brushes
-
510-891739 SCREW, Brush HolderSCREW, Brush Holder
-
625-891740 O-RINGO-RING
-
7NSS NOT SOLD SEPARATE, End Cap AssemblyNOT SOLD SEPARATE, End Cap Assembly
-
810-891741 SCREWSCREW
-
9NSS NOT SOLD SEPARATE, Cover Assembly - With BearingNOT SOLD SEPARATE, Cover Assembly - With Bearing
-
10NSS NOT SOLD SEPARATE, Field And Frame AssemblyNOT SOLD SEPARATE, Field And Frame Assembly
-
11NSS NOT SOLD SEPARATE, Thrust WasherNOT SOLD SEPARATE, Thrust Washer
-
12NSS NOT SOLD SEPARATE, ArmatureNOT SOLD SEPARATE, Armature
-
13892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference FilterBOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
-
14NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
1510-823444 SCREWSCREW
-
16808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
17803852 COUPLINGCOUPLING
-
1825-89498 O-RING, Motor EndO-RING, Motor End
-
1918529 PUMP ASSEMBLY, Includes ScrewsPUMP ASSEMBLY, Includes Screws
-
2035-89496 FILTERFILTER
-
2125-17645 O-RING, Reservoir EndO-RING, Reservoir End
-
22883166A2 RESERVOIR KIT, With Filters And O-Ring
(Reference 20 And Reference 21)RESERVOIR KIT, With Filters And O-Ring
(Reference 20 And Reference 21) -
2336-865448A01 CAP, StandardCAP, Standard
-
2336-865448A01 CAP, Oil Reservoir, Rough Water ApplicationCAP, Oil Reservoir, Rough Water Application
-
2410-883167 SCREW, (#8-32)SCREW, (#8-32)
-
25812498A1 VALVE KIT, Relief, Up PressureVALVE KIT, Relief, Up Pressure
-
26812499A1 VALVE KIT, Relief, Down PressureVALVE KIT, Relief, Down Pressure
-
2795353A1 VALVE KIT, Relief, ThermalVALVE KIT, Relief, Thermal
-
2818545A1 REPAIR KITREPAIR KIT
-
2922-865413002 FITTING, Stainless Steel
SN# 0W100000 & UpFITTING, Stainless Steel
SN# 0W100000 & Up -
3025-891868 O-RING
SN# 0W100000 & UpO-RING
SN# 0W100000 & Up -
3122-865412001 FITTING, Stainless Steel
SN# 0W100000 & UpFITTING, Stainless Steel
SN# 0W100000 & Up -
3225-891868 O-RING
SN# 0W100000 & UpO-RING
SN# 0W100000 & Up
