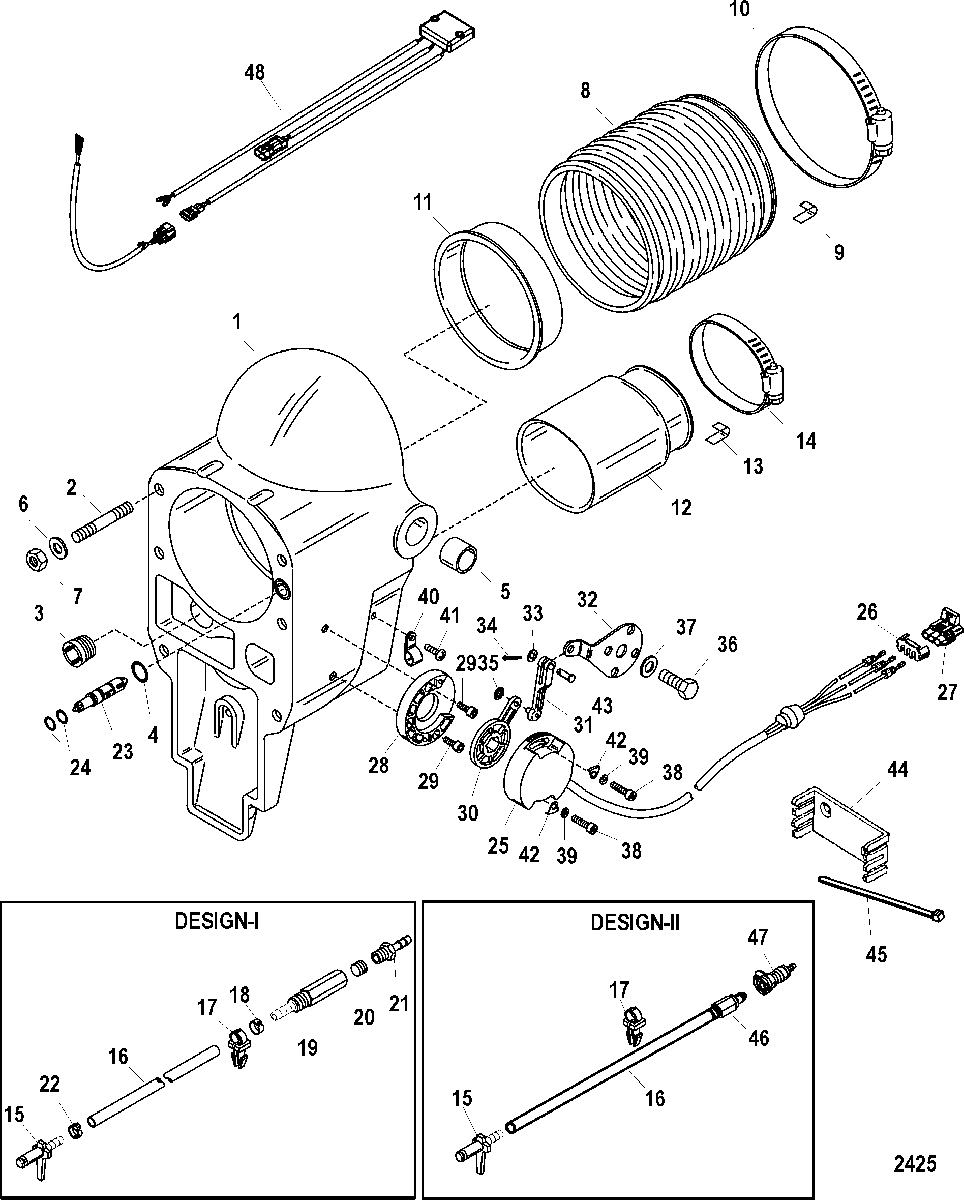

Bell Housing(Integrated And Hi Performance Transom) для Mercruiser - BRAVO XZ ONE 0L914990 THRU 0M999999

№

Артикул

Название
1

41646A11 BELL HOUSING ASSEMBLY

BELL HOUSING ASSEMBLY

125 250 ₽
2

16-59579 STUD, (.437-14/.437-20 x 2.812)

STUD, (.437-14/.437-20 x 2.812)

640 ₽
3

41674T INSERT

INSERT

490 ₽
4

25-62705 O-RING

O-RING

60 ₽
5

23-847637 BUSHING

BUSHING

1 910 ₽
6

12-35935 WASHER, (.435 x .875 x .105) Stainless Steel

WASHER, (.435 x .875 x .105) Stainless Steel

170 ₽
7

11-859116 NUT, (.437-20)

NUT, (.437-20)

320 ₽
8

8M0062406 BELLOWS ASSEMBLY

BELLOWS ASSEMBLY

14 670 ₽
9

54-8M0126505 CLIP, Grounding

CLIP, Grounding

150 ₽
10

54-815504372 CLAMP, Worm Gear

CLAMP, Worm Gear

1 150 ₽
11

862209 SLEEVE

SLEEVE

650 ₽
12

78458A1 TUBE

TUBE

7 000 ₽
13

54-8M0126505 CLIP, Grounding

CLIP, Grounding

150 ₽
14

54-815504348 CLAMP, Worm Gear

CLAMP, Worm Gear

1 980 ₽
15

815303T ADAPTOR

ADAPTOR

840 ₽
16

32-5495025 TUBING, (25.00 Feet Bulk), Speedo

TUBING, (25.00 Feet Bulk), Speedo

1 740 ₽
17

54-12994 CLIP

CLIP

220 ₽
18

865261 CLAMP

CLAMP

1 950 ₽
19

865261 FITTING
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below

FITTING
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below

1 950 ₽
20

22-878089 PLUG, Pipe (.0625-27)
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below

PLUG, Pipe (.0625-27)
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below

500 ₽
21

22-814382 CONNECTOR
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below

CONNECTOR
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below

670 ₽
22

54-818557 CLAMP

CLAMP

650 ₽
23

18920A1 VALVE ASSEMBLY

VALVE ASSEMBLY

8 150 ₽
24

25-48171 O-RING, (.364. x .070)

O-RING, (.364. x .070)

130 ₽
25

863187A2 SENDER ASSEMBLY, Trim
(For Use With Digital Or Analog)

SENDER ASSEMBLY, Trim
(For Use With Digital Or Analog)

14 350 ₽
26

831957 RETAINER

RETAINER

170 ₽
27

8307973 CONNECTOR

CONNECTOR

430 ₽
28

840846 HOUSING, Actuator Arm Support

HOUSING, Actuator Arm Support

4 400 ₽
29

10-90188 SCREW, (#10-24 x .500) Stainless Steel

SCREW, (#10-24 x .500) Stainless Steel

130 ₽
30

840845 ARM, Actuator

ARM, Actuator

3 850 ₽
31

840843 LINK ROD

LINK ROD

5 260 ₽
32

840844 BRACKET

BRACKET

2 630 ₽
33

12-89302 WASHER, (.203 x .406 x .040)

WASHER, (.203 x .406 x .040)

130 ₽
34

18-210711 COTTER PIN

COTTER PIN

230 ₽
35

11-65110 NUT

NUT

130 ₽
36

10-99204 SCREW, (.437-14 x 1.00) Stainless Steel

SCREW, (.437-14 x 1.00) Stainless Steel

380 ₽
37

12-842922 WASHER, (.450 x .750 x .060) Stainless Steel

WASHER, (.450 x .750 x .060) Stainless Steel

90 ₽
38

10-37978 SCREW, (#10-32 x .750) Stainless Steel

SCREW, (#10-32 x .750) Stainless Steel

200 ₽
39

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel

60 ₽
40

54-26550 CLAMP

CLAMP

190 ₽
41

10-8M0113176 SCREW, (#10-24 x .38)

SCREW, (#10-24 x .38)

0 ₽
42

57008 RETAINER

RETAINER

290 ₽
43

17-67297 PIN, Clevis

PIN, Clevis

890 ₽
44

79146 RETAINER

RETAINER

360 ₽
45

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
46

865391 FITTING ASSEMBLY, Speedometer, Male Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & Up

FITTING ASSEMBLY, Speedometer, Male Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & Up

4 190 ₽
47

22-865417 FITTING, Female Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & Up

FITTING, Female Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & Up

1 150 ₽
48

884359T1 MODULE ASSEMBLY, Trim Sender

MODULE ASSEMBLY, Trim Sender

16 350 ₽
