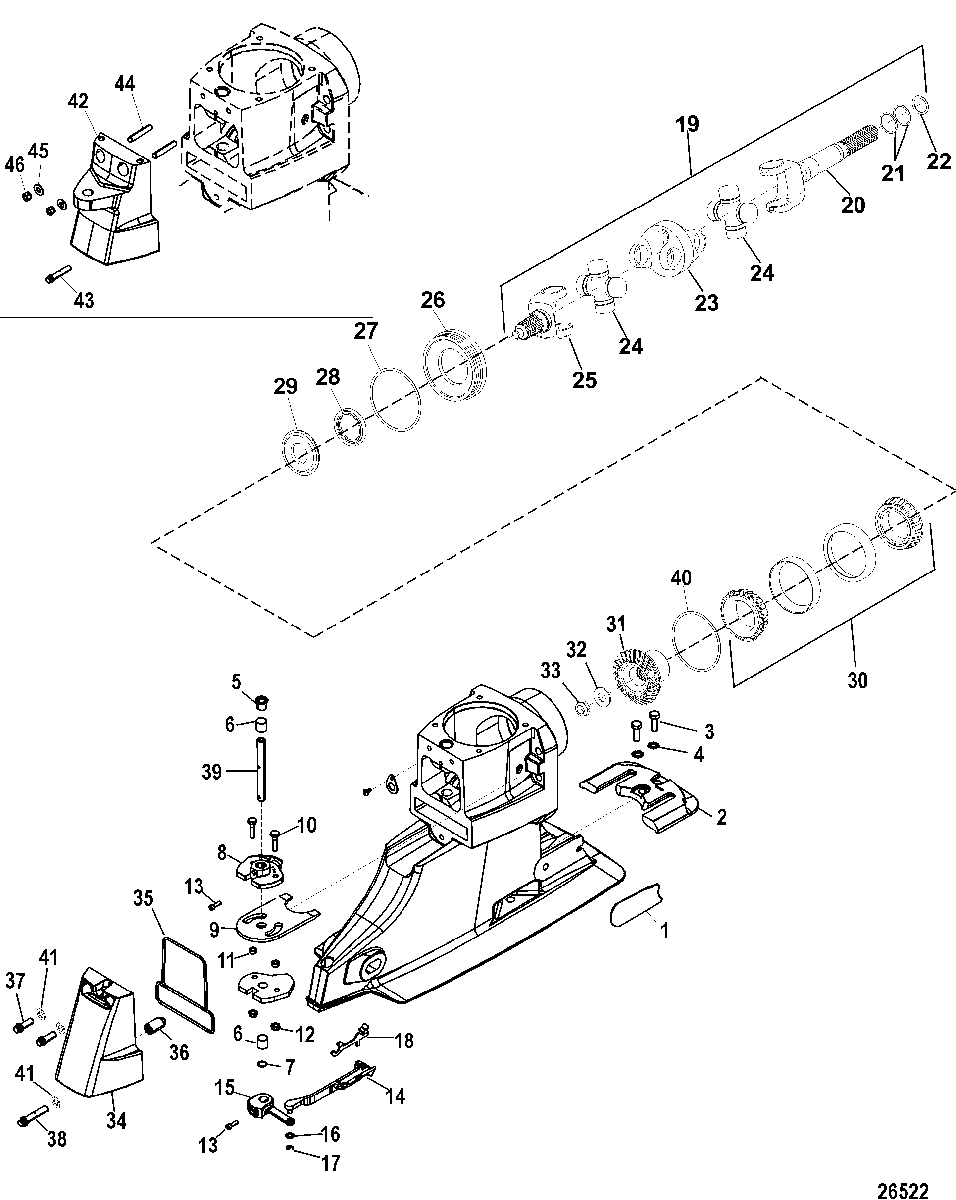

Universal Joint and Shift Components для Mercruiser - BRAVO XR SPORTMASTER 0M906878 & Up

  • №
    Артикул
    Название
  • -
    1589-865440H56 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Magnum and Hi-Performance Transom)
    HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Magnum and Hi-Performance Transom)
  • -
    1589-865440H73 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Integrated Transom)
    HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (Use With Integrated Transom)
  • -
    1500-866459J04 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (SEACORE)(Use With Magnum and Hi-Performance Transom)
    HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
    (SEACORE)(Use With Magnum and Hi-Performance Transom)
  • -
    1589-865440H70 HOUSING, Driveshaft - Basic
    HOUSING, Driveshaft - Basic
  • -
    1500-866459J00 HOUSING, Driveshaft - Basic
    (SEACORE)
    HOUSING, Driveshaft - Basic
    (SEACORE)
  • 1
    805261A1 WEAR PAD KIT
    WEAR PAD KIT
  • 2
    97-821630Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 3
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 4
    13-35479 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 5
    19-865866 PLUG, Shift Shaft Oil Seal
    PLUG, Shift Shaft Oil Seal
  • 6
    23-861209A1 BUSHING KIT
    BUSHING KIT
  • 7
    26-127091 SEAL
    SEAL
  • 8
    806552A1 YOKE AND CAM ASSEMBLY
    YOKE AND CAM ASSEMBLY
  • 9
    806552 YOKE, Shifter
    YOKE, Shifter
  • 10
    10-805733 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 11
    23-12706 SPACER, (.194 x .375)
    SPACER, (.194 x .375)
  • 12
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 13
    10-865900 SCREW, (.250-28 x .930)
    SCREW, (.250-28 x .930)
  • 14
    861175A2 SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
    SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
  • 15
    NSS NOT SOLD SEPARATE, SHIFT LEVER
    NOT SOLD SEPARATE, SHIFT LEVER
  • 16
    12-20583 WASHER
    WASHER
  • 17
    18-26953 COTTER PIN
    COTTER PIN
  • 18
    86776 LATCH
    LATCH
  • 19
    865425A03 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 19
    865425T02 UNIVERSAL JOINT ASSEMBLY
    (Use With Integrated Transom Assemblies)
    UNIVERSAL JOINT ASSEMBLY
    (Use With Integrated Transom Assemblies)
  • 20
    866133A01 YOKE, Splined, Coupler End
    YOKE, Splined, Coupler End
  • 20
    866135A01 YOKE, Splined, Coupler End
    (Integrated Transom Assembly)
    YOKE, Splined, Coupler End
    (Integrated Transom Assembly)
  • 21
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 22
    25-35027 O-RING, (1.046)
    O-RING, (1.046)
  • 23
    866137T SOCKET, Center
    SOCKET, Center
  • 24
    866136A01 CROSS AND BEARING
    CROSS AND BEARING
  • 25
    866134T YOKE, Gear End
    YOKE, Gear End
  • 26
    11-841026A2 RETAINER/SEAL KIT
    RETAINER/SEAL KIT
  • 27
    25-861844 O-RING
    O-RING
  • 28
    26-43993 SEAL, Oil
    SEAL, Oil
  • 29
    12-862134 WASHER
    WASHER
  • 30
    31-8M0104358 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 31
    43-849320T GEAR, (16 Teeth)
    GEAR, (16 Teeth)
  • 32
    12-861832 WASHER
    WASHER
  • 33
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
  • 34
    865441A04 COVER ASSEMBLY, Back
    (Use With Magnum and Hi-Performance Transom)
    COVER ASSEMBLY, Back
    (Use With Magnum and Hi-Performance Transom)
  • 34
    866463A02 COVER ASSEMBLY, Back
    (SEACORE)(Use With Magnum and Hi-Performance Transom)
    COVER ASSEMBLY, Back
    (SEACORE)(Use With Magnum and Hi-Performance Transom)
  • 35
    12708 SEAL
    SEAL
  • 36
    865711A02 DETENT ASSEMBLY
    DETENT ASSEMBLY
  • 37
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 38
    10-87158 SCREW, (.375-16 x 1.875)
    SCREW, (.375-16 x 1.875)
  • 39
    12711 SHAFT
    SHAFT
  • 40
    15-888927028 SHIM, (.028)
    SHIM, (.028)
  • 40
    15-888927029 SHIM, (.029)
    SHIM, (.029)
  • 40
    15-888927030 SHIM, (.030)
    SHIM, (.030)
  • 40
    15-888927031 SHIM, (.031)
    SHIM, (.031)
  • 40
    15-888927032 SHIM, (.032)
    SHIM, (.032)
  • 40
    15-888927033 SHIM, (.033)
    SHIM, (.033)
  • 40
    15-888927034 SHIM, (.034)
    SHIM, (.034)
  • 40
    15-888927035 SHIM, (.035)
    SHIM, (.035)
  • 40
    15-888927036 SHIM, (.036)
    SHIM, (.036)
  • 40
    15-888927037 SHIM, (.037)
    SHIM, (.037)
  • 40
    15-888927038 SHIM, (.038)
    SHIM, (.038)
  • 40
    15-888927039 SHIM, (.039)
    SHIM, (.039)
  • 40
    15-888927040 SHIM, (.040)
    SHIM, (.040)
  • 41
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    SEACORE
    WASHER, (.390 x .625 x .062) Stainless Steel
    SEACORE
  • 42
    842783T01 COVER ASSEMBLY
    COVER ASSEMBLY
  • 43
    10-87158 SCREW, (.375-16 x 1.875)
    SCREW, (.375-16 x 1.875)
  • 44
    16-8M0022145 STUD, (.375-16/.375-24 x 1.750)
    STUD, (.375-16/.375-24 x 1.750)
  • 45
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 46
    11-82671013 NUT, (.375-24)
    NUT, (.375-24)
  • -
    26-16709A2 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
