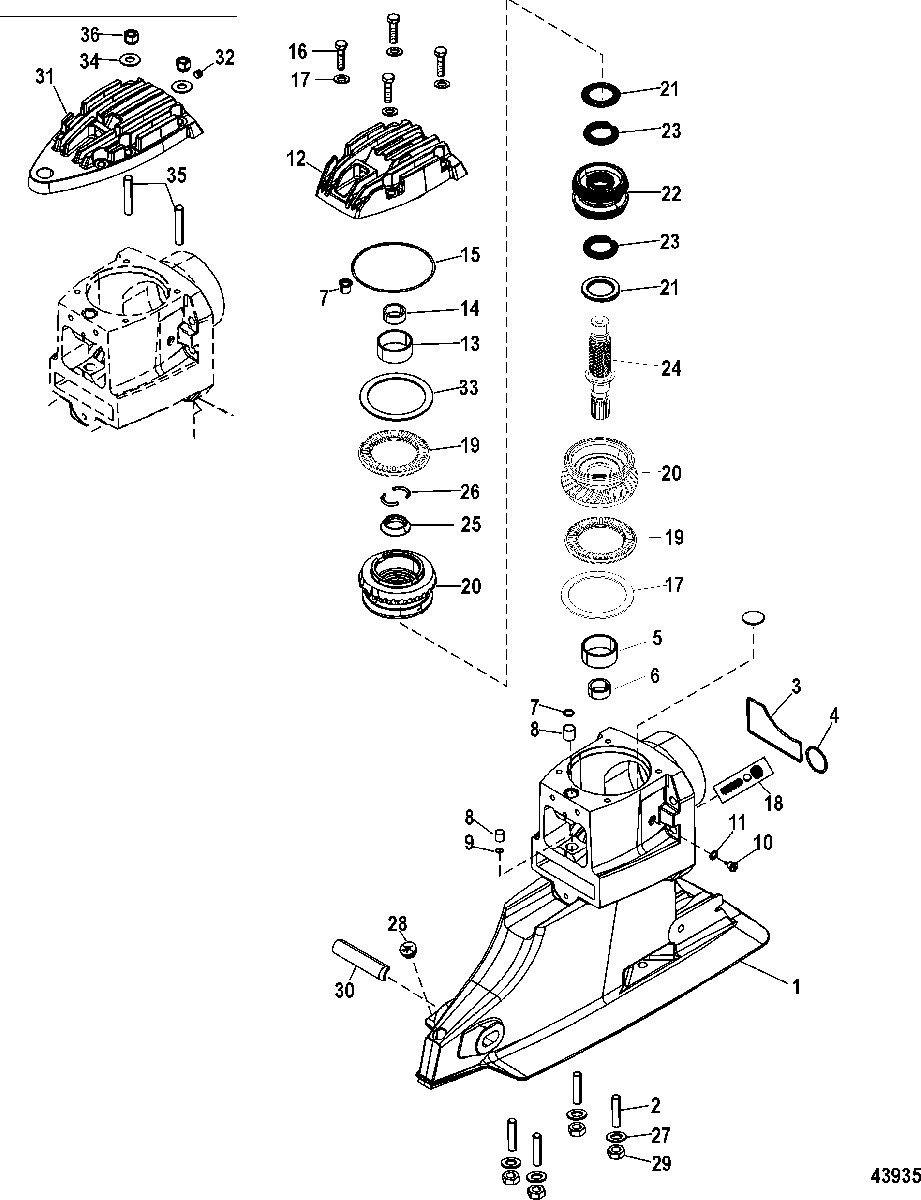

Driveshaft Housing and Drive Gears для Mercruiser - BRAVO XR SPORTMASTER 0M906878 & Up
-
№АртикулНазвание
-
-1589-865440H56 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
(Use With Magnum and Hi-Performance Transom)HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
(Use With Magnum and Hi-Performance Transom) -
-1589-865440H73 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
(Use With Integrated Transom)HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
(Use With Integrated Transom) -
-1500-866459J04 HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
(SEACORE)(Use With Magnum and Hi-Performance Transom)HOUSING ASSEMBLY, Driveshaft - Complete (16/19)
(SEACORE)(Use With Magnum and Hi-Performance Transom) -
11589-865440H70 HOUSING, Driveshaft - BasicHOUSING, Driveshaft - Basic
-
11500-866459J00 HOUSING, Driveshaft - Basic
(SEACORE)HOUSING, Driveshaft - Basic
(SEACORE) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
316755Q1 SEALSEAL
-
425-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
531-861791 RACERACE
-
631-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
719-865866 PLUG, Shift Shaft Oil SealPLUG, Shift Shaft Oil Seal
-
823-861209A1 BUSHING KITBUSHING KIT
-
926-127091 SEALSEAL
-
1022-8M0058389 PLUG KIT, Drain - MagneticPLUG KIT, Drain - Magnetic
-
1126-830749 SEALSEAL
-
12865507A04 COVER ASSEMBLY, Top
(Use With Magnum and Hi-Performance Transoms)COVER ASSEMBLY, Top
(Use With Magnum and Hi-Performance Transoms) -
12866462A02 COVER ASSEMBLY, Top
(SEACORE)(Use With Magnum and Hi-Performance Transoms)COVER ASSEMBLY, Top
(SEACORE)(Use With Magnum and Hi-Performance Transoms) -
1331-861791 RACERACE
-
1431-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1525-97387 O-RINGO-RING
-
1610-58642 SCREW, (.375-16 x 1.50) Stainless SteelSCREW, (.375-16 x 1.50) Stainless Steel
-
1712-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1824-17997A1 SPRING KITSPRING KIT
-
1931-861787 BEARING ASSEMBLYBEARING ASSEMBLY
-
2043-840898A3 GEAR SET, (16/19)GEAR SET, (16/19)
-
2131-861792 BEARING ASSEMBLYBEARING ASSEMBLY
-
2252-865344A01 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
2324-93505 SPRINGSPRING
-
2445-812773T02 DRIVESHAFT, UpperDRIVESHAFT, Upper
-
2523-86770 COLLARCOLLAR
-
2697351 KEEPERKEEPER
-
2712-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
2819-824928001 PLUG, RubberPLUG, Rubber
-
2911-35053 NUT, (.437-20)NUT, (.437-20)
-
30808006 INSERT, Trim AdjustmentINSERT, Trim Adjustment
-
31840838T02 COVER ASSEMBLY, Top
(Use With Integrated Transoms)COVER ASSEMBLY, Top
(Use With Integrated Transoms) -
3222-390721 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
3323-864596058 SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust BearingSHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
-
3323-864596059 SHIM/RACE, (.0585/.0594 Thick) White, Thrust BearingSHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
-
3323-864596060 SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust BearingSHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
-
3323-864596061 SHIM/RACE, (.0605/.0614 Thick) Green, Thrust BearingSHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
-
3323-864596062 SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust BearingSHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
-
3323-864596063 SHIM/RACE, (.0625/.0634 Thick) Red, Thrust BearingSHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
-
3323-864596064 SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust BearingSHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
-
3323-864596065 SHIM/RACE, (.0645/.0654 Thick) Black, Thrust BearingSHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
-
3323-864596066 SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust BearingSHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
-
3412-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
3516-840851 STUDSTUD
-
3611-82671013 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
-26-16709A2 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
