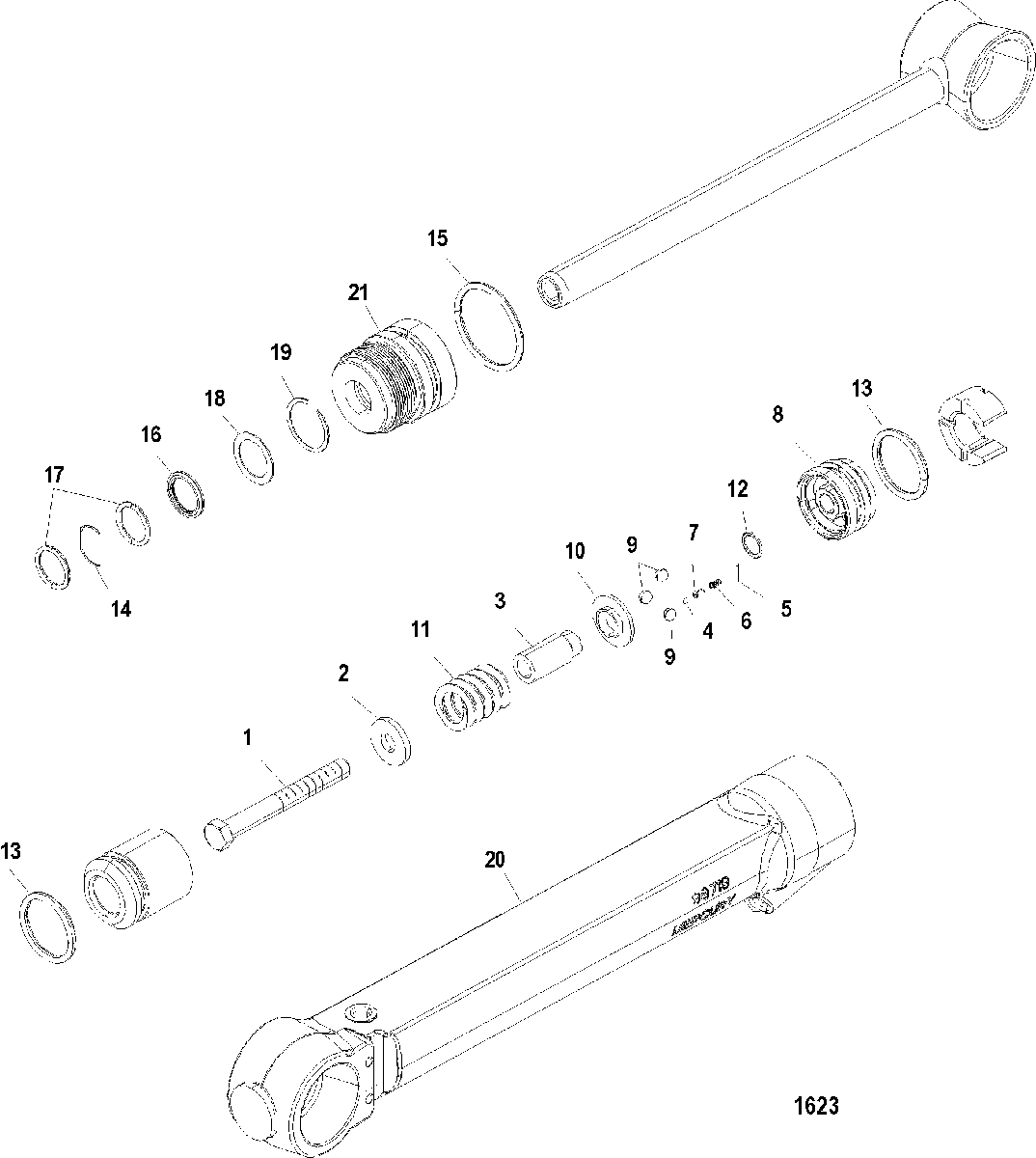

Power Trim Cylinder Repair Kits для Mercruiser - BRAVO X ONE 0M100001 THRU 0W249999
-
№АртикулНазвание
-
_87399A2 OVERHAUL KITOVERHAUL KIT
-
1NSS NOT SOLD SEPARATE, Screw (M10 x 85)NOT SOLD SEPARATE, Screw (M10 x 85)
-
2NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
3NSS NOT SOLD SEPARATE, GuideNOT SOLD SEPARATE, Guide
-
4NSS NOT SOLD SEPARATE, Ball, Steel (.109 Diameter)NOT SOLD SEPARATE, Ball, Steel (.109 Diameter)
-
5NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
6NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
7NSS NOT SOLD SEPARATE, EyeletNOT SOLD SEPARATE, Eyelet
-
8NSS NOT SOLD SEPARATE, PistonNOT SOLD SEPARATE, Piston
-
9NSS NOT SOLD SEPARATE, Ball, (.250 Diameter)NOT SOLD SEPARATE, Ball, (.250 Diameter)
-
10NSS NOT SOLD SEPARATE, PusherNOT SOLD SEPARATE, Pusher
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
-25-87400A2 SEAL KITSEAL KIT
-
12NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
13NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
14NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
15NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
16NSS NOT SOLD SEPARATE, Scraper RodNOT SOLD SEPARATE, Scraper Rod
-
17NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
18NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
19NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
2098703T TUBE, Port Cylinder
(Casting # 98703 Or 98718)TUBE, Port Cylinder
(Casting # 98703 Or 98718) -
2098704T TUBE, Starboard Cylinder
(Casting # 98704 Or 98719)TUBE, Starboard Cylinder
(Casting # 98704 Or 98719) -
2198-8M0118340 CAPCAP
