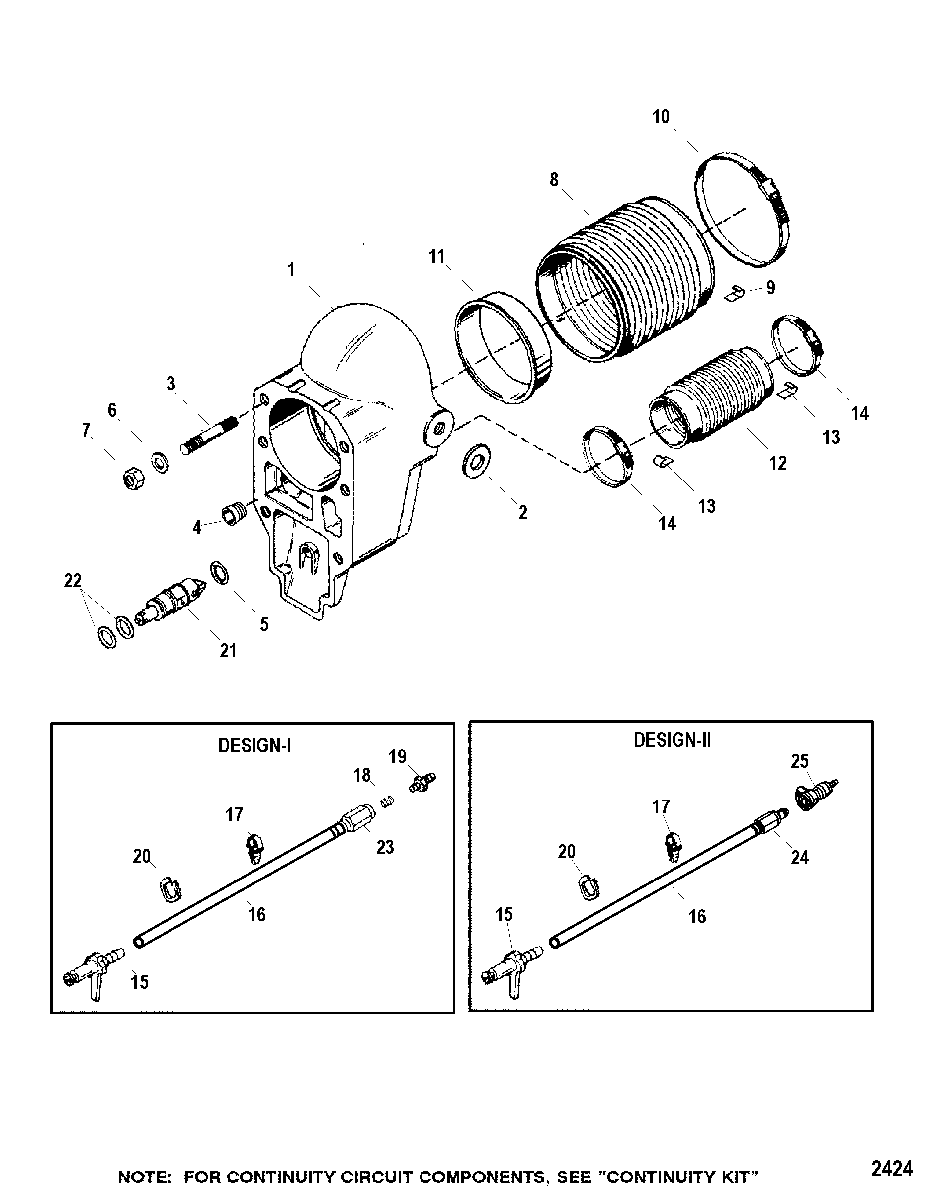

Bell Housing для Mercruiser - BRAVO X ONE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    41646A9 BELL HOUSING ASSEMBLY
    BELL HOUSING ASSEMBLY
  • 2
    12-806241 WASHER
    WASHER
  • 3
    16-59579 STUD, (.437-14/.437-20 x 2.812)
    STUD, (.437-14/.437-20 x 2.812)
  • 4
    41674T INSERT
    INSERT
  • 5
    25-62705 O-RING
    O-RING
  • 6
    12-35935 WASHER, (.435 x .875 x .105) Stainless Steel
    WASHER, (.435 x .875 x .105) Stainless Steel
  • 7
    11-859116 NUT, (.437-20)
    NUT, (.437-20)
  • 8
    8M0062406 BELLOWS ASSEMBLY
    BELLOWS ASSEMBLY
  • 9
    54-8M0126505 CLIP, Grounding
    CLIP, Grounding
  • 10
    54-815504372 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    862209 SLEEVE
    SLEEVE
  • 12
    18654A1 BELLOWS ASSEMBLY, Exhaust
    BELLOWS ASSEMBLY, Exhaust
  • 12
    78458A1 TUBE, Exhaust
    TUBE, Exhaust
  • 13
    54-8M0126505 CLIP, Grounding
    CLIP, Grounding
  • 14
    54-815504348 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 15
    815303T ADAPTOR
    ADAPTOR
  • 16
    32-5495025 TUBING, (25.00 Feet Bulk), Speedo
    TUBING, (25.00 Feet Bulk), Speedo
  • 17
    54-12994 CLIP
    CLIP
  • 18
    22-878089 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 19
    22-814382 CONNECTOR
    CONNECTOR
  • 20
    54-818557 CLAMP
    CLAMP
  • 21
    18920A1 VALVE ASSEMBLY, Use With Oil Reservoir
    VALVE ASSEMBLY, Use With Oil Reservoir
  • 22
    25-48171 O-RING, (.364. x .070), Use With Oil Reservoir
    O-RING, (.364. x .070), Use With Oil Reservoir
  • 23
    865261 FITTING, Speedo Tube Assembly
    (Design I) (Magnum Transom) SN# 0M815500 & Below
    FITTING, Speedo Tube Assembly
    (Design I) (Magnum Transom) SN# 0M815500 & Below
  • 23
    865261 FITTING, Speedo Tube Assembly
    (Design I) (Smart Craft Transom) SN# 0M805156 & Below
    FITTING, Speedo Tube Assembly
    (Design I) (Smart Craft Transom) SN# 0M805156 & Below
  • 24
    865391 FITTING ASSEMBLY, Speedometer, Male Quick Connect
    (Design-II) (Magnum Transom) SN# 0M815501 & Up
    FITTING ASSEMBLY, Speedometer, Male Quick Connect
    (Design-II) (Magnum Transom) SN# 0M815501 & Up
  • 24
    865391 FITTING ASSEMBLY, Speedometer, Male Quick Connect
    (Design-II) (Smart Craft Transom) SN# 0M805157 & Up
    FITTING ASSEMBLY, Speedometer, Male Quick Connect
    (Design-II) (Smart Craft Transom) SN# 0M805157 & Up
  • 25
    22-865417 FITTING, Female Quick Connect
    (Design-II) (Magnum Transom) SN# 0M815501 & Up
    FITTING, Female Quick Connect
    (Design-II) (Magnum Transom) SN# 0M815501 & Up
  • 25
    22-865417 FITTING, Female Quick Connect
    (Design-II) (Smart Craft Transom) SN# 0M805157 & Up
    FITTING, Female Quick Connect
    (Design-II) (Smart Craft Transom) SN# 0M805157 & Up
