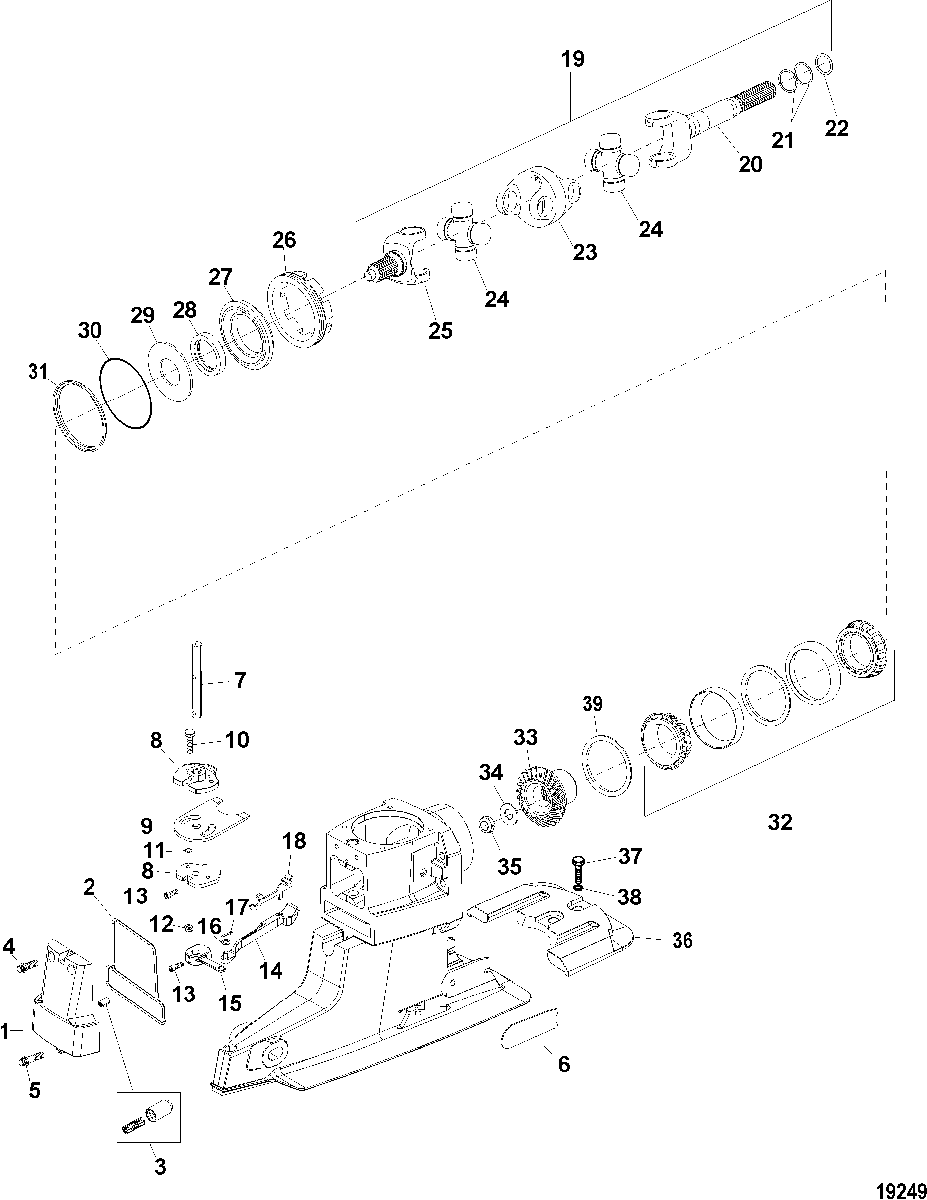

UNIVERSAL JOINT AND SHIFTER COMPONENTS(STANDARD) для Mercruiser - BRAVO THREE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    12717A1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    12708 SEAL
    SEAL
  • 3
    865711A02 DETENT ASSEMBLY
    DETENT ASSEMBLY
  • 4
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 5
    10-87158 SCREW, (.375-16 x 1.875)
    SCREW, (.375-16 x 1.875)
  • 6
    805261A1 WEAR PAD KIT
    WEAR PAD KIT
  • 7
    12711 SHAFT
    SHAFT
  • 8
    806552A1 YOKE AND CAM ASSEMBLY
    YOKE AND CAM ASSEMBLY
  • 9
    806552 YOKE, Shifter
    YOKE, Shifter
  • 10
    10-805733 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 11
    23-12706 SPACER, (.194 x .375)
    SPACER, (.194 x .375)
  • 12
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 13
    10-38615 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 14
    861175A2 SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
    SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
  • 15
    NSS NOT SOLD SEPARATE, LEVER-Shift
    NOT SOLD SEPARATE, LEVER-Shift
  • 16
    12-20583 WASHER
    WASHER
  • 17
    18-26953 COTTER PIN
    COTTER PIN
  • 18
    86776 LATCH
    LATCH
  • 19
    864244A2 UNIVERSAL JOINT ASSEMBLY, Gray
    (Meritor Assembly) SN# 0M111207 & Below
    UNIVERSAL JOINT ASSEMBLY, Gray
    (Meritor Assembly) SN# 0M111207 & Below
  • 19
    864244A2 UNIVERSAL JOINT ASSEMBLY, Black
    (GKN Assembly) SN# 0M111208 & Up
    UNIVERSAL JOINT ASSEMBLY, Black
    (GKN Assembly) SN# 0M111208 & Up
  • 20
    59830A7 YOKE ASSEMBLY (COUPLER END)
    SN# 0M111207 & Below
    YOKE ASSEMBLY (COUPLER END)
    SN# 0M111207 & Below
  • 20
    864244A01 YOKE ASSEMBLY (COUPLER END)
    SN# 0M111208 & Up
    YOKE ASSEMBLY (COUPLER END)
    SN# 0M111208 & Up
  • 21
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 22
    25-35027 O-RING, (1.046)
    O-RING, (1.046)
  • 23
    393831 SOCKET, Center
    SN# 0M111207 & Below
    SOCKET, Center
    SN# 0M111207 & Below
  • 23
    865503T SOCKET
    SN# 0M111208 & Up
    SOCKET
    SN# 0M111208 & Up
  • 24
    75832T1 CROSS AND BEARING
    SN# 0M111207 & Below
    CROSS AND BEARING
    SN# 0M111207 & Below
  • 24
    865496A02 CROSS AND BEARING
    SN# 0M111208 & Up
    CROSS AND BEARING
    SN# 0M111208 & Up
  • 25
    12784 YOKE (GEAR END)
    SN# 0M111207 & Below
    YOKE (GEAR END)
    SN# 0M111207 & Below
  • 25
    864245T YOKE (GEAR END)
    SN# 0M111208 & Up
    YOKE (GEAR END)
    SN# 0M111208 & Up
  • 26
    11-92004 RING NUT
    RING NUT
  • 27
    86779A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 28
    26-807006 SEAL, Oil
    SEAL, Oil
  • 29
    12-41613 WASHER
    WASHER
  • 30
    25-861844 O-RING
    O-RING
  • 31
    86780 RING
    RING
  • 32
    31-8M0103472 BEARING ASSEMBLY, Tapered Roller
    SN# 0M198372 & Below
    BEARING ASSEMBLY, Tapered Roller
    SN# 0M198372 & Below
  • 32
    31-8M0104358 BEARING ASSEMBLY, Tapered Roller
    SN# 0M198373 & Up
    BEARING ASSEMBLY, Tapered Roller
    SN# 0M198373 & Up
  • 33
    43-883473A2 GEAR SET, (32/27)
    (SEE STERNDRIVE UNIT CHART FOR APPLICATION)
    GEAR SET, (32/27)
    (SEE STERNDRIVE UNIT CHART FOR APPLICATION)
  • 33
    43-883476A2 GEAR SET, (29/27)
    (SEE STERNDRIVE UNIT CHART FOR APPLICATION)
    GEAR SET, (29/27)
    (SEE STERNDRIVE UNIT CHART FOR APPLICATION)
  • 33
    43-883479A2 GEAR SET, (30/23)
    (SEE STERNDRIVE UNIT CHART FOR APPLICATION)
    GEAR SET, (30/23)
    (SEE STERNDRIVE UNIT CHART FOR APPLICATION)
  • 34
    12-44539 WASHER
    WASHER
  • 35
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
  • 36
    97-821630Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 37
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 38
    13-35479 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 39
    15-888927028 SHIM, (.028)
    SN# 0M198373 & Up
    SHIM, (.028)
    SN# 0M198373 & Up
  • 39
    15-888927029 SHIM, (.029)
    SN# 0M198373 & Up
    SHIM, (.029)
    SN# 0M198373 & Up
  • 39
    15-888927030 SHIM, (.030)
    SN# 0M198373 & Up
    SHIM, (.030)
    SN# 0M198373 & Up
  • 39
    15-888927031 SHIM, (.031)
    SN# 0M198373 & Up
    SHIM, (.031)
    SN# 0M198373 & Up
  • 39
    15-888927032 SHIM, (.032)
    SN# 0M198373 & Up
    SHIM, (.032)
    SN# 0M198373 & Up
  • 39
    15-888927033 SHIM, (.033)
    SN# 0M198373 & Up
    SHIM, (.033)
    SN# 0M198373 & Up
  • 39
    15-888927034 SHIM, (.034)
    SN# 0M198373 & Up
    SHIM, (.034)
    SN# 0M198373 & Up
  • 39
    15-888927035 SHIM, (.035)
    SN# 0M198373 & Up
    SHIM, (.035)
    SN# 0M198373 & Up
  • 39
    15-888927036 SHIM, (.036)
    SN# 0M198373 & Up
    SHIM, (.036)
    SN# 0M198373 & Up
  • 39
    15-888927037 SHIM, (.037)
    SN# 0M198373 & Up
    SHIM, (.037)
    SN# 0M198373 & Up
  • 39
    15-888927038 SHIM, (.038)
    SN# 0M198373 & Up
    SHIM, (.038)
    SN# 0M198373 & Up
  • 39
    15-888927039 SHIM, (.039)
    SN# 0M198373 & Up
    SHIM, (.039)
    SN# 0M198373 & Up
  • 39
    15-888927040 SHIM, (.040)
    SN# 0M198373 & Up
    SHIM, (.040)
    SN# 0M198373 & Up
  • -
    26-16709A2 SEAL KIT
    SEAL KIT
