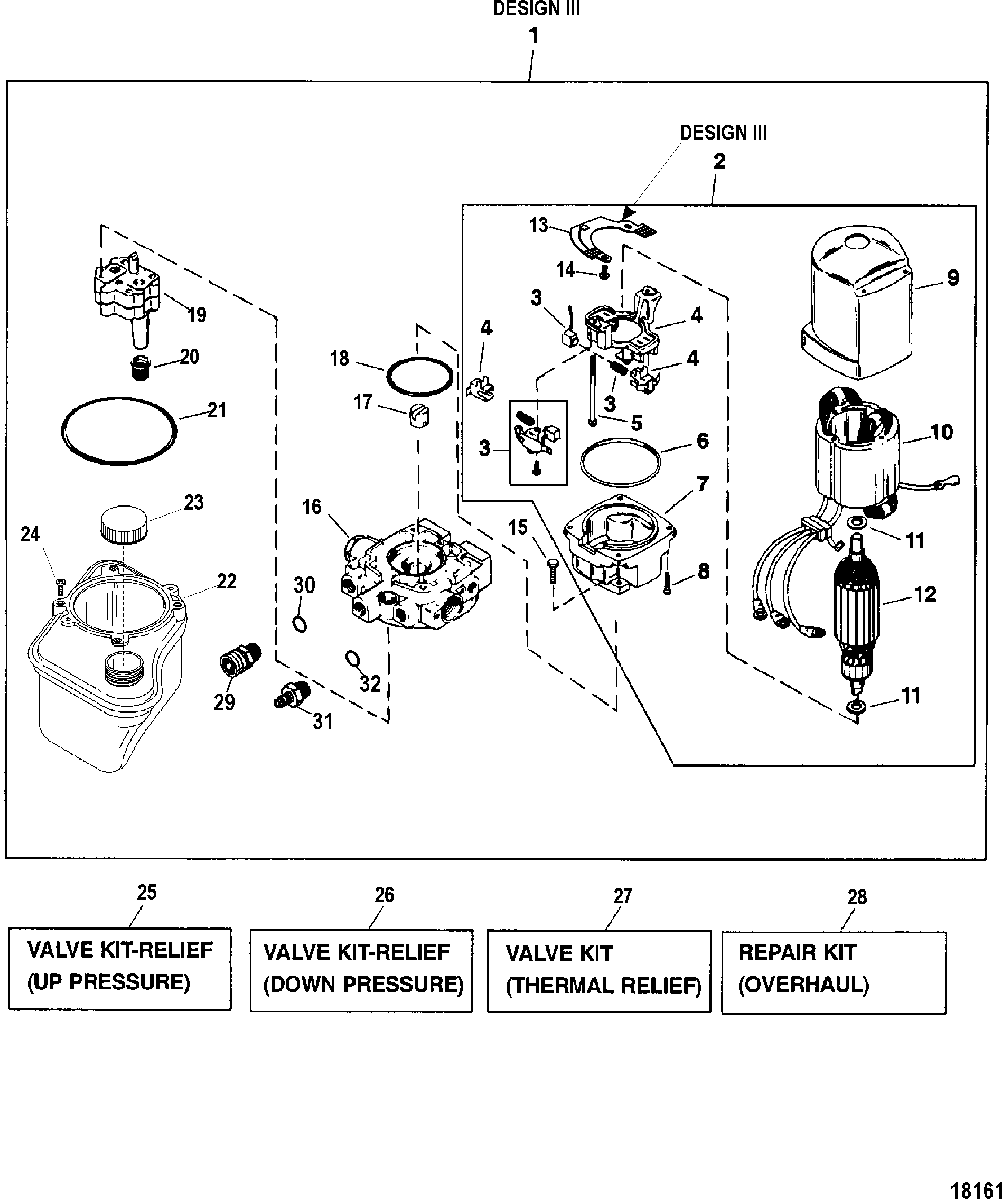

PUMP/MOTOR(Top Mount Reservoir) (Design III - 14336A31) для Mercruiser - BRAVO THREE 0M100001 THRU 0W249999
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY
(Design III, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)PUMP/MOTOR ASSEMBLY
(Design III, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
2891736T MOTOR ASSEMBLY, Complete
(Design II, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)MOTOR ASSEMBLY, Complete
(Design II, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
3891737 BRUSH KITBRUSH KIT
-
4891738 HOLDER ASSEMBLY, BrushesHOLDER ASSEMBLY, Brushes
-
510-891739 SCREW, Brush HolderSCREW, Brush Holder
-
625-891740 O-RINGO-RING
-
7NSS NOT SOLD SEPARATE, End Cap AssemblyNOT SOLD SEPARATE, End Cap Assembly
-
810-891741 SCREWSCREW
-
9NSS NOT SOLD SEPARATE, Cover Assembly, With BearingNOT SOLD SEPARATE, Cover Assembly, With Bearing
-
10NSS NOT SOLD SEPARATE, Field And Frame AssemblyNOT SOLD SEPARATE, Field And Frame Assembly
-
11NSS NOT SOLD SEPARATE, Washer, ThrustNOT SOLD SEPARATE, Washer, Thrust
-
12NSS NOT SOLD SEPARATE, ArmatureNOT SOLD SEPARATE, Armature
-
13892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference FilterBOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
-
14NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
1510-823444 SCREWSCREW
-
16808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
17803852 COUPLINGCOUPLING
-
1825-89498 O-RING, Motor EndO-RING, Motor End
-
1918529 PUMP ASSEMBLY, Includes ScrewsPUMP ASSEMBLY, Includes Screws
-
2035-89496 FILTERFILTER
-
2125-17645 O-RING, Reservoir EndO-RING, Reservoir End
-
22883166A2 RESERVOIR KIT, With Filters And O-Ring
(Reference 20 And Reference 21)RESERVOIR KIT, With Filters And O-Ring
(Reference 20 And Reference 21) -
2336-865448A01 CAP, StandardCAP, Standard
-
2336-865448A01 CAP, Oil Reservoir, Rough Water ApplicationCAP, Oil Reservoir, Rough Water Application
-
2410-883167 SCREW, (#8-32)SCREW, (#8-32)
-
25812498A1 VALVE KIT, Relief, Up PressureVALVE KIT, Relief, Up Pressure
-
26812499A1 VALVE KIT, Relief, Down PressureVALVE KIT, Relief, Down Pressure
-
2795353A1 VALVE KIT, Relief, ThermalVALVE KIT, Relief, Thermal
-
2818545A1 REPAIR KITREPAIR KIT
-
2922-865413002 FITTING, Stainless Steel
SN# 0W100000 & UpFITTING, Stainless Steel
SN# 0W100000 & Up -
3025-891868 O-RING
SN# 0W100000 & UpO-RING
SN# 0W100000 & Up -
3122-865412001 FITTING, Stainless Steel
SN# 0W100000 & UpFITTING, Stainless Steel
SN# 0W100000 & Up -
3225-891868 O-RING
SN# 0W100000 & UpO-RING
SN# 0W100000 & Up
