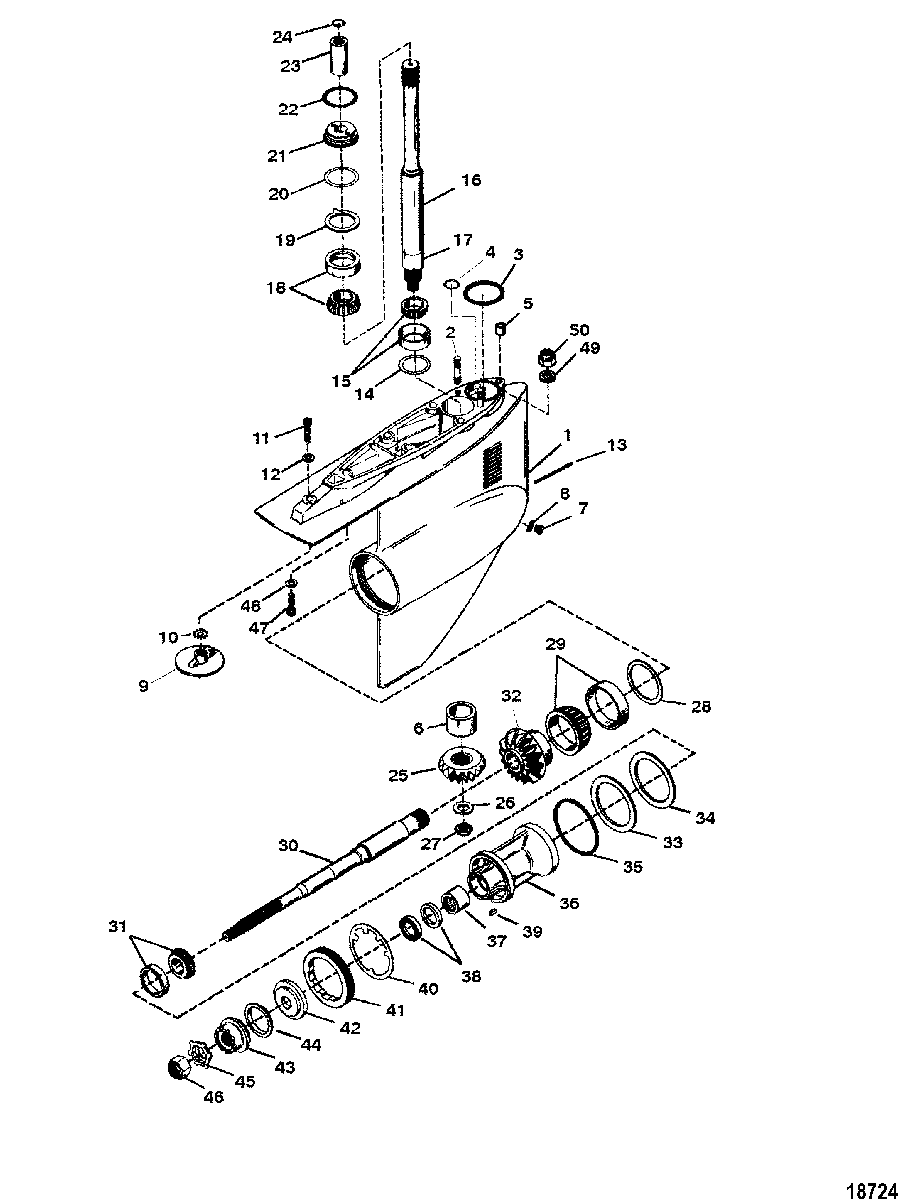

GEAR HOUSING(BRAVO II) для Mercruiser - BRAVO THREE 0F730000 THRU 0M100000

  • №
    Артикул
    Название
  • -
    1641-8294A19 GEAR HOUSING ASSEMBLY (1.50:1 - 1.65:1 Ratio)
    GEAR HOUSING ASSEMBLY (1.50:1 - 1.65:1 Ratio)
  • -
    1641-8294A16 GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio)
  • 1
    1641-8294A14 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 3
    25-33465 O-RING
    O-RING
  • 4
    26-455771 SEAL
    SEAL
  • 5
    26-805344 SEAL, (.625 Outside Diameter)
    SEAL, (.625 Outside Diameter)
  • 6
    31-86754T BEARING, Roller
    BEARING, Roller
  • 7
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 8
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 9
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 10
    13-806210 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    10-90084 SCREW, (.437-14 x 1.500)
    SCREW, (.437-14 x 1.500)
  • 12
    12-861854 WASHER
    WASHER
  • 13
    23-850186 TUBE
    TUBE
  • 14
    15-92914A1 SHIM KIT
    SHIM KIT
  • 15
    31-8M0103470 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 16
    45-888434A1 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 17
    31-815901 RACE, Bearing
    RACE, Bearing
  • 18
    31-8M0103473 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 19
    14-86739 TAB WASHER
    TAB WASHER
  • 20
    15-86749A1 SHIM KIT
    SHIM KIT
  • 21
    23-8M0046302 SPACER
    SPACER
  • 22
    25-20826 O-RING, (2.230 x .139)
    O-RING, (2.230 x .139)
  • 23
    88243A3 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 24
    53-88242 RING, Retaining
    RING, Retaining
  • 25
    43-41656T GEAR, Pinion (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    (16 TEETH)
    GEAR, Pinion (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    (16 TEETH)
  • 25
    43-827304T GEAR, Pinion (1.50:1 - 1.65:1 Ratio)
    (18 TEETH)
    GEAR, Pinion (1.50:1 - 1.65:1 Ratio)
    (18 TEETH)
  • 26
    12-86746 WASHER
    WASHER
  • 27
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 28
    15-55499A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 29
    31-8M0103475 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 30
    44-62820T1 PROPELLER SHAFT
    PROPELLER SHAFT
  • 31
    31-8M0103474 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 32
    43-41657T GEAR, DRIVE (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    (27 TEETH)
    GEAR, DRIVE (1.81:1 - 2.00:1 - 2.20:1 Ratio)
    (27 TEETH)
  • 32
    43-827303 GEAR, DRIVE (1.50:1 - 1.65:1 Ratio)
    (25 TEETH)
    GEAR, DRIVE (1.50:1 - 1.65:1 Ratio)
    (25 TEETH)
  • 33
    860323 RING, Thrust
    RING, Thrust
  • 34
    23-66093T RING, Load
    RING, Load
  • 35
    25-34821 O-RING
    O-RING
  • 36
    863913A04 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 37
    31-54042T BEARING, Roller
    BEARING, Roller
  • 38
    26-814242 SEAL, Oil, Fish Line Cutter
    SEAL, Oil, Fish Line Cutter
  • 38
    26-821092 SEAL, Oil
    SEAL, Oil
  • 39
    28-30281 KEY
    KEY
  • 40
    14-54167 TAB WASHER
    TAB WASHER
  • 41
    54163 RETAINER
    RETAINER
  • 42
    55074T THRUST HUB
    THRUST HUB
  • 43
    12-55073A2 WASHER ASSEMBLY
    WASHER ASSEMBLY
  • 44
    12-55072 WASHER
    WASHER
  • 45
    14-34817 TAB WASHER
    TAB WASHER
  • 46
    11-82671127 NUT, (1.0-14)
    NUT, (1.0-14)
  • 47
    10-90085 SCREW, (.4375-14 x 2.75)
    SCREW, (.4375-14 x 2.75)
  • 48
    13-47659 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 49
    12-861854 WASHER
    WASHER
  • 50
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • -
    26-76868A04 SEAL KIT
    SEAL KIT
