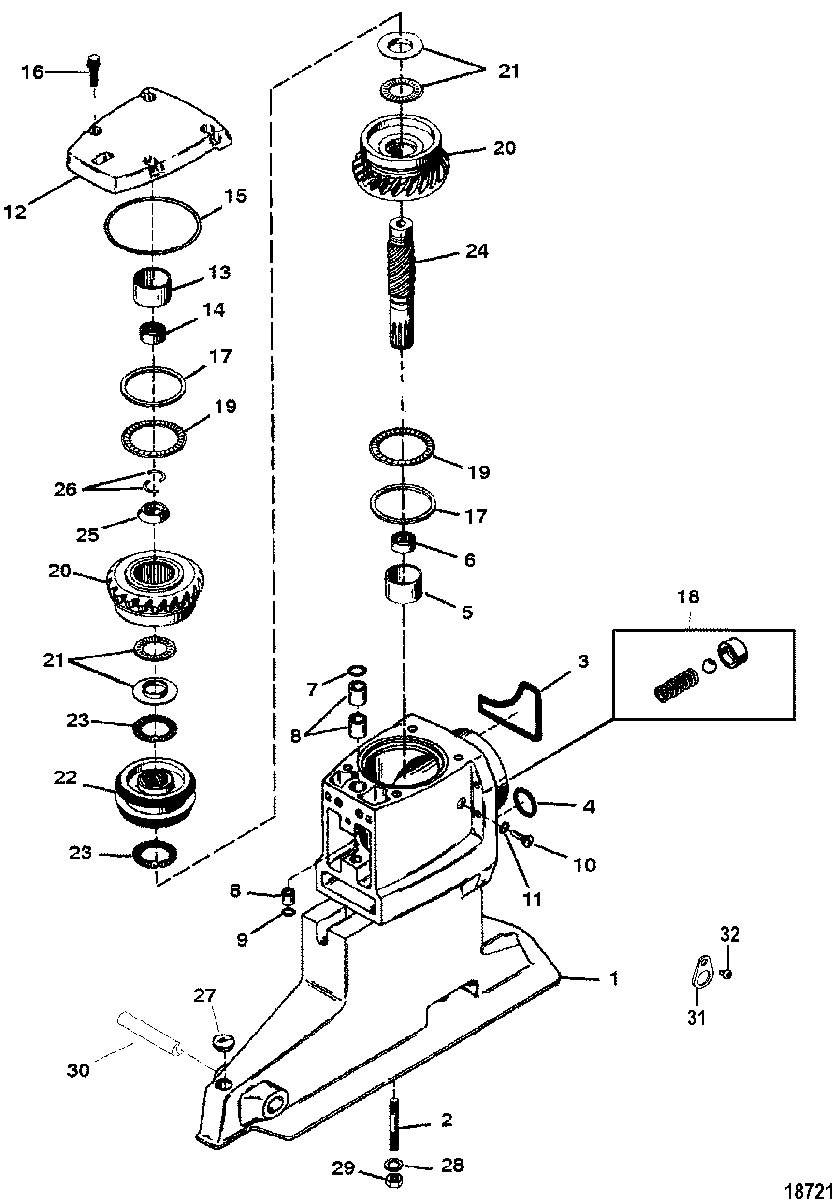

DRIVESHAFT HOUSING AND DRIVE GEARS(DIESEL ENGINE) для Mercruiser - BRAVO THREE 0F730000 THRU 0M100000

  • №
    Артикул
    Название
  • 1
    1589-8868G21 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 3
    16755Q1 SEAL
    SEAL
  • 4
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 5
    31-815900 BEARING
    BEARING
  • 6
    31-87156 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 7
    25-62705 O-RING
    O-RING
  • 8
    23-861209A1 BUSHING KIT
    BUSHING KIT
  • 9
    26-127091 SEAL, Oil
    SEAL, Oil
  • 10
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 11
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 12
    92068A6 TOP COVER
    TOP COVER
  • 13
    31-815900 BEARING
    BEARING
  • 14
    31-87156 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 15
    25-97387 O-RING
    O-RING
  • 16
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 17
    23-87560091 BEARING, Thrust (.091)
    (RED)
    BEARING, Thrust (.091)
    (RED)
  • 17
    23-87560094 BEARING, Thrust (.094)
    (LIGHT BLUE)
    BEARING, Thrust (.094)
    (LIGHT BLUE)
  • 17
    23-87560097 BEARING, Thrust (.097)
    (GREEN)
    BEARING, Thrust (.097)
    (GREEN)
  • 18
    24-17997A1 SPRING KIT
    SPRING KIT
  • 19
    31-86771 BEARING, Thrust
    BEARING, Thrust
  • 20
    43-883473A3 GEAR SET (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III)
    (27/32 TEETH)
    GEAR SET (1.50:1 BRAVO I & III, 1.65:1 BRAVO II & III, 2.00:1 BRAVO II & III)
    (27/32 TEETH)
  • 20
    43-883476A3 GEAR SET (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III)
    (27/29 TEETH)
    GEAR SET (1.36:1 BRAVO I & III, 1.50:1 BRAVO II, 1.81:1 BRAVO II & III)
    (27/29 TEETH)
  • 20
    43-883479A3 GEAR SET (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III)
    (23/30 TEETH)
    GEAR SET (1.65:1 BRAVO I, 2.20:1 BRAVO II & III, 2.43:1 BRAVO III)
    (23/30 TEETH)
  • 21
    31-86768A2 BEARING ASSEMBLY, Thrust
    BEARING ASSEMBLY, Thrust
  • 22
    52-807375A2 CLUTCH ASSEMBLY
    (Refer to Service Bulletin 2001-17 for replacement parts)
    CLUTCH ASSEMBLY
    (Refer to Service Bulletin 2001-17 for replacement parts)
  • 23
    24-93505 SPRING
    SPRING
  • 24
    45-812773T DRIVESHAFT
    DRIVESHAFT
  • 25
    23-86770 COLLAR
    COLLAR
  • 26
    97351 KEEPER
    KEEPER
  • 27
    19-824928001 PLUG
    PLUG
  • 28
    12-861854 WASHER
    WASHER
  • 29
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 30
    808006 INSERT, Trim Adjustment
    INSERT, Trim Adjustment
  • 31
    8M2001743 PLATE, Ground
    PLATE, Ground
  • 32
    10-8M0113176 SCREW, (#10-24 x .38)
    SCREW, (#10-24 x .38)
  • -
    26-16709A2 SEAL KIT
    SEAL KIT
