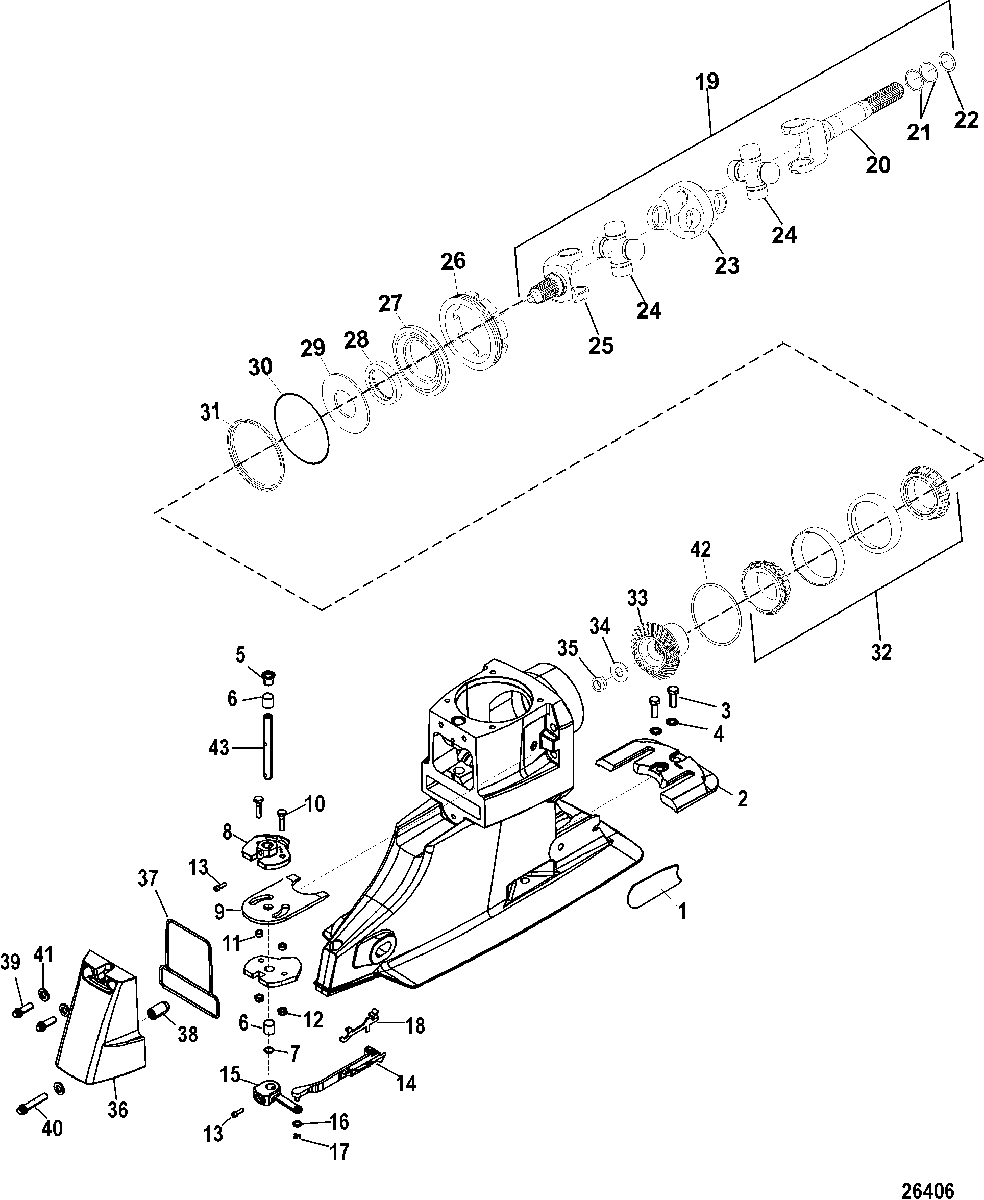

Universal Joint and Shift Components для Mercruiser - BRAVO ONE 0W250000 & Up
-
№АртикулНазвание
-
-1589-865440H50 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) -
-1500-866458J01 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) -
-1589-865440H51 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) -
-1500-866458J02 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) -
-1589-865440H52 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) -
-1500-866458J03 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) -
-1589-865440H01 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) -
-1500-866458J04 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) -
-1589-865440H02 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-III 1.50:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-III 1.50:1 Ratio) -
-1589-865440H72 HOUSING, Driveshaft - BasicHOUSING, Driveshaft - Basic
-
-1500-866458J00 HOUSING, Driveshaft - Basic
(SEACORE)HOUSING, Driveshaft - Basic
(SEACORE) -
1805261A1 WEAR PAD KITWEAR PAD KIT
-
297-821630Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
310-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
413-35479 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
519-865866 PLUG, Shift Shaft Oil SealPLUG, Shift Shaft Oil Seal
-
623-861209A1 BUSHING KITBUSHING KIT
-
726-127091 SEALSEAL
-
8806552A1 YOKE AND CAM ASSEMBLYYOKE AND CAM ASSEMBLY
-
9806552 YOKE, ShifterYOKE, Shifter
-
1010-805733 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
1123-12706 SPACER, (.194 x .375)SPACER, (.194 x .375)
-
1211-8267139 NUT, (.250-28)NUT, (.250-28)
-
1310-865900 SCREW, (.250-28 x .930)SCREW, (.250-28 x .930)
-
14861175A2 SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
BI 1.36, BII 1.50, BIII 1.36 & 1.50SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
BI 1.36, BII 1.50, BIII 1.36 & 1.50 -
14861175A03 SHIFT LINKAGE ASSEMBLY, Low Bump Shift Lever
BI 1.50 & 1.65, BII 1.65, 1.81, 2.00 & 2.20, BIII 1.65, 1.81, 2.00, 2.20, 2.43SHIFT LINKAGE ASSEMBLY, Low Bump Shift Lever
BI 1.50 & 1.65, BII 1.65, 1.81, 2.00 & 2.20, BIII 1.65, 1.81, 2.00, 2.20, 2.43 -
15NSS NOT SOLD SEPARATE, SHIFT LEVERNOT SOLD SEPARATE, SHIFT LEVER
-
1612-20583 WASHERWASHER
-
1718-26953 COTTER PINCOTTER PIN
-
1886776 LATCHLATCH
-
19864244A2 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
20864244A01 YOKE ASSEMBLY, Coupler EndYOKE ASSEMBLY, Coupler End
-
2125-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
2225-35027 O-RING, (1.046)O-RING, (1.046)
-
23865503T SOCKET, CenterSOCKET, Center
-
24865496A02 CROSS AND BEARINGCROSS AND BEARING
-
25864245T YOKE, Gear EndYOKE, Gear End
-
2611-92004 RING NUTRING NUT
-
2786779A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
2826-807006 SEAL, OilSEAL, Oil
-
2912-41613 WASHERWASHER
-
3025-861844 O-RINGO-RING
-
3186780 RINGRING
-
3231-8M0104358 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3343-883473A2 GEAR SET, (32/27), High Bump Sleeve
BIII 1.50, wear ring stamped HGEAR SET, (32/27), High Bump Sleeve
BIII 1.50, wear ring stamped H -
3343-883476A2 GEAR SET, (29/27), High Bump Sleeve
BI 1.36, BII 1.50, BIII 1.36, wear ring stamped HGEAR SET, (29/27), High Bump Sleeve
BI 1.36, BII 1.50, BIII 1.36, wear ring stamped H -
3343-883479A2 GEAR SET, (30/23), High Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43, wear ring stamped HGEAR SET, (30/23), High Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43, wear ring stamped H -
3343-8M0060003 GEAR SET, (32/27), Low Bump Sleeve
BI 1.50, BII 1.65 & 2.00, BIII 1.65 & 2.00GEAR SET, (32/27), Low Bump Sleeve
BI 1.50, BII 1.65 & 2.00, BIII 1.65 & 2.00 -
3343-8M0060004 GEAR SET, (29/27), Low Bump Sleeve
BII 1.81, BIII 1.81GEAR SET, (29/27), Low Bump Sleeve
BII 1.81, BIII 1.81 -
3343-8M0060005 GEAR SET, (30/23), Low Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43GEAR SET, (30/23), Low Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43 -
3412-44539 WASHERWASHER
-
3511-22339 NUT, (.625-18)NUT, (.625-18)
-
36865441A04 COVER ASSEMBLY, BackCOVER ASSEMBLY, Back
-
36866463A02 COVER ASSEMBLY, Back
(SEACORE)COVER ASSEMBLY, Back
(SEACORE) -
3712708 SEALSEAL
-
38865711A02 DETENT ASSEMBLYDETENT ASSEMBLY
-
3910-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
4010-87158 SCREW, (.375-16 x 1.875)SCREW, (.375-16 x 1.875)
-
4112-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(SEACORE)WASHER, (.390 x .625 x .062) Stainless Steel
(SEACORE) -
4215-888927028 SHIM, (.028)SHIM, (.028)
-
4215-888927029 SHIM, (.029)SHIM, (.029)
-
4215-888927030 SHIM, (.030)SHIM, (.030)
-
4215-888927031 SHIM, (.031)SHIM, (.031)
-
4215-888927032 SHIM, (.032)SHIM, (.032)
-
4215-888927033 SHIM, (.033)SHIM, (.033)
-
4215-888927034 SHIM, (.034)SHIM, (.034)
-
4215-888927035 SHIM, (.035)SHIM, (.035)
-
4215-888927036 SHIM, (.036)SHIM, (.036)
-
4215-888927037 SHIM, (.037)SHIM, (.037)
-
4215-888927038 SHIM, (.038)SHIM, (.038)
-
4215-888927039 SHIM, (.039)SHIM, (.039)
-
4215-888927040 SHIM, (.040)SHIM, (.040)
-
4312711 SHAFTSHAFT
-
-26-16709A2 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
